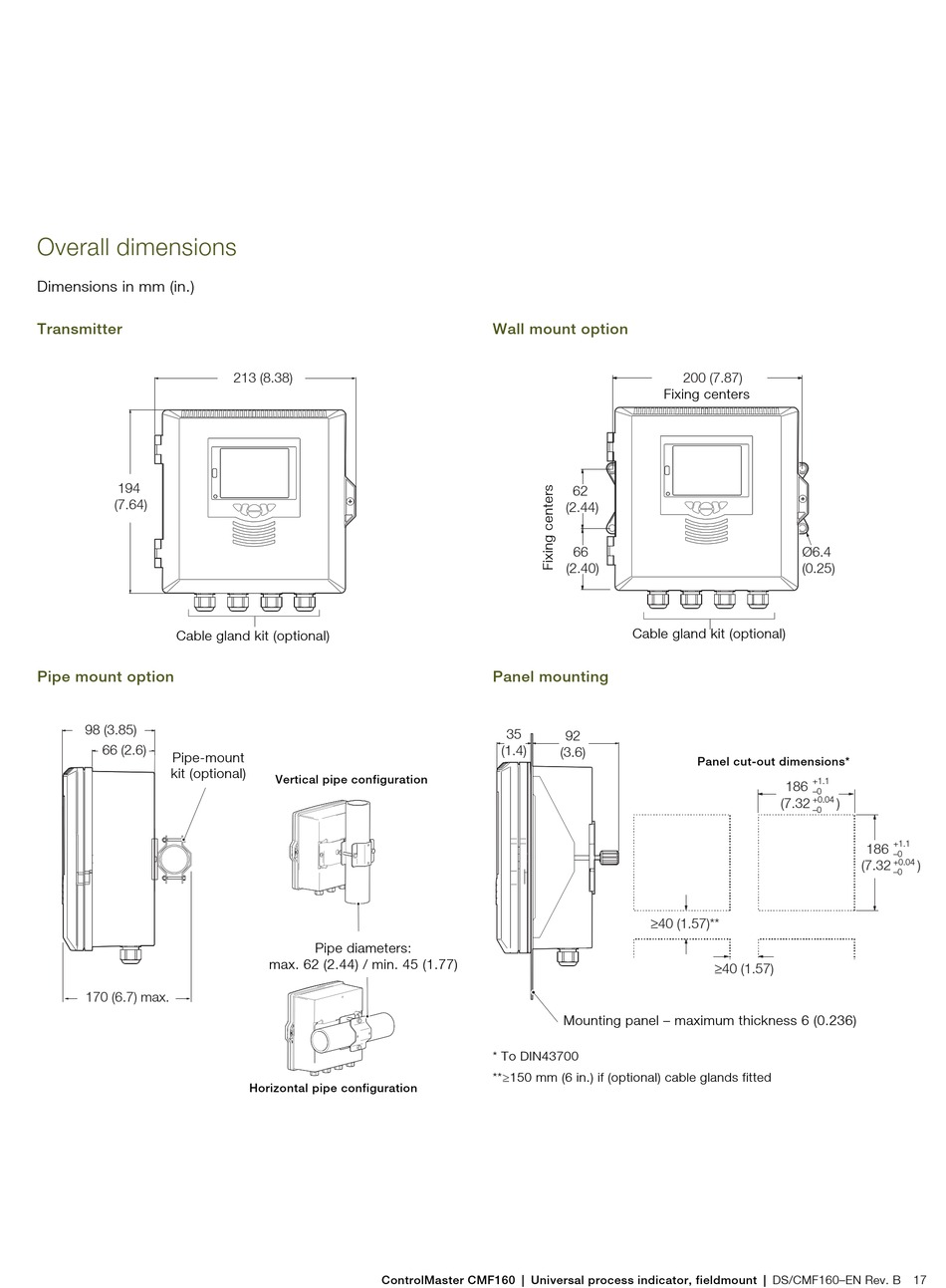

Overall dimensions
Dimensions in mm (in.)
Transmitter
194
(7.64)
Cable gland kit (optional)
Pipe mount option
98 (3.85)
66 (2.6)
Pipe-mount
kit (optional)
170 (6.7) max.
213 (8.38)
Vertical pipe configuration
Pipe diameters:
max. 62 (2.44) / min. 45 (1.77)
Horizontal pipe configuration
ControlMaster CMF160 | Universal process indicator, fieldmount | DS/CMF160–EN Rev. B
Wall mount option
Fixing centers
62
(2.44)
66
(2.40)
Cable gland kit (optional)
Panel mounting
35
92
(1.4)
(3.6)
≥40 (1.57)**
Mounting panel – maximum thickness 6 (0.236)
* To DIN43700
**150 mm (6 in.) if (optional) cable glands fitted
200 (7.87)
Ø6.4
(0.25)
Panel cut-out dimensions*
+1.1
186
–0
+0.04
(7.32
)
–0
(7.32
≥40 (1.57)
+1.1
186
–0
+0.04
)
–0
17
