Summary of Contents for Vido WD050210450

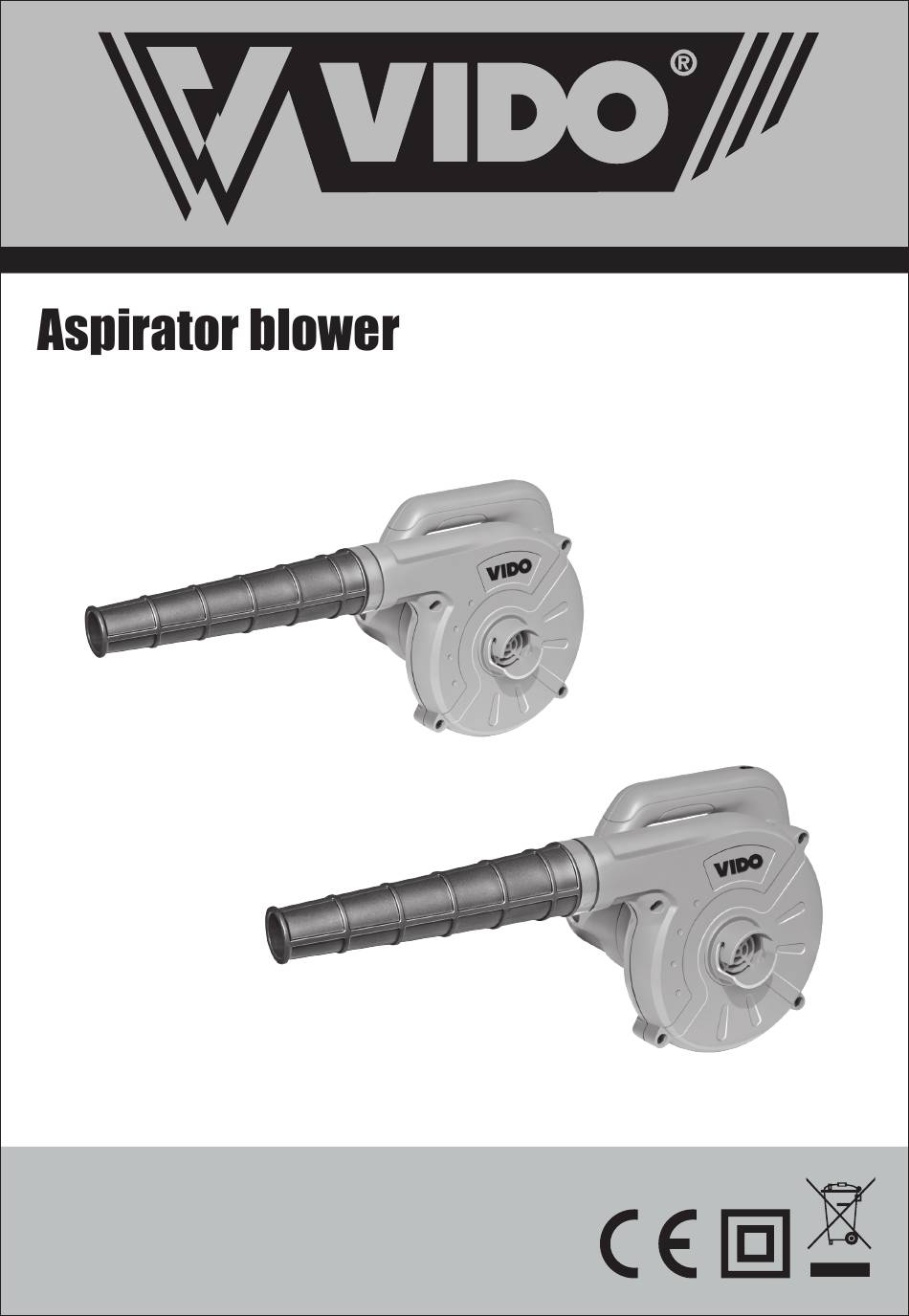

- Page 1 WD050210450 WD050210680 450W/680W...
- Page 2 WD050210450/WD050210680 Thank you for purchasing a VIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD050210450/WD050210680...
-
Page 4: Component List
450W/680W ASPIRATOR BLOWER COMPONENT LIST 1) Nozzle 2) Handle 3) Speed control (Only for WD050210680) 4) Air intake 5) On/off switch 6) Lock-on button for on/off switch 7) Dust bag 8) Caps for carbon brushes NORMAL ACCESSORIES 1) Nozzle: 2) Dust bag: 3) Spare carbon brush: 1set We recommend that you purchase your accessories from the same store that sold you the tool. -
Page 5: General Power Tool Safety Warnings
450W/680W ASPIRATOR BLOWER GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 6 450W/680W ASPIRATOR BLOWER f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 7: Double Insulation
450W/680W ASPIRATOR BLOWER fan breakage. 11) When an extension cord is required you must ensure it has the correct ampere rating for your power tool and that it is in a safe electrical condition. Fully unwind extension cords to avoid potential overheating. -
Page 8: Technical Data
450W/680W ASPIRATOR BLOWER TECHNICAL DATA Model WD050210450 WD050210680 Voltage 110-120V AC 220-240V AC 110-120V AC 220-240V AC Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz Power input 450W 450W 680W 680W No load speed 14000/min 14000/min 6000-16000/min 6000-16000/min Max. air volume 3000L/min 3.0m... -
Page 9: Maintenance
450W/680W ASPIRATOR BLOWER 2) After the bag fills with dust, empty the contents of the dust bag into a dust bin by releasing the zipper. WORKING HINTS FOR YOUR POWER TOOL 1. During “blowing” operation, take care that no debris/ impurities can be drawn into the air intake. 2. - Page 10 450W/680W ASPIRATOR BLOWER 450W ASPIRATOR BLOWER EXPLOSIVE VIEW 450W ASPIRATOR BLOWER PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Nozzle Handle cover Locating ring Switch Left air blower housing Screw Screw Cover Motor housing Label Right air blower housing Brush holder Screw Carton brush Washer Brush holder cap...
- Page 11 450W/680W ASPIRATOR BLOWER 680W ASPIRATOR BLOWER PART LIST 680W ASPIRATOR BLOWER PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Nozzle Handle cover Locating ring Switch Left air blower housing Screw Screw Speed control Motor housing Label Right air blower housing Brush holder Screw Carton brush Washer...
- Page 12 WD050210450/WD050210680...
- Page 13 WD050210450/WD050210680...
- Page 14 WD050210450/WD050210680...
- Page 15 WD050210450/WD050210680...
- Page 16 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
