Function / Application - LaserLiner PipeControlMobile-Camera Operating Instructions Manual

!
Read the operating instructions and the enclosed brochure „Guarantee and additional notices"
completely. Follow the instructions they contain. Safely keep these documents for future reference.

Function / Application

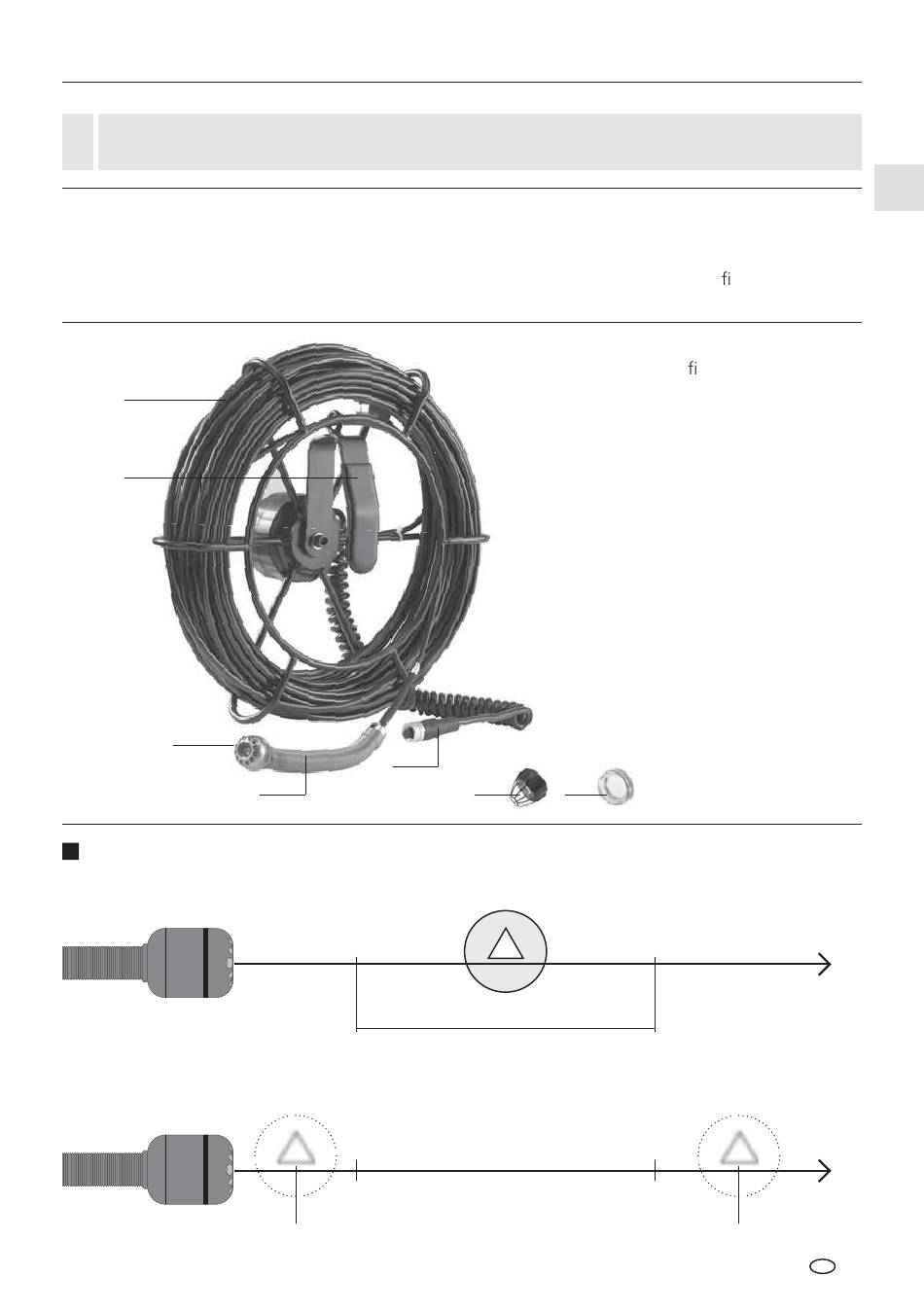

The PipeControlMobile-Camera is a camera unit which can be connected to the VideoControl-Master
base unit. The reel with a cable length of 20 m allows for inspections over great distances. Working with
the base unit, colour video images are sent to the LCD for inspecting all places that are dif cult to access
such as pipelines, canals, ventilation pipes and exhaust gas systems.
1
2
3
Focal depth
1
The PipeControlMobile-Camera delivers sharp images in a range between 5 and 60 cm from
the camera head.
Objects well beyond the focus range may appear blurred.
PipeControlMobile-Camera
5
4
< 5 cm
1
2
3
4
5
6
7
6 7
5 - 60 cm
Glass- bre reinforced
push rod, 20 m
Handle
Camera head with
12 high-power LEDs
Flexible coil spring
Control cable
CameraProtector 25 mm
SafetyLens
> 60 cm
GB 05
