Launch Creader V II+ Quick Start Manual page 3

2. Launch the program when installed, a screen similar to Figure
2 will appear:
3. In Figure 1, type in the Product Serial Number located at the
back of the tool, and click Update to jump to the registration
page. Enter the following information and click Submit (refer to
Figure 2).
(If you need the Register Code, please refer to steps 4~7.)
(If you have the Register Code, directly proceed to step 8.)
4. The Register Code can be found in your tool. Connect one
end of the supplied USB cable to your tool, and the other end
on the computer.
5. After the tool has powered up and entered the main menu
screen, move the highlight bar on the Help icon (see Figure 3)
and press the [OK] button.
2

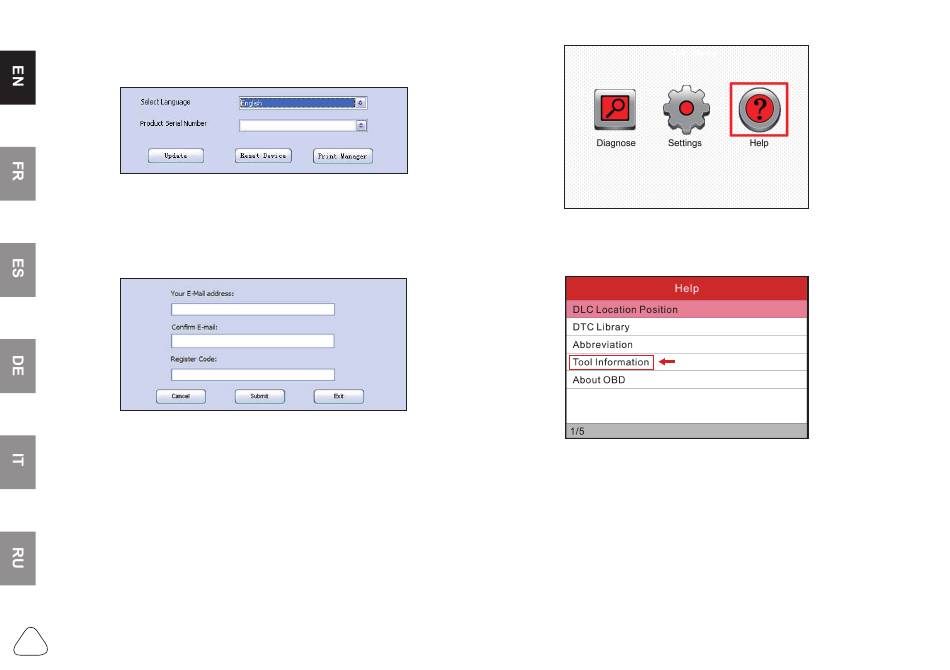

Figure 1
Figure 2
Figure 3
6. Select Tool Information (refer to Figure 5) and press the
[OK] to enter.
Figure 4
7. The Register Code shown in Figure 6 is the Register Code
needed in step 3.
