1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the PROGRAMMABLE THERMOSTAT! Please read the manual thoroughly before bringing this
device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

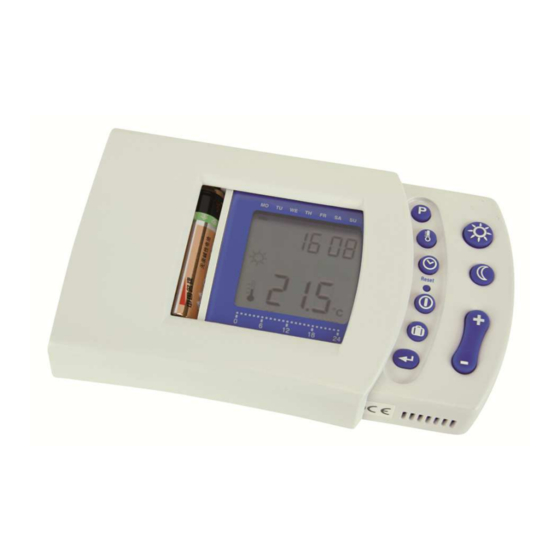

The digital programmable thermostat is battery operated. It has 7-days preset programs to suit most of the family's
style. It can be easily adjusted to fit your own living style with few programming steps. The thermostat is operated by
2 X AA size batteries. It can therefore replay any mechanical standard 2-wire thermostat. Note that the maximal
resistive load is 5 amps.
2. Installation
If you connect the thermostat to a 230VAC system, make sure the power is switched off and that only a person with
good electrical knowledge does the installation. If you have a mechanical thermostat commented with 2 wires, just
take away the old thermostat and replace it with this thermostat. Connect the 2 wires to the terminals as shown in
figure 1 to 3. If you do not have a previous thermostat that you wish to replace, install a 2-wire cable to the heating
system (see fig. 1 to 3) or consult with your professional electrician. Before installing thermostat, install the
thermostat on the location of the old thermostat:
406
406 – PROGRAMMABLE THERMOSTAT
