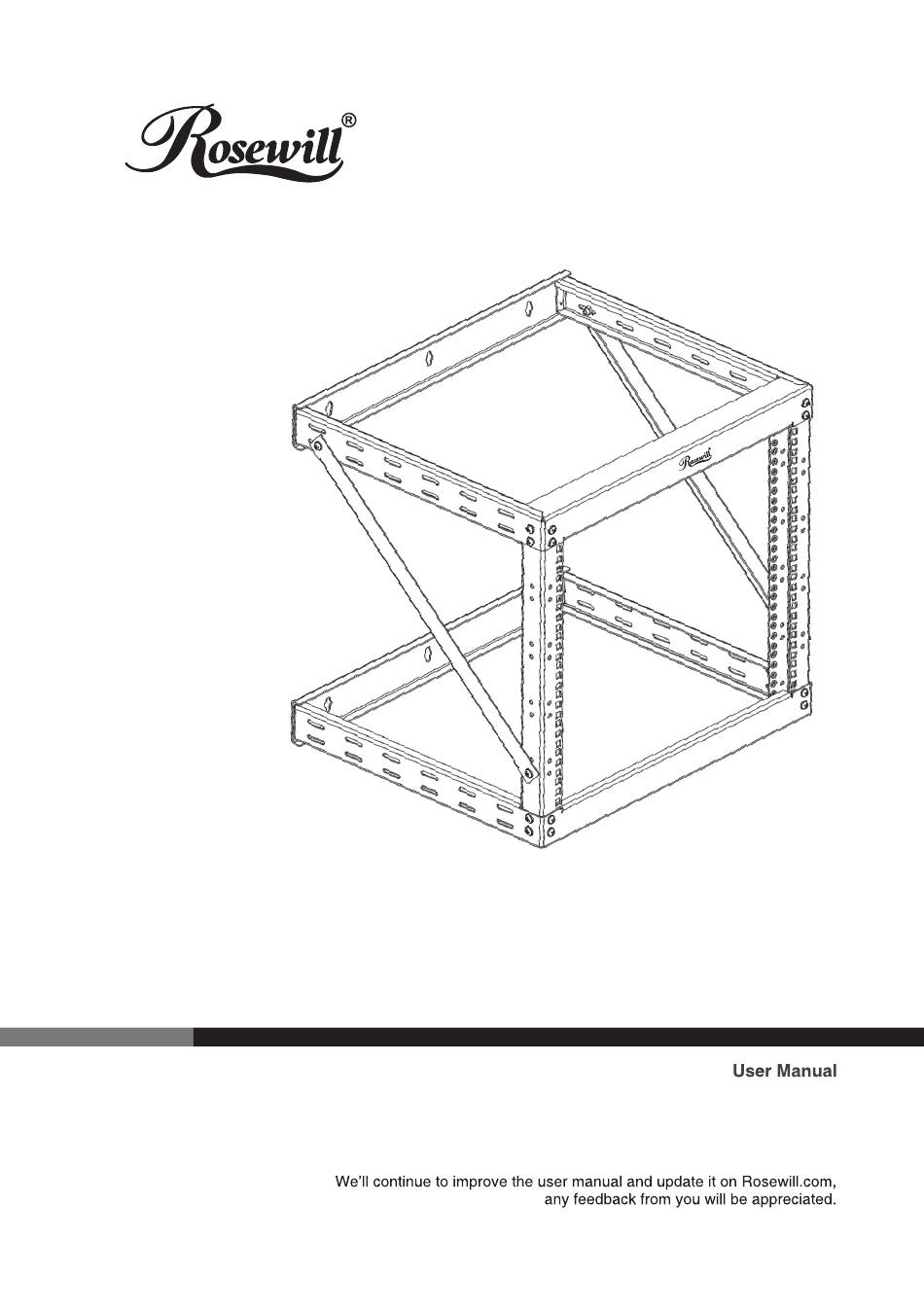

- Page 1 Wall-Mounted 2-Post Open Frame Rack Series RSR-2P6U001 / RSR-2P9U001 RSR-2P12U002...
- Page 3 RSR-2P6U001 RSR-2P9U001 Wall-Mounted 2-Post Open Frame Rack Series RSR-2P12U002 Qty.(pcs) Name 1.1 Rack Components ① Top or Bottom Panel Frame ② Vertical Mounting Dual Rails ③ Right or Left-Side Support Strap 1.2 Rack Assembly Hardwares ④ M6x12mm Phillips Head Screws ⑤...
- Page 4 RSR-2P6U001 RSR-2P9U001 Wall-Mounted 2-Post Open Frame Rack Series RSR-2P12U002 WARNING:Do not attempt to mount the rack to the wall with equipment mounted to the rack. Insert one end of the vertical mounting rails into the corners of the bottom panel...
- Page 5 RSR-2P6U001 RSR-2P9U001 Wall-Mounted 2-Post Open Frame Rack Series RSR-2P12U002 Attached the right-side and left-side support straps by securing 4 of the M6x12mm Step Phillips head screws and M6 nut to the top panel frame and vertical mounting rails. Congratulations! You have finished the installation of the wall mounted 2-Post open frame rack.
- Page 6 RSR-2P6U001 / RSR-2P9U001 / RSR-2P12U002...
