- Page 1 Gaming Power Supply Series Quick User Guide...
- Page 3 Electronic Specifications ........03 Connectors ............04 Installation ............04 Safety & Warning ..........05 Troubleshooting ............ 05 Thank you for purchasing a Rosewill Power Supply Please read the instruction manual before using and retain it for your future reference.

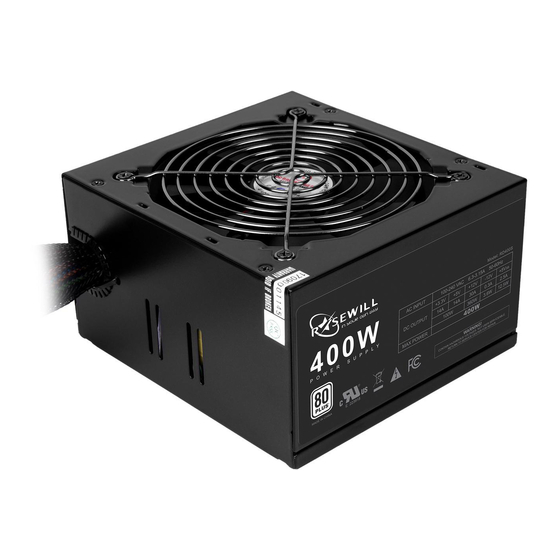

- Page 4 Gaming Power Supply RD Series Introduction Rosewill is the platform of choice for avid PC gamers and the Rosewill RD Power Supply series is built to the highest quality standard and delivers the ultimate performance for enthusiasts. Product Features • 80 PLUS Certified •...
- Page 5 Gaming Power Supply RD Series Electronic Specifications Model No. : RD400S AC Input Model No. DC Output +3.3V +12V -12V Voltage Current Max Output 0.3A 2.5A Current 100V 6.3A RD400S Combined 100W 360W 3.6W 12.5W 240V 3.15A Wattage Total Output 400W Model No.
- Page 6 Gaming Power Supply RD Series Connectors RD Series Cable 20+4 PIN 4 PIN 8 PIN 6+2 PIN 4 PIN 4 PIN S-ATA Main Board PCI-E Molex Floppy Connector Connector Connector Connector Connector Connector Connector RD400S RD450S RD500S Installation If replacing an existing PSU in a system, you will first need to remove the old PSU.
- Page 7 Gaming Power Supply RD Series 4. Connect the 4+4 PIN (8 PIN) power cable to the mainboard. If your mainboard supports only 4 PIN jack, connect only the right side of the connector to the mainboard. Pin1 Pin5 Right +12V CPU power connector...
- Page 8 Technical Support Information techsupport@rosewill.com 1-800-575-9885 ---------------------------------------------------------------------------------- Thank you for purchasing a quality Rosewill product. Please register your product at : www.rosewill.com for complete warranty information and support for your product. RD Series_B...
