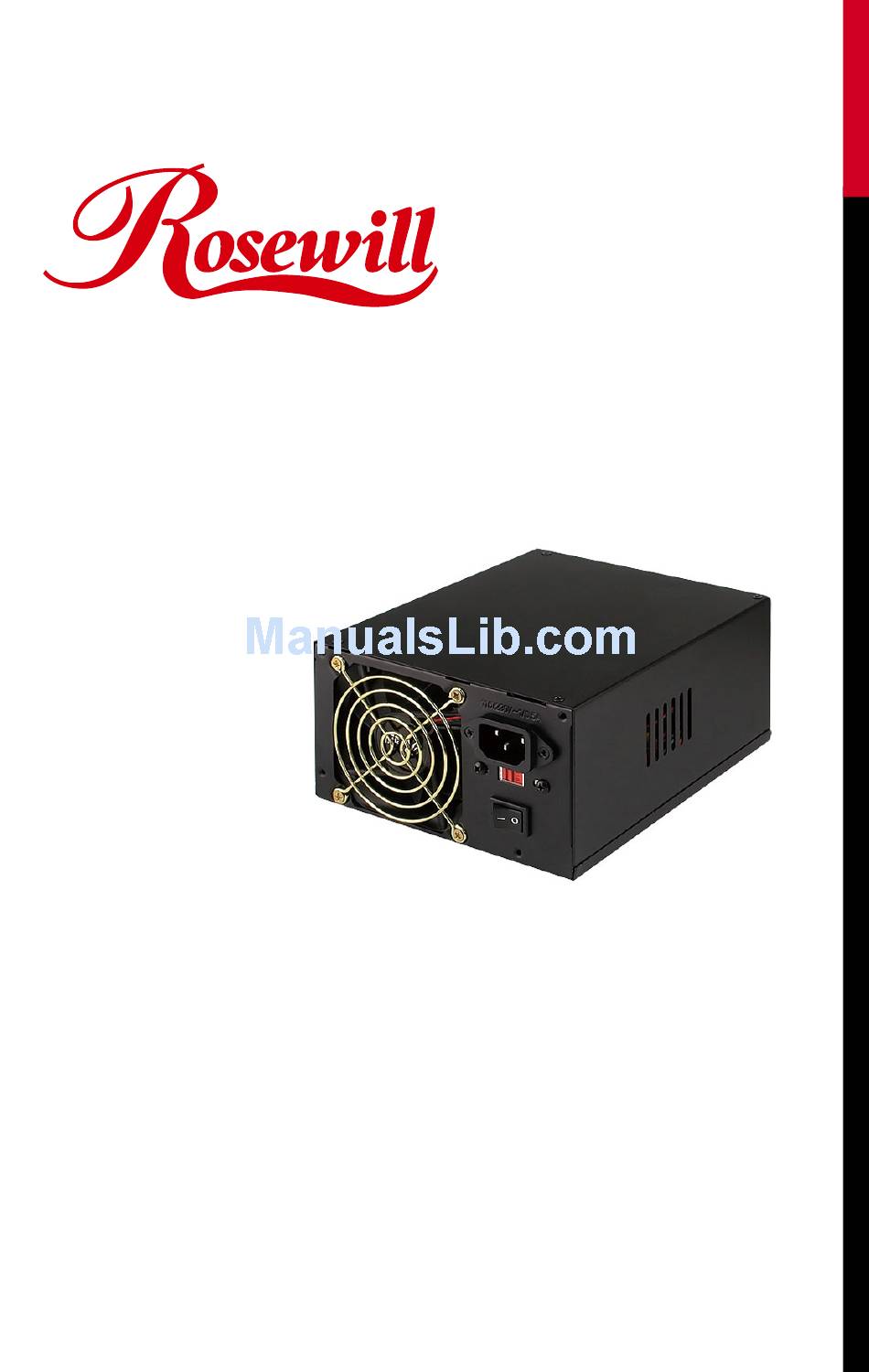

POWER SUPPLY VALUE Series USER Manual RV-380-2-FRB RV-430-2-FRB RV-480-2-FRB www.rosewill.com...
Page 2: Table Of Contents
4. 6 pin PCI-Express Connector 5. 4 pin Molex Peripheral Connector 6. 4 pin Floppy Connector 7. 5 pin SATA Connector 8. Before starting your system Information © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual P.10 P.11...
Page 3: Features Descriptions
POWER SUPPLY Value series User Manual Features Descriptions • ATX V2.01 Dual 12V Rails • Dual 80mm Fan • 20+4 pin Main Connector • 1 x PCI-Express Connector © 2004-2006 Rosewill Inc. All rights reserved by Rosewill...
Page 4: Speciļ¬cation
• 20+4 pin Main Connector x 1 • 6 pin PCI-Express Connector x 1 • 5 pin SATA Connector x 2 © 2004-2006 Rosewill Inc. All rights reserved by Rosewill • 4 pin 12V Connector x 1 • 4 pin Molex Peripheral Connector X 6 •...
Page 5
• 20+4 pin Main Connector x 1 • 6 pin PCI-Express Connector x 1 • 5 pin SATA Connector x 2 © 2004-2006 Rosewill Inc. All rights reserved by Rosewill • 4 pin 12V Connector x 1 • 4 pin Molex Peripheral Connector X 8 •...
Page 6
RV480-2-FRB Voltage +3.3V +5V +12V1 +12V2 -12V MAX.Current MAX.Watt 150W Total Watt Regulation ±5% ±5% ±5% Noise & Ripple (mV) © 2004-2006 Rosewill Inc. All rights reserved by Rosewill 115V 230V 6.0A(RMS) 4.0A(RMS) 7.0A(RMS) 4.5A(RMS) 8.0A(RMS) 5.0A(RMS) +12V1 +12V2 -12V 0.6A...
Page 7: Safety Standards
Input to ground : 15KVac/10mA 3 second Input to output : 15KVac/10mA 3 second Insulation resistance Input to ground : Min 50M Input to output : Min 50M Reliability MTBF : 50000 hours at 25°c ambient temperature © 2004-2006 Rosewill Inc. All rights reserved by Rosewill...
Page 8: Installation
1. Confi rm 20 pin or 24 pin main connector your motherboard needs before the installation. 2. 4 pin section here is used for switching between 20 & 24 pin only. © 2004-2006 Rosewill Inc. All rights reserved by Rosewill • Plug the 20 pin connector onto the motherboard.
Page 9: Pin 12V Connector
• The 6 pin PCI-Express connector for video card only. NOTE : Confi rm if your video card needing the 6 Pin PCI-Express connector or not before the installation. Not every video card needs it. © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
Page 10: Pin Molex Peripheral Connector
• The 4 pin Floppy connectors used for Floppy disk or Zip drives. 7. 5 pin SATA Connector • 5 pin SATA connector used for SATA HDD and Optical Drive. © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
Page 11: Before Starting Your System
• Select the proper voltage setting. • Connect the power core to a power source. •Confi rm the power supply is on © 2004-2006 Rosewill Inc. All rights reserved by Rosewill • Attach the power core to the power supply User Manual...
Page 12: Information
If you have any question while using our products, please feel free to contact us at feedback@rosewill.com Support Phone Number: 800-575-9885 Support Email: techsupport@rosewill.com © 2004-2006 Rosewill Inc. All rights reserved by Rosewill...
Page 13
POWER SUPPLY Value series We also offer : • CASE 6AS5 • KEYBOARD RK028-SLV • COOLER Z3 © 2004-2006 Rosewill Inc. All rights reserved by Rosewill • ENCLOSURE RX353-S • ADD ON CARD RC209 • MOUSE RM048 www.rosewill.com User Manual...
Page 14
www.rosewill.com...
