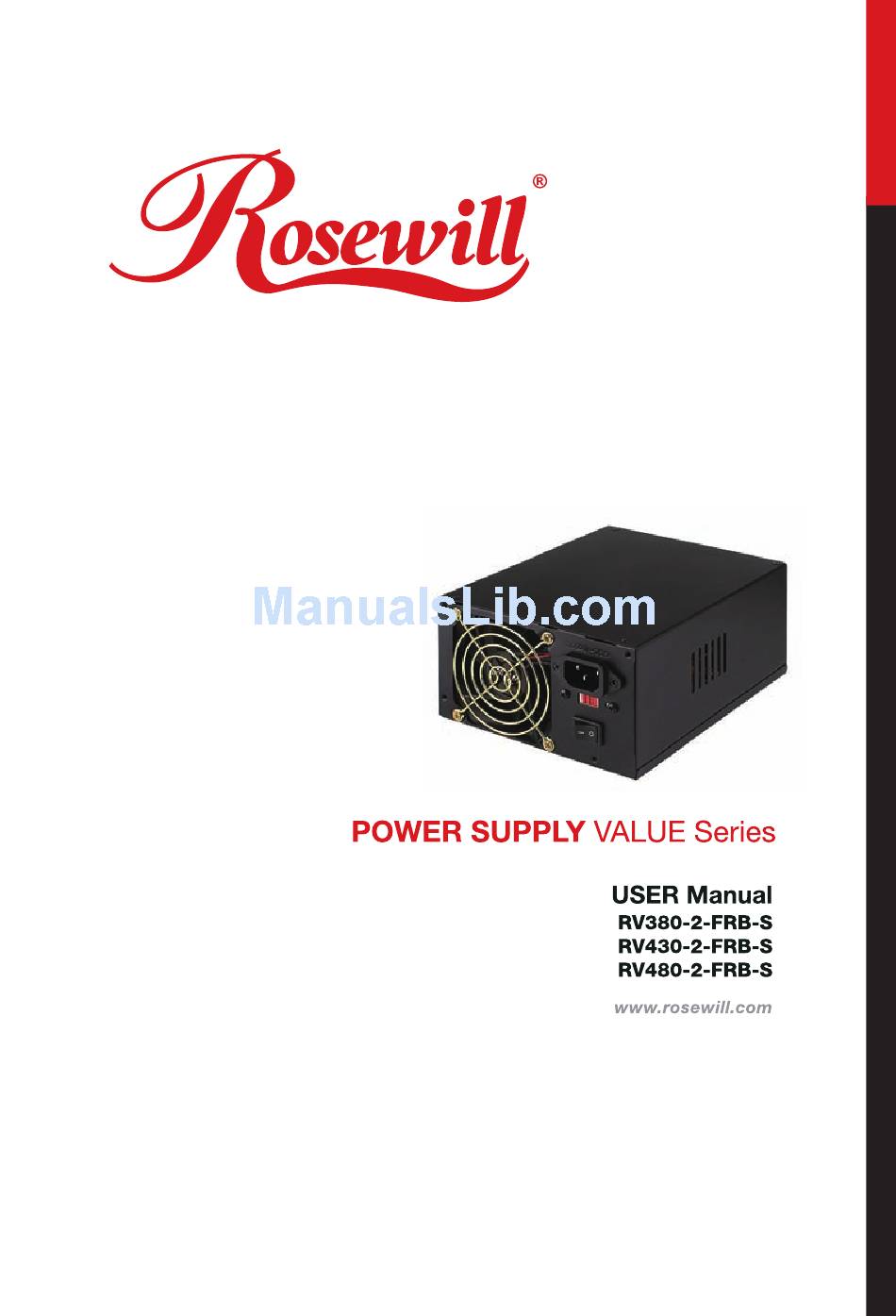

Rosewill RV380-2-FRB-S User Manual

Value series power supply
Hide thumbs

Advertisement

Advertisement

Table of Contents
loading

  Summary of Contents for Rosewill RV380-2-FRB-S

  • Page 2: Table Of Contents

    4. 6 pin PCI-Express Connector 5. 4 pin Molex Peripheral Connector 6. 4 pin Floppy Connector 7. 5 pin SATA Connector 8. Before starting your system Information © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual P.10 P.11...
  • Page 3: Features Descriptions

    • ATX V2.01 Dual 12V Rails • 20+4 pin Main Connector • 4/8-pin +12v and EPS Connector • Dual 80mm Fans • 1 x PCI-Express Connector • All cables with black mesh sleeving © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
  • Page 4: Specification

    • 4+4 pin Connector x 1 * 8 pin = +12V EPS Connector 4 pin = +12 V Connector • 4 pin Peripheral Connector X 6 • 4 pin Floppy Connector x 2 © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
  • Page 5 • 4+4 pin Connector x 1 * 8 pin =+12V EPS Connector 4 pin = +12 V Connector • 4 pin Peripheral Connector X 8 • 4 pin Floppy Connector x 2 © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
  • Page 6 4.5A(RMS) 5.0A(RMS) -12V +5VSB 0.6A 233W 7.2W 380W ±5% ±10% ±5% -12V +5VSB 0.6A 273W 7.2W 430W ±5% ±10% ±5% -12V +5VSB 0.6A 313W 7.2W 480W ±5% ±10% ±5% © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
  • Page 7: Safety Standards

    Input to ground : 15KVac/10mA 3 second Input to output : 15KVac/10mA 3 second Insulation resistance Input to ground : Min 50M Input to output : Min 50M Reliability MTBF : 50000 hours at 25°c ambient temperature © 2004-2006 Rosewill Inc. All rights reserved by Rosewill...
  • Page 8: Installation

    2. 4 pin section here is used for switching between 20 & 24 pin only. • Attach the 4 pin section to have a 24 pin main connector • Plug the 24 pin connector onto the motherboard. © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
  • Page 9: Pin 12V Connector

    2.4 pin here CAN NOT be used for the main connector.. • Combine two 4 pin connectors to have a 8 Pin EPS +12V connector • Plug the 8 pin EPS +12V connector onto the motherboard. © 2004-2006 Rosewill Inc. All rights reserved by Rosewill 8 pin User Manual...
  • Page 10: Pin Pci-Express Connector

    Not every video card needs it. 5. 4 pin Peripheral Connector • The 4 pin Molex Peripheral connector used for HDD, Optical Drive and other devices needing it. © 2004-2006 Rosewill Inc. All rights reserved by Rosewill...
  • Page 11: Pin Floppy Connector

    • The 4 pin Floppy connectors used for Floppy disk or Zip drives. 7. 5 pin SATA Connector • 5 pin SATA connector used for SATA HDD and Optical Drive. © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
  • Page 12: Before Starting Your System

    • Select the proper voltage setting. • Connect the power core to a power source. •Confi rm the power supply is on • Attach the power core to the power supply © 2004-2006 Rosewill Inc. All rights reserved by Rosewill User Manual...
