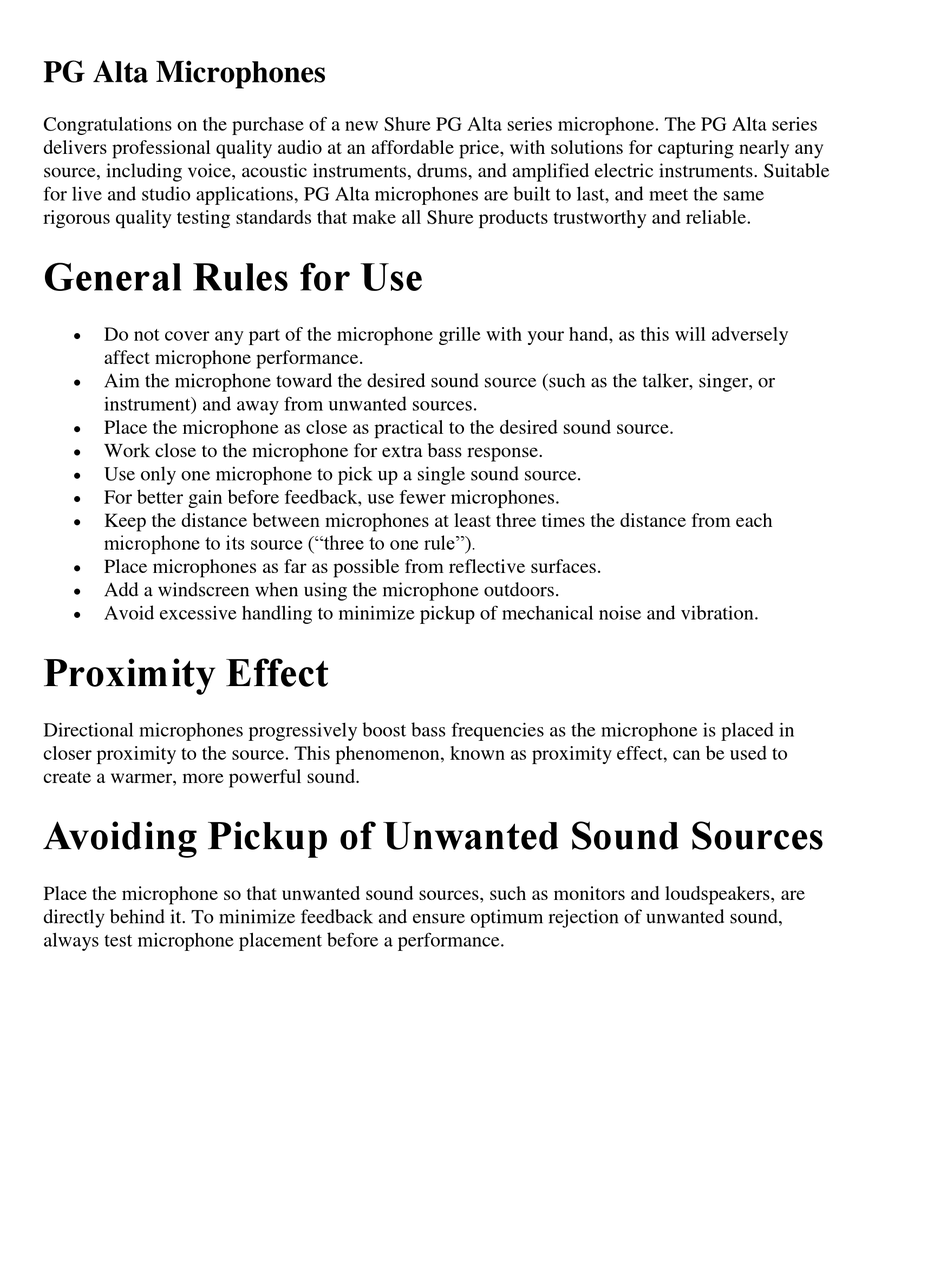

PG Alta Microphones
Congratulations on the purchase of a new Shure PG Alta series microphone. The PG Alta series
delivers professional quality audio at an affordable price, with solutions for capturing nearly any
source, including voice, acoustic instruments, drums, and amplified electric instruments. Suitable
for live and studio applications, PG Alta microphones are built to last, and meet the same
rigorous quality testing standards that make all Shure products trustworthy and reliable.

General Rules for Use

Do not cover any part of the microphone grille with your hand, as this will adversely
affect microphone performance.
Aim the microphone toward the desired sound source (such as the talker, singer, or
instrument) and away from unwanted sources.
Place the microphone as close as practical to the desired sound source.
Work close to the microphone for extra bass response.
Use only one microphone to pick up a single sound source.
For better gain before feedback, use fewer microphones.
Keep the distance between microphones at least three times the distance from each
microphone to its source ("three to one rule").
Place microphones as far as possible from reflective surfaces.
Add a windscreen when using the microphone outdoors.
Avoid excessive handling to minimize pickup of mechanical noise and vibration.

Proximity Effect

Directional microphones progressively boost bass frequencies as the microphone is placed in
closer proximity to the source. This phenomenon, known as proximity effect, can be used to
create a warmer, more powerful sound.

Avoiding Pickup of Unwanted Sound Sources

Place the microphone so that unwanted sound sources, such as monitors and loudspeakers, are
directly behind it. To minimize feedback and ensure optimum rejection of unwanted sound,
always test microphone placement before a performance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG Alta Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Shure PG Alta Series

  • Page 1 PG Alta Microphones Congratulations on the purchase of a new Shure PG Alta series microphone. The PG Alta series delivers professional quality audio at an affordable price, with solutions for capturing nearly any source, including voice, acoustic instruments, drums, and amplified electric instruments. Suitable for live and studio applications, PG Alta microphones are built to last, and meet the same rigorous quality testing standards that make all Shure products trustworthy and reliable.
  • Page 2 Recommended Loudspeaker Locations for Cardioid Microphones On/Off Switch Specifications Type Dynamic (moving coil) Frequency Response 50 to 16, 000 Hz...
  • Page 3 Polar Pattern Cardioid Output Impedance 150 Ω Sensitivity at 1 kHz, open circuit voltage -55 dBV/Pa¹ (1.79 mV) Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Weight 294 g (10.37oz.) Switch On/Off Switch Connector Three-pin professional audio (XLR), male Environmental Conditions...
  • Page 4 Typical Frequency Response Typical Polar Pattern...
  • Page 5 Certifications This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str.
