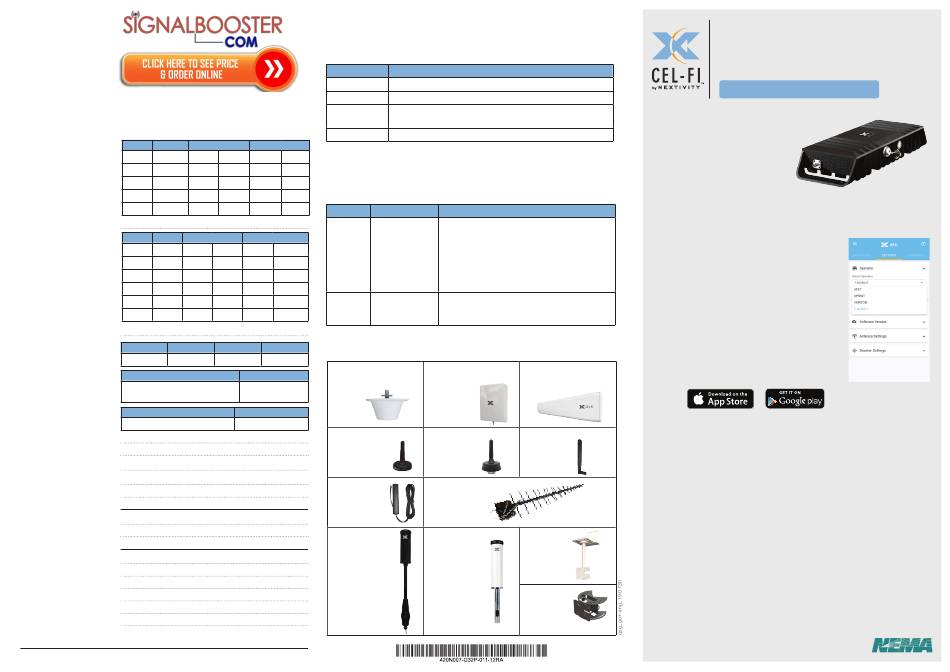

NEXTIVITY Cel-Fi GO+ Quick Start Manual

Specifications:
Frequency Support
Multiple variations of the product are available with
different frequency support.
BAND NAME
Model:
2 1900 PCS 1930
G32-2/4/5/12/13
4 AWS–1 2110
5 850 869
12 700 a 729
13 700 c 746
Gain
Up to 100 dB system gain
Model:
BAND NAME DOWNLINK
G32-1/3/5/7/8/20
1 2100 2110
3 1800+ 1805
5 850 869
7 2600 2620
8 900 925
20 800 DD 791
Gain
Up to 100 dB system gain
LENGTH WIDTH
Dimensions
272.5 mm 96.5 mm
Power (max)
DOWNLINK TX
10 dBm/5 MHz
(16 dBm per band)
Bluetooth (LE Ver 4.2)
FREQUENCY
2042 – 2480 MHz
Environmental
Operating Temp: 0 - 65°C
Relative Humidity: 95%
Antenna Connectors
SMA-Female
Certifications
3GPP TS 25.143 Rel.10
(All variants) 3GPP TS 36.143 Rel.10
RoHS 2
(G32-2/4/5/12/13 FCC
variants only) ISED
UL 62368-1:2014
(G32-1/3/5/7/8/20 IEC 62368-1:2014
variants only) EN 301 489-1 v2.1.1
EN 301 489-17 v3.1.1
EN 301 489-50 v2.2.0
EN 62311 (2008)
Regulation (EC) 1275/2008 (Standby and Off mode)
Regulation (EC) 278/2009 (External Power Supply)

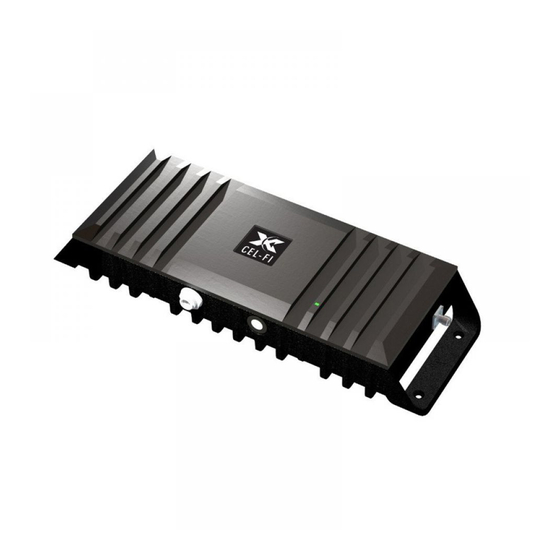

Cel-Fi GO+ All-in-One Smart Signal Booster
User Interface
Cel-Fi GO+ All-in-One Smart Signal Booster features an LED on the top face
to indicate the unit' s state:
LED
Solid GREEN
Blinking GREEN Unit is scanning for networks to boost.
Blinking RED
Solid RED
DOWNLINK UPLINK
NOTE: In mobile usage, it is normal for the Cel-Fi GO+ All-in-One Smart
1990 1850 1910
Signal Booster to fluctuate between scanning and boosting. The Cel-Fi GO+
2155 1710 1755 All-in-One Smart Signal Booster automatically adjusts its boost behavior
based on available signal.
894 824 849
Troubleshooting
746 699 716
756 777 787
ISSUE
Continual Unit is
Blinking operational, but
UPLINK
GREEN not attaching to a
2170 1920 1980
network to boost.
1880 1710 1785
894 824 849
2690 2500 2570
Solid Unit is not
960 880 915
RED LED operational.
821 832 862
Antenna and Mount Options:
HEIGHT WEIGHT
Review the latest authorized antennas at www.cel-fi.com/antennas
43.5 mm 850 g
Cel-Fi Indoor
UPLINK TX
Omni Antenna
24 dBm per band
A52-V32-100
POWER
0 dBm
Cel-Fi Mobile Mag
Mount Antenna
A41-V21-100
A41-V21-101
BQB (Bluetooth)
Cel-Fi Mobile
NEMA-4
Server
Antenna
A41-V30-100
CSA C22.2#62368-1
UL 50E, UL 60950-22
Cel-Fi Trucker
CSA C22.2#60950-22
Antenna
EN 301 908-1 v11.1.1
A21-V31-100
EN 301 908 v11.1.2
EN 301 908 v11.1.2
EN 300 328 v2.1.1
MEANING
The unit is working properly and boosting properly.
The unit is in an error condition. Use the Cel-Fi WAVE app to
check the error code meaning and remedy.
The unit has a hardware error and is not booting up normally.
MEANING ACTION
• Make sure both antennas are connected
properly and are appropriate for the desired
frequencies to boost.
• Make sure the selected operator to relay is
available at your location. This can be checked
with the Cel-Fi WAVE application. If the service
is not available, it cannot be boosted.
• Unplug and reinsert power.
• If restart has no effect, contact vendor for
remedy.
Cel-Fi Wideband Cel-Fi Wideband
Panel Antenna Directional Antenna
A11-V43-100 A32-V32-100
Cel-Fi Mobile Bolt Cel-Fi Whip
Mount Antenna Antenna
A41-V36-100 A21-V33-100
A41-V36-101
Cel-Fi Mount
Antenna
A62-V44-100
Cel-Fi Marine Cel-Fi
Antenna Antenna
A11-V37-100 Mount
F66-100
Cel-Fi
Pole Mount
F26-100
Cel-Fi GO+ All-in-One
Quick Start Guide
Smart Signal Booster
Basic Functionality
The Cel-Fi GO+ All-in-One Smart
Signal Booster Smart Signal
Booster is designed to improve
cellular coverage in a building,
remote area, or vehicle. Cel-Fi
GO+ connects to an external
Donor Antenna to draw in a cellular signal from the macro
network, and redistribute signal via the Server Antenna.
Cel-Fi WAVE App
The Cel-Fi WAVE app provides a User
Interface to Cel-Fi systems. The app's
dashboard shows the system "Boost"
value that is a numeric representation
mapped to the amount of Signal Gaivn the
system is providing. Higher is better, with
nine (9) being the highest value. Cel-Fi
WAVE is the registration and management
application that allows users to setup
antenna, modes, and carriers. Cel-Fi WAVE
app is available through either the Google
Play Store or Apple App Store; depending
on the mobile device.
Cel-Fi GO+ is configured to automatically select the best
cellular band to boost.
• A user may manually configure the system's preferences
using the Cel-Fi WAVE app.
• A user may manually change the system's Carrier config
and Mode between Mobile and Stationary via
Cel-Fi WAVE app.
NEMA 4 Rating
The Cel-Fi GO+ is NEMA 4 rated, and can be used both
indoors and outdoors. The NEMA 4 rating provides the
following advantages:
• A degree of protection against ingress of solid foreign
objects (falling dirt and windblown dust)
• A degree of protection from the ingress of water (rain,
sleet, snow, splashing water, and hose directed water)
• Equipment will be undamaged by the external formation
of ice on the enclosure
™
