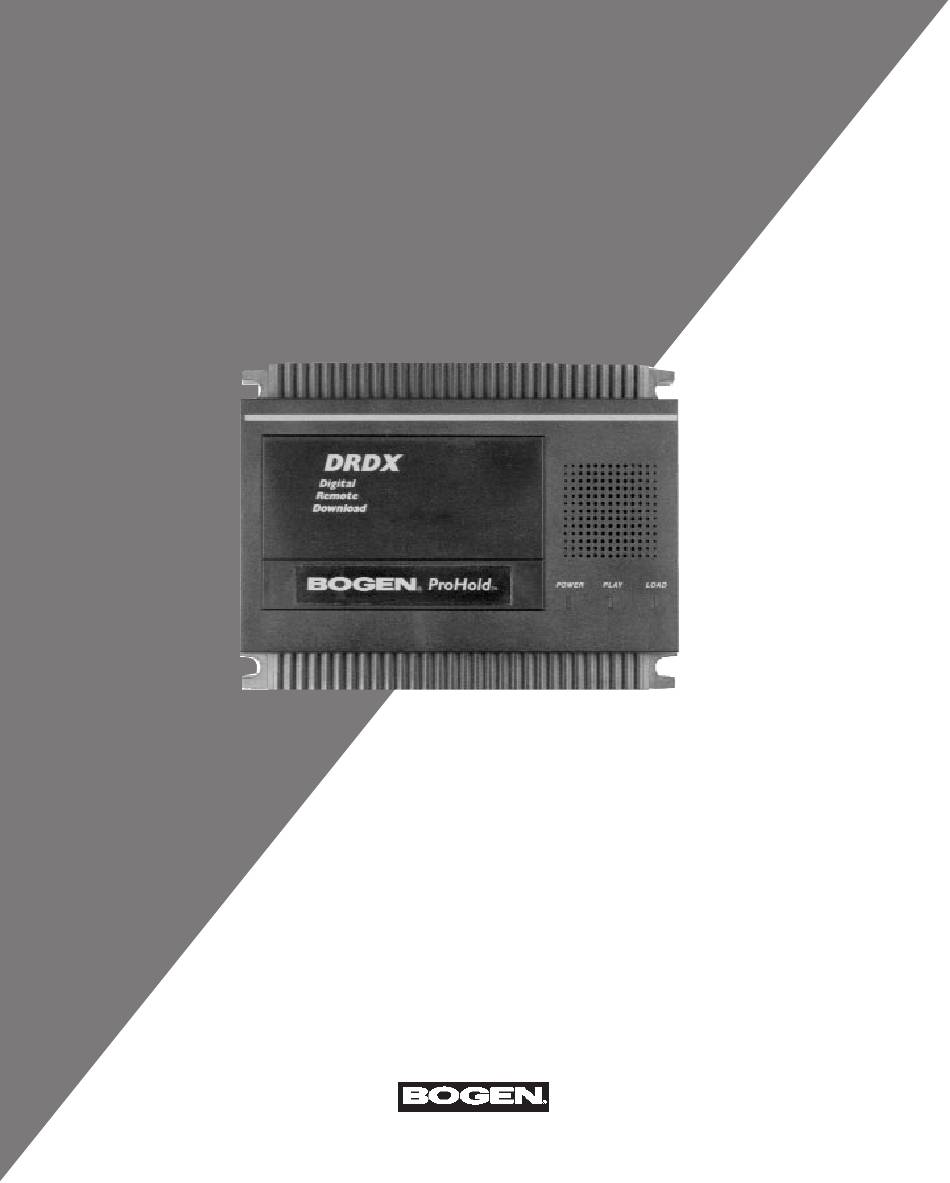

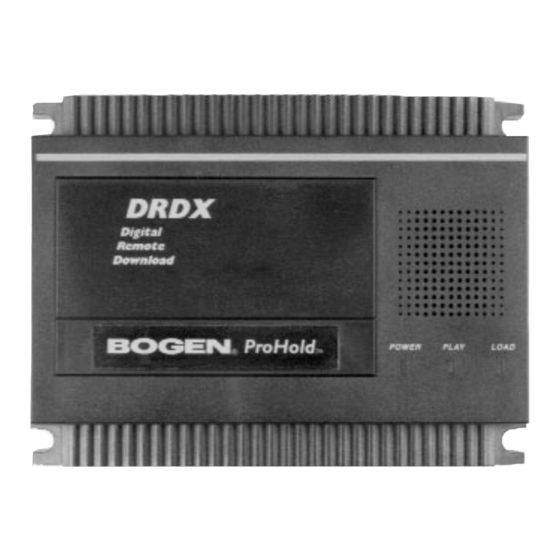

- Page 1 ProHold DRDX Digital Download System Remote Unit Installation Guide Just what you want to hear™...
- Page 2 FCC Notice This equipment has been tested and found to comply within the limits for a Class A digital device, pursuant to Part15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a res- idential installation.
- Page 3 Communications Inc. Notice: The information contained in this document is subject to change without notice and should not be construed as a commitment by Bogen Communication, Inc. Bogen Communications Inc. assumes no responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied war- ranties of merchantability and fitness for a particular purpose.
- Page 4 Important Safety Instructions 1. Read and follow all instructions. 2. Follow all warnings and instructions marked on the product 3. Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4.
- Page 5 ProHold DRDX Digital Download System DRDX Unit Installation Guide...
- Page 6 Specifications Power Requirements: 9V AC. Power supply included with the unit provides 9V AC @ 800 mA from 110V AC Source Coding Method: IMA Standard Sampling Rate: 128 Kilobits/sec minimal Memory Capacity: PRO4 DRDX - 4 minutes PRO6 DRDX- 6 minutes PRO8 DRDX - 8 minutes PRO12 DRDX- 12 minutes Memory Backup: 20 year non volatile FLASH Memory...
-
Page 7: Table Of Contents
Contents Introduction ......... .4 Front Panel Features . -
Page 8: Introduction
1. Introduction The ProHold DRDX is the latest addition to the ProHold Series of Message On Hold Digital Announcers form BOGEN Communications. The ProHold Remote DRDX is designed to provide the end-user with superior ‘DDD’ Digital Message Quality, combined with flexible programming. -
Page 9: Front Panel Features
2. Front Panel Features 1. LED Indicators POWER, PLAY and LOAD. The POWER LED is lit when unit is plugged into wall. The PLAY LED is lit when unit is playing either Program. The LOAD LED is lit only when the unit is communicating with the Base Station. -
Page 10: Top Panel Controls And Connections
3. Top Panel Controls and Connections Identifier Description 9V AC Jack accepts 9V AC power to the unit. The power supply included with the unit provides 9V AC @ 800mA from a 110V AC source. 1 WATT RCA Phono Jack - 1 watt into 8Ω LINE 600Ω... -
Page 11: Installation
4.3 Connecting Power Supply Connect the output plug from the power supply included with the unit to the 9V AC jack on the rear panel of the ProHold DRDX. Plug the power supply into any convenient 110V AC outlet. 4.4 Connecting to the PSTN... -
Page 12: Connecting To Your Telephone System
If desired a Local Preamplified Analog Music source may be connected to the AUX IN RCA Phono Jack on the top panel of the ProHold DRDX unit. Local music input will be optionally mixed with the stored digital audio output of the ProHold DRDX. -
Page 13: Operation
This line is only used for ProHold DRDX access. 6.2 Time Share Time Share allows the ProHold DRDX to share its access line with some other user application or equipment. There are two different flavors of this type of connection: 6.2.1 External Share Device... -
Page 14: Parallel Time Share
You could have your studio set the ProHold DRDX to one (1) ring answer but restricted to Mondays from 5:00 p.m. till 5:00 a.m. All other times the USER Equipment would actu- ally pick up the line (user equipment should be set to pick up on 2 to 3 rings).. -
Page 15: Troubleshooting
7. Troubleshooting There is virtually nothing which can fail within the ProHold DRDX unit. Almost all unit problems can be traced to a few simple causes. Power LED does not light Check power supply connection. Verify wall outlet is operational (e.g. no... -
Page 16: Care And Maintenance
8. Care and Maintenance The impact resistant housing and quality construction of the ProHold DRDX virtually eliminates the need for service or maintenance There are No User Serviceable Components within the unit or the power sup- ply. Refer all servicing to qualified personnel. - Page 17 Notes...
- Page 18 50 Spring Street • Ramsey, NJ 07446 (201) 934-8500 www.bogen.com...
