NQ-GA10P, NQ-GA10PV VoIP
Intercom Module Installation
and Use

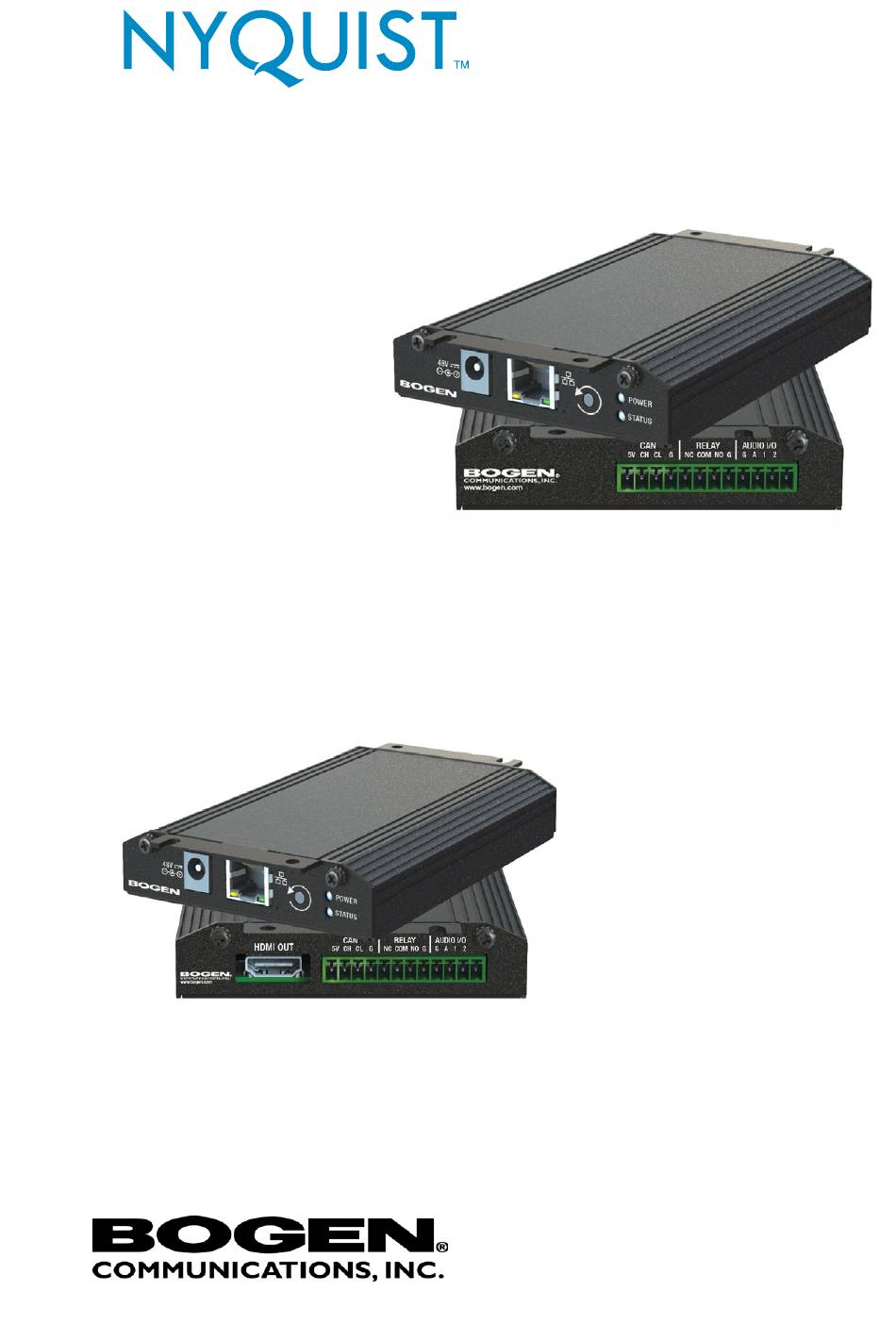

The NQ-GA10P
is a plenum rated
Voice over Internet
Protocol (VoIP)
intercom module
that is designed
for flexible installation and mounting options.
The module features an integrated 10 watt power
amplifier, an 8-ohm analog speaker connection, a
dry-contact analog call switch input, a CAN Bus port
interface, and a Form C SPST type 2-amp dry contact
relay.
the NQ-GA10PV are IEEE 802.3af compliant and
can be powered using Power-Over-Ethernet (PoE),
or if that is not available, it can be powered via an
optional 48VDC 15W power adapter.
The NQ-GA10PV
model also features
an HDMI video
output. Designed
to run on a 10/100
Ethernet network,
the NQ-GA10P and
Publication Number 740-00053A
1807
