Summary of Contents for JK Audio innkeeper 2

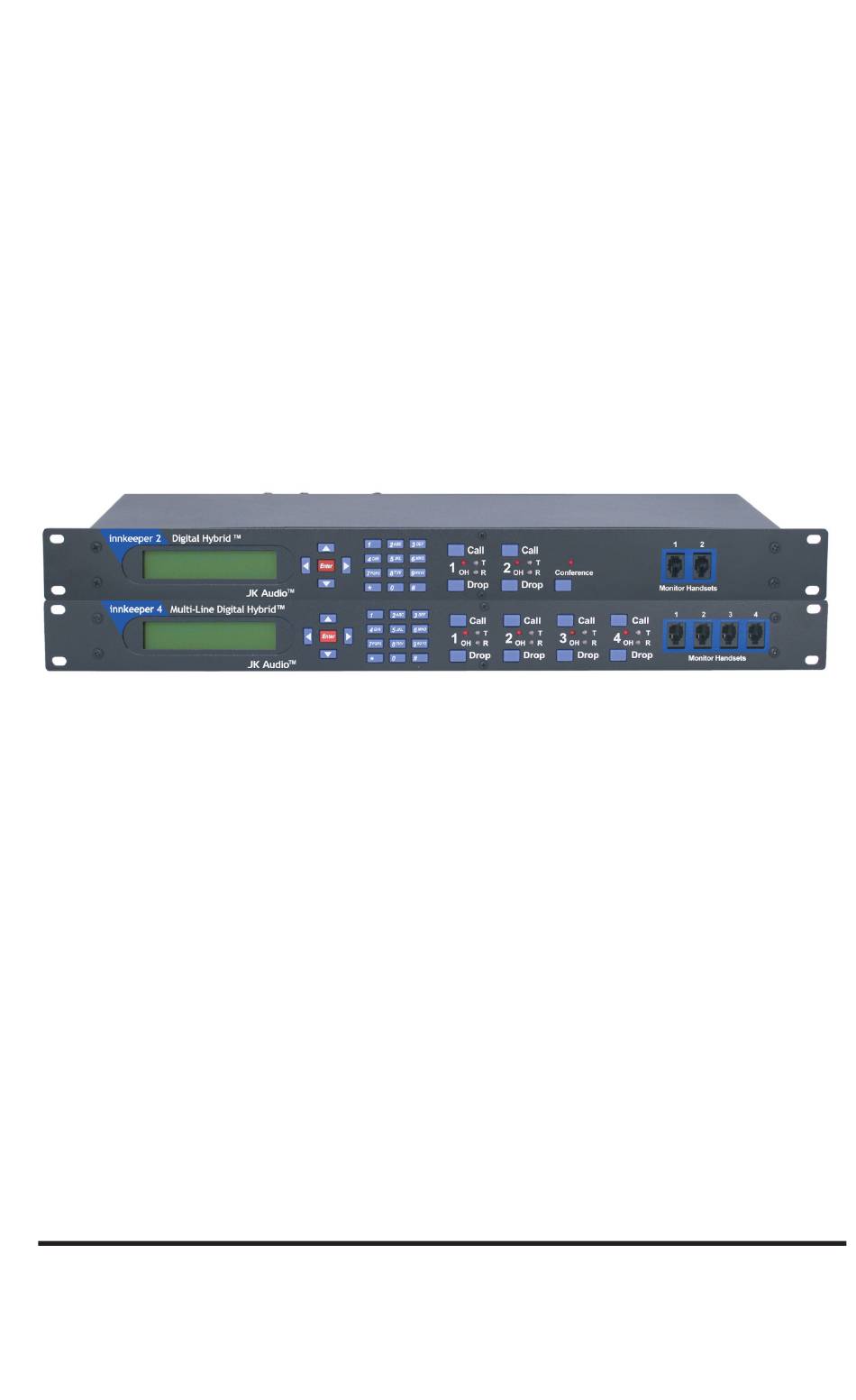

- Page 1 2 innkeeper 4 Multi Line Digital Hybrids User Guide JK Audio...
- Page 2 50 dB, without any setup. Ready to go? The Innkeeper 2/4 feature diagram will help you pinpoint any minor questions that you may have. If this is your first exposure to a hybrid, we suggest that you read the entire manual to allow you to take advantage of all these features.
- Page 3 Features 11 12 13 14 15 16...
- Page 4 Features (cont) Backlit LDC menu display, 2x20 characters. Directional Arrow Keys - Press these buttons to navigate through the menu. Enter Button - Press this button to make a selection on the menu. Keypad - Use these keys to dial a phone number or manually enter menu selection codes.
- Page 5 AC connector - For connection to 120 - 240 VAC, 50-60 Hz power. Conference button - Use this feature to conference together lines 1 and 2 when both lines are off-hook. This feature is available on innkeeper 2 only.
- Page 6 Send XLR - Connect a line level (mix-minus) audio signal to the Send jack(s) on the Innkeeper 2/4. Audio will be sent down only the corresponding phone line. Master Send - Connect a line level (mix-minus) audio signal to the Master Send input.
- Page 7 The LED will display receive signal levels at -20 dB as green up to -3 dB where it will change to red. The Innkeeper 2/4 menu will allow you to adjust individual Caller output levels in 1 dB increments over a +/-10 dB range to give you the best signal level at your equipment.
- Page 8 Operation - Conference Conference(innkeeper 2 only) One press of the conference button will join the audio paths of both line one and line two, providing there are calls present on both lines. A second press of the conference button will break the audio paths between the calls.
- Page 9 Operation - Conference...
- Page 10 Operation (cont) Innkeeper 2 Advanced Conference Options The factory default conference mode provides both callers with a mix of Line 1 Send and Line 2 Send audio. Additional mix options can be found in the Configuration menu. These options allow your enable and disable Send and Caller mix features.
- Page 11 Operation (cont) Advanced Conference Options Signal Flow Diagram Default Send=Mix, Caller=No Mix Send=No Mix, Caller=No Mix Caller 1 Caller 2 Caller 1 Caller 2 Line 1 Line 2 Line 1 Line 2 Send Caller Send Caller Send Caller Send Caller Send=Mix, Caller=Caller Mix Send=No Mix, Caller=Caller Mix Caller 1...
- Page 12 Operation (cont) Remote Jack The 10 pin RJ-50 jack on the back of the Innkeeper 2/4 provides a proprietary connection to the supplied remote terminal block. A 1 meter cable is provided for this connection. Remote Terminal Block The Remote Terminal Block includes an Off-Hook signal pin and a Call/Drop control pin for each phone line channel.
- Page 13 Operation (cont) new key, the Next> key or waiting 2 seconds will accept the current character and move the cursor forward. See page 11 for multitap key legend. Phone Book Delete Entry(1,3) - Entries may be deleted individually from this menu. You will be prompted to confirm delete of an entry after selection.
- Page 14 Conference(3,5) - This menu allows you to configure settings for the Conference feature on the innkeeper 2. Conf. Send Mix Mode(3,5,1) - Configure the Send Mix Mode to "Send Mix" default or "No Mix". The "Send Mix" default option mixes both the Line 1 Send and Line 2 Send audio signals together and sends that audio down both phone lines.
- Page 15 Operation (cont) option does not mix any audio together on the Caller output jacks. Caller 1 out will contain Line 1 Caller audio and Caller 2 out will contain Line 2 Caller audio. The "Caller Mix" option mixes together both caller audio signals on both Caller output jacks.
- Page 16 5 Remote Interface Unit A Remote Interface Unit has been provided in this package with a special 1 meter cable for connection to your innkeeper 2/4 multi-line digital hybrid. This terminal block was designed to allow remote off-hook / on- hook control and status for each phone line.
- Page 17 Specifications Inputs: Line: Balanced Female XLR, 20k ohm, +10 dBu max send Outputs: Balanced: Balanced Male XLR, 200 ohm, +14 dBu max Handset: Front panel handset jacks biased for electret handset (not included) Phone Line: RJ11C Aux Phone: RJ11C Isolation: 1500 VAC Ringer: 0.5B REN...
- Page 18 Changes or modifications not expressly approved by JK Audio can void the user's authority to operate the equipment.
- Page 19 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone company.
- Page 20 Warranty Innkeeper 2/4 is covered by a 2-year warranty to be free from defective workmanship and materials. In the event that the Innkeeper 2/4 needs repair, you must call us to get an authorization, and then carefully pack and ship it to us. You will pay for shipping to us and we will pay for return back to you, UPS ground.
