  • Page 1 Locker Controller ELS & ELS SELECT Technical Manual...

  • Page 2: Table Of Contents

    Locker Controller ELS & ELS SELECT Technical Manual Table of contents Locker Controller ELS & ELS SELECT Technical Manual ................4 Product description ..........................4 Basic Parts ............................5 Locker Controller PCB with two extension modules and connecting PCB ........5 Display.............................
  • Page 3 Checking of locker Alarm functionality ..................38 Expired/Blocked signalization ......................38 Remote opening of single locker signalization................. 38 Functional Test ..........................38 Checking locker wiring order (ELS Systems only) ................. 39 Locking / Unlocking of All Lockers ....................39 Device replacement .......................... 39 Maintenance ............................. 40 Troubleshooting Guide ........................

  • Page 4: Locker Controller Els & Els Select Technical Manual

     LC08 (Locker Controller Extension Module) Year of Construction: 2008-2011 Declaration of Conformity: The Metra ELS & ELS SELECT products have been developed, designed and manufactured in accordance with the EU directive for Electromagnetic Compatibility (2004/108/EC). Locker Controller ELS & ELS SELECT Technical Manual [rev.0-030811] 2011 Metra inženiring d.o.o.

  • Page 5: Basic Parts

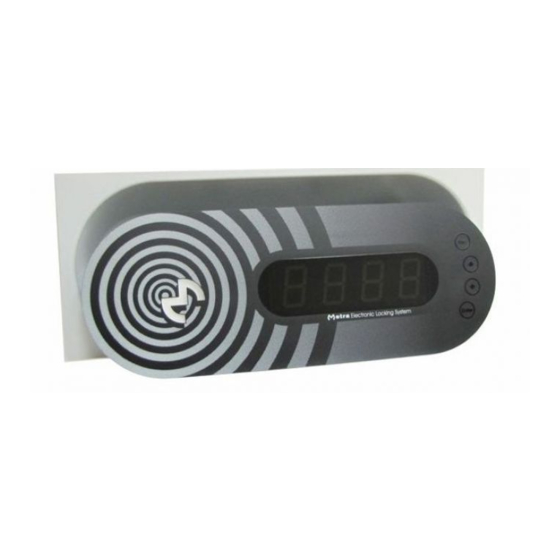

     Locker Controller PCB with two extension modules and connecting PCB  Display Display Combo Metra Display RFID is a user interface for Metra ELS systems, while Metra Display Combo and Keypad are a user interfaces for Metra ELS and Metra ELS SELECT systems.

  • Page 6: Emergency Open Push-Button (Optional)

    Locker Controller ELS & ELS SELECT Technical Manual  Emergency Open Push-button (optional) Emergency Open Push-button is used to initiate Emergency Open procedure for all Electronic Locks connected to Locker Controller.  Coin acceptor (optional) Locker Controller can be configured to ask for payment when locking the locker door.

  • Page 7: Connecting Locker Extension Modules

    Locker Controller ELS & ELS SELECT Technical Manual description description Electronic Lock 1 Electronic Lock 27 Electronic Lock 2 Electronic Lock 28 Electronic Lock 3 Electronic Lock 29 Electronic Lock 4 Electronic Lock 30 Electronic Lock 5 Electronic Lock 31...

  • Page 8: Locker Extension Module Setting

    Locker Controller ELS & ELS SELECT Technical Manual When Locker Controller is ordered with mounting plate Extension Modules (LC24_* and LC32_*) are already connected.  Locker Extension Module setting The first Locker Extension Module DIP switch (indexes 17-24) and second Locker Extension Module DIP switch (indexes 25-32) must be set as follows: ...

  • Page 9: Display Connection

    Locker Controller ELS & ELS SELECT Technical Manual EXAMPLE: Most left connector (index 1) is locker number 161, most right connector (index 32) is locker number 192.  Display connection Plug the 10 wire flat cable from the Display to the connector as shown in the schematic. See also “Display –...

  • Page 10: Power Supply Connection (Locker Controller Without Distribution Board)

    Locker Controller ELS & ELS SELECT Technical Manual  Power supply connection (Locker Controller without distribution board) Regulated 12 VDC power supply is required for proper operation. Connect as many units as possible to a single power supply unit. Consult the Technical Specifications section of this document for current consumption.

  • Page 11: Metra Net Network Connection (Locker Controller Without Distribution Board)

    Locker Controller ELS & ELS SELECT Technical Manual  Metra NET Network connection (Locker Controller without distribution board) The Metra NET Network connection provides for operational functionality of the Locker Controller. Different devices in parallel can be connected to the Metra Network Controller by a single unshielded twisted pair (UTP) cable.

  • Page 12: Metra Net Network Connection (Locker Controller With Distribution Board)

    Locker Controller ELS & ELS SELECT Technical Manual  Metra NET Network connection (Locker Controller with distribution board) Connect the twisted pair network cable to designated terminals. The terminals are marked as CANL for network low signal and CANH for network high signal.

  • Page 13: Coin Acceptor Connection

    Locker Controller ELS & ELS SELECT Technical Manual  Coin Acceptor connection Connect the Coin acceptor to designated terminals as shown in the schematic.  External emergency open pushbutton connection (optional) Connect the blue and blue/white wires of the UTP cable from the Emergency open pushbutton to designated terminals as shown in the schematic.

  • Page 14: Dip Switch Settings

    To obtain operating parameters, press the PARAMETERS REQUEST button.  NOTE  Before changing between Normal/Test or ELS/ELS SELECT mode of operation all lockers must be unlocked via external or internal emergency open pushbutton  NOTE ...

  • Page 15: Network Address

    Locker Controller ELS & ELS SELECT Technical Manual  Network address After installation is complete, the device’s network address must be set by changing the Network Address DIP Switch pins positions.  NOTE  Each Metra device must have different address setting.

  • Page 16: Operating Modes

    OFF = switch down  ON = switch up  NOTE  Before changing between Normal/Test (switch 7) or ELS/ELS SELECT (switch 8) mode of operation all lockers must be unlocked via external or internal emergency open pushbutton switch parameter...

  • Page 17: Power - On

    Locker Controller ELS & ELS SELECT Technical Manual  Power - on After the device is powered on, its network address (number from 1 to 99 or from 600 to 699) is shown on Display for a few seconds. This feature is intended for maintenance personnel.

  • Page 18: Operation

    Locker Controller ELS & ELS SELECT Technical Manual  Operation Each Locker Controller and Locker Extension Module has a blinking green LED operating indicator. All these signals are under software control indicating that the device is running.  Network Communication Network communication (Metra NET) is signalled on the Locker Controller by four LEDs: ...

  • Page 19: Actions And Operating Parameters

    Locker Controller ELS & ELS SELECT Technical Manual  Right Red LED is on when the Locker Controller is transmitting data packets to Metra NET Network.  Actions and operating parameters  NOTE  Some operating parameters are system dependant and may not be available in your system.

  • Page 20: Setting Operational Parameters - Via Metra Net Network

    Metra Network Controller must be connected to Metra NET Network  Metra server must be running and all hardware added in Metra ELS/ELS NET/LCC NET software.  Each Locker Controller must have set its unique Metra NET Network address – ID.

  • Page 21: Setting Operational Parameters - By Display's Keypad

    Locker Controller ELS & ELS SELECT Technical Manual  Setting Operational parameters – by Display’s keypad  Setup mode activation STEP 1: With small flat headed screwdriver or similar tool set switch 1 located on the “Operating mode DIP switch”...

  • Page 22: Initiating Actions And Setting Operating Parameters

    Locker Controller ELS & ELS SELECT Technical Manual  Initiating actions and setting operating parameters ACTION DEFAULT PARAMETERS ELS SELECT Action erases all current parameter values and sets them back to factory default.  4/12 key keypad: While sign “dEFP” is displayed press the “Enter”/ key.
  • Page 23 Locker Controller ELS & ELS SELECT Technical Manual PARAMETER MASTER CODE ELS SELECT Not avaliable if “Special Keys Mode” is set to “On-line” in Metra ELS/LCC software. 4 key keypad: Not available.  12 key keypad: While sign “CodE” is displayed press the key.
  • Page 24 Locker Controller ELS & ELS SELECT Technical Manual ACTION MASTER KEY ELS SELECT Not avaliable if “Special Keys Mode” is set to “On-line” in Metra ELS/LCC software or you are using Display Keypad.  4/12 key keypad: While sign “Add” is displayed press the “Enter”/ key.
  • Page 25 Locker Controller ELS & ELS SELECT Technical Manual PIN CODE FOR PARAMETER MULTIPLE LOCKING PIN Code that activates multiple locking with PIN Code. 4 key keypad: Not available.  12 key keypad: While sign “GrUP” is displayed press the key. Type-in the 4 digit number from 8000 ...
  • Page 26 Locker Controller ELS & ELS SELECT Technical Manual 4 key keypad: While sign “USr” is displayed press the “Enter” key. Press the key for up or down on the Keypad to increase or decrease user waiting time. Time can be set from 2 to 8 seconds in 1 second steps.
  • Page 27 Locker Controller ELS & ELS SELECT Technical Manual PARAMETER PIN REQUEST DISPLAY ELS SELECT After the Locker is closed and Pin code requested, sign “Pin” or sign “COdE” can be displayed. 4 key keypad: Not available.  12 key keypad: While sign “PinC”...
  • Page 28 Set them regarding your Coin Acceptor (currency and value of used coins), number of additional payment(s), and required tenancy time. SIGn: (ELS only) Payment device is disabled. After the Locker is locked and tenancy expired, Locker expired signalization is turned on (two middle dots on the Display start flashing alternately). When all the Lockers with expired tenancy are unlocked, expired signalization is turned off.
  • Page 29 Locker Controller ELS & ELS SELECT Technical Manual PARAMETER COIN VALUE ELS SELECT Parameter is available if Payment parameter (PAY) is set to “On”.  4/12 key keypad: While sign “P Co” is displayed press the “Enter”/ key. Press the key for up or down on the Keypad to scroll through the menu and select coin value according your coin acceptor.
  • Page 30 Locker Controller ELS & ELS SELECT Technical Manual PARAMETER CURRENCY ELS SELECT Parameter is available if Payment parameter (PAY) is set to “On”.  4/12 key keypad: While sign “P dS” is displayed press the “Enter”/ key. Press the key for up or down on the Keypad to scroll through the menu and select currency according your coin acceptor.

  • Page 31: Emergency Open Procedure

    Locker Controller ELS & ELS SELECT Technical Manual  Emergency Open procedure Locker Controller features an Emergency Open procedure, which unlocks all Electronic Locks connected to the Locker Controller and to all of the attached Locker Extension Modules. Locks are unlocked one by one, starting at the lock connected to the leftmost connector (position #1).

  • Page 32: Test Mode Of Operation

    Locker Controller ELS & ELS SELECT Technical Manual “EOPn” is displayed and all lockers connected to the Locker Controller start to unlock and open one after another corresponding locker numbers are displayed.  Test mode of operation While still In Normal mode of operation all lockers should be opened by pressing the Emergency open pushbutton.

  • Page 33: Testing Electronic Locks Installation

    Locker Controller ELS & ELS SELECT Technical Manual  Testing electronic locks installation STEP 1: Close the locker door. STEP 2: Locker index (1-32 as it is connected to the Locker Controller) is displayed. STEP 3: Locking time in milliseconds is displayed shortly after locker index.

  • Page 34: Closing Lockers For Transportation

    Locker Controller ELS & ELS SELECT Technical Manual STEP 5: Electronic Lock unlocks and the locker opens. STEP 6: Unlocking time in milliseconds is displayed shortly after locker index. Unlocking time should be between 150 and 300.  NOTE ...

  • Page 35: Testing Emergency Open Pushbutton

    Locker Controller ELS & ELS SELECT Technical Manual STEP 2: Close the locker door. STEP 3: Locker index (1-32 as it is connected to the Locker Controller) is displayed. STEP 4: Locking time in milliseconds is displayed shortly after locker index. Locking time should be between 150 and 300.

  • Page 36: Testing Coin Acceptor

    Locker Controller ELS & ELS SELECT Technical Manual External: Turn the key on emergency open pushbutton clockwise to initiate emergency opening of all Lockers. Signalization: “EOPn” is displayed and all lockers connected to the Locker Controller start to unlock and open one after another and corresponding locker numbers are displayed.

  • Page 37: Erasing Operating Parameters

    Locker Controller ELS & ELS SELECT Technical Manual  Erasing operating parameters Operating parameters can be erased (initialized to default values) only in TEST mode of operation. While powering-up the Locker Controller in TEST mode of operation, press and hold both buttons (Emergency open and Parameters request) for more than 3 seconds.

  • Page 38: Checking Of Locker Alarm Functionality

    Locker Controller ELS & ELS SELECT Technical Manual  Checking of locker Alarm functionality The purpose of the test is to make sure that each Electric Lock functions properly. Locks can be tested only when they are unlocked (locker door opened).

  • Page 39: Checking Locker Wiring Order (Els Systems Only)

    (locker door opened). Locking procedure See “ELS - User Manual” or “ELS SELECT – User Manual” paragraph “Locking procedures”. Unlocking procedure See “ELS - User Manual” or “ELS SELECT – User Manual” paragraph “Unlocking procedures”.

  • Page 40: Maintenance

    Locker Controller ELS & ELS SELECT Technical Manual STEP 3: Disconnect all cables and mark their exact position. STEP 4: On the new Locker Controller set the same network address and operating mode. STEP 5: Replace the Locker Controller with a new one.

  • Page 41: Appendix

    Locker Controller ELS & ELS SELECT Technical Manual Buffer capacity 40 records Electronic Lock Interface Up to 16/24/32 El. Locks, 6 wire flat cable, max. length 20m Dimensions in mm (w/h/l) 100/20/179 main electronics 100/20/89 extension board 171/5/380 mounting plate...
  • Page 42 Locker Controller ELS & ELS SELECT Appendix 1 Physical dimensions Locker Controller 75.5 6 7 8 Locker Controller Extension Module 1 2 3 4...
  • Page 43 Locker Controller ELS & ELS SELECT Appendix 2 Physical dimensions Mounting rails 6 7 8...
  • Page 44 Locker Controller ELS & ELS SELECT Appendix 3 Physical dimensions Mounting plate 46.5 46.5...
  • Page 45 Locker Controller ELS & ELS SELECT Appendix 4 Physical dimensions Coin Acceptor mounting hole min 130...
  • Page 46 Locker Controller ELS & ELS SELECT Appendix 5 Physical dimensions Fingerprint module ø78,6 ø72,6 ø78,6...
  • Page 47 Locker Controller ELS & ELS SELECT Appendix 6 Network schematic Metra NET Network up to 1 km / up to 100 devices Line Terminator Locker Controller 1 Locker Controller 2 Locker Controller 3 Locker Controller N Electric Locks Electric Locks...
  • Page 48 Locker Controller ELS & ELS SELECT Appendix 7 Cable installation CEILING 220 V AC 220 V AC Power Supply +- +- +- Metra NET other Locker Network Controllers (optional) Metra NET Network Twisted Pair or UTP cable HANGED Standard CEILING 2 x 0.5 mm...
  • Page 49 Locker Controller ELS & ELS SELECT Appendix 8 Device configuration (example 1) Electronic Locking System 6 7 8 OPTIONAL To other Metra devices Electronic Locking System Display Combo Coin Acceptor...
  • Page 50 Locker Controller ELS & ELS SELECT Appendix 9 Device configuration (example 2) Electronic Locking System 6 7 8 1 2 3 4 1 2 3 4 OPTIONAL To other Metra devices Electronic Locking System Display Combo...
