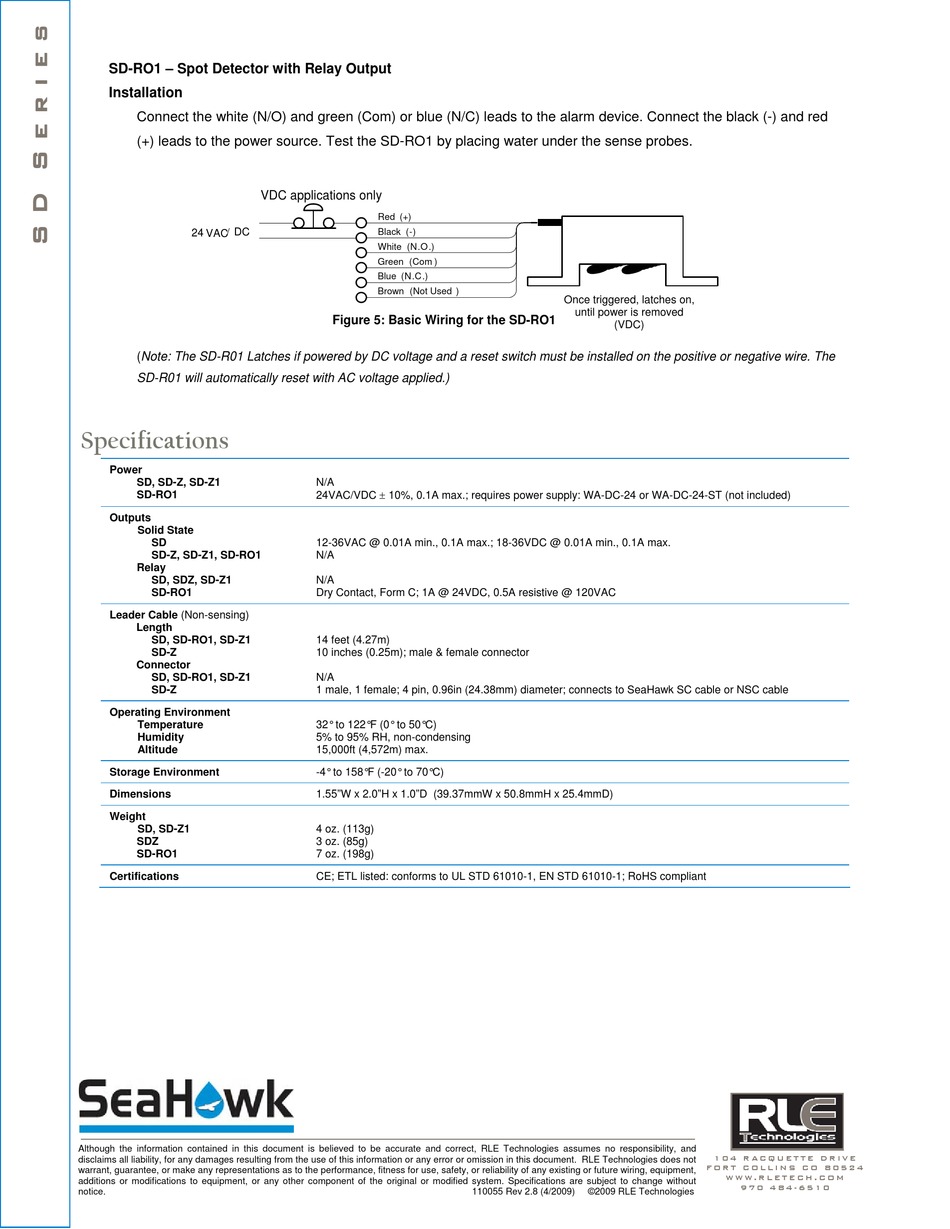

SD-RO1 – Spot Detector with Relay Output
Installation
Connect the white (N/O) and green (Com) or blue (N/C) leads to the alarm device. Connect the black (-) and red
(+) leads to the power source. Test the SD-RO1 by placing water under the sense probes.
24 VAC / DC
(Note: The SD-R01 Latches if powered by DC voltage and a reset switch must be installed on the positive or negative wire. The
SD-R01 will automatically reset with AC voltage applied.)

Specifications

Power
SD, SD-Z, SD-Z1
SD-RO1
Outputs
Solid State
SD
SD-Z, SD-Z1, SD-RO1
Relay
SD, SDZ, SD-Z1
SD-RO1
Leader Cable (Non-sensing)
Length
SD, SD-RO1, SD-Z1
SD-Z
Connector
SD, SD-RO1, SD-Z1
SD-Z

Operating Environment

Temperature
Humidity
Altitude

Storage Environment

Dimensions

Weight

SD, SD-Z1
SDZ
SD-RO1

Certifications

Although the information contained in this document is believed to be accurate and correct, RLE Technologies assumes no responsibility, and
disclaims all liability, for any damages resulting from the use of this information or any error or omission in this document. RLE Technologies does not
warrant, guarantee, or make any representations as to the performance, fitness for use, safety, or reliability of any existing or future wiring, equipment,
additions or modifications to equipment, or any other component of the original or modified system. Specifications are subject to change without
notice.
VDC applications only
Red (+)
Black (-)
White (N.O.)
Green (Com )
Blue (N.C.)
Brown (Not Used )
Figure 5: Basic Wiring for the SD-RO1
N/A
24VAC/VDC  10%, 0.1A max.; requires power supply: WA-DC-24 or WA-DC-24-ST (not included)
12-36VAC @ 0.01A min., 0.1A max.; 18-36VDC @ 0.01A min., 0.1A max.
N/A
N/A
Dry Contact, Form C; 1A @ 24VDC, 0.5A resistive @ 120VAC
14 feet (4.27m)
10 inches (0.25m); male & female connector
N/A
1 male, 1 female; 4 pin, 0.96in (24.38mm) diameter; connects to SeaHawk SC cable or NSC cable
32° to 122°F (0° to 50°C)
5% to 95% RH, non-condensing
15,000ft (4,572m) max.
-4° to 158°F (-20° to 70°C)
1.55"W x 2.0"H x 1.0"D (39.37mmW x 50.8mmH x 25.4mmD)
4 oz. (113g)
3 oz. (85g)
7 oz. (198g)
CE; ETL listed: conforms to UL STD 61010-1, EN STD 61010-1; RoHS compliant
Once triggered, latches on,
until power is removed
(VDC)
