RLE SeaHawk SD Series Quick Start Manual

QUICK START GUIDE

General Installation for all Spot Detectors

Determine a location. Ram set 6/32 threaded studs in floor on 2.5 inch (63.5mm) centers. Place SD over
studs and secure. Adjust the sense probes to desired height.

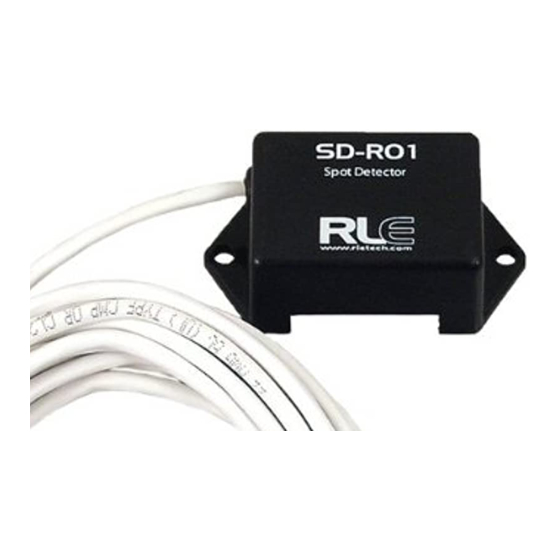

SD – Spot Detector
Installation
Connect the white/red and black leads to the FMS, F-Series RA1x2 or LDRA6 panel. Test the SD by placing
water under the sense probes. Note: Powered by RLE products only.
SD-Z – Zone Spot Detector
Installation
Connect the SD-Z to the LD control panel by connecting the two cable connectors to SeaHawk Water Leak
Detection Cable (SC), or SeaHawk Non-Sensing Cable (NSC), or an end-of-line terminator (EOL). Test the
SD-Z by placing water under the sense probes. SD-Z simulates 50 feet (15.24m) of SC cable: 25 feet in and
25 feet out (7.62m in/out) from device.
SD-Z1– Zone Spot Detector
Installation
Connect the SD-Z1 to the LD control panel by connecting the four conductor cable to the cable interface
terminal block. Test the SD-Z1 by placing water under the sense probes. SD-Z1 simulates 50 feet (15.24m)
of SC cable: 25 feet in and 25 feet out (7.62m in/out) from device.

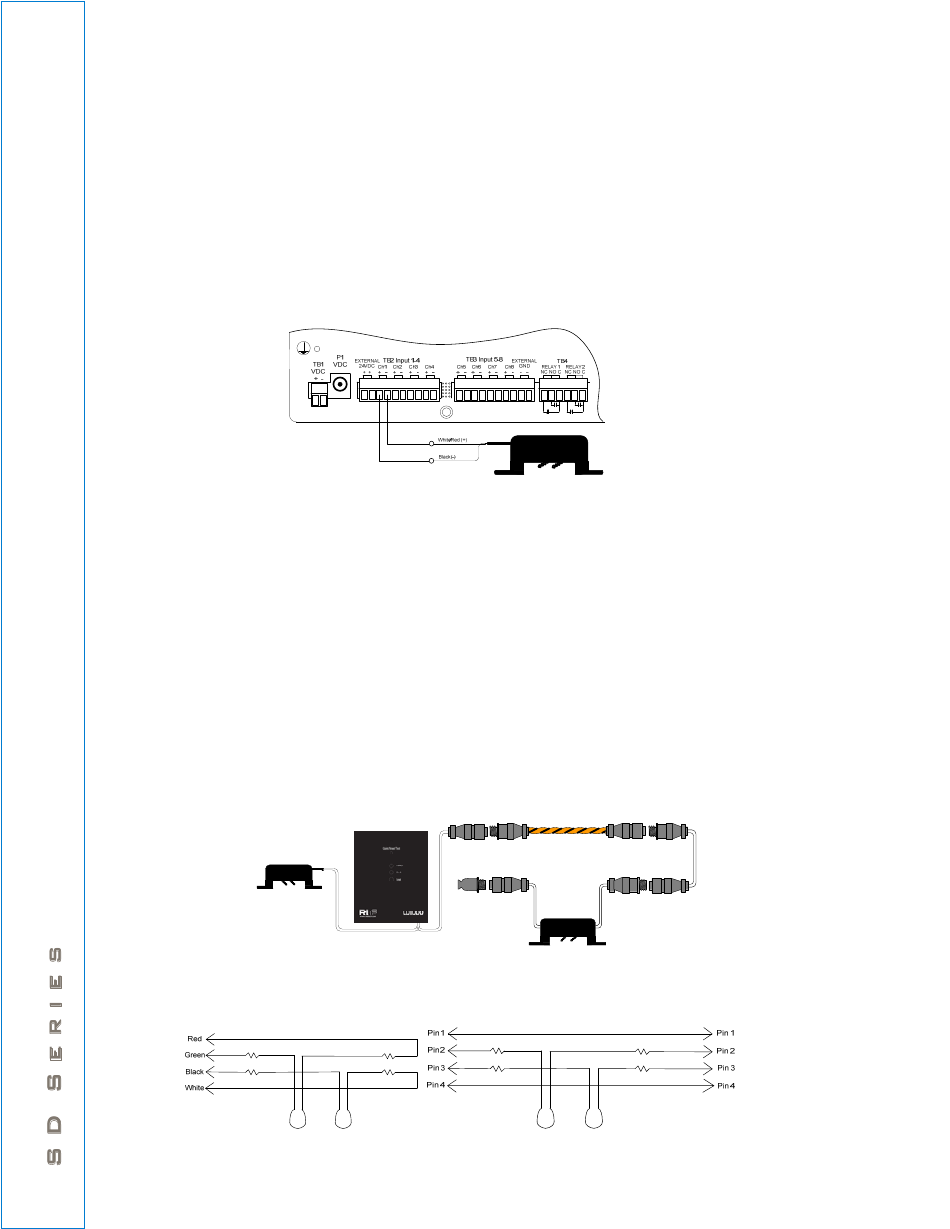

Figure 2: Basic Installation Components for SD-Z and SD-Z1
Figure 3: SD-Z1 Internal Circuit
S D s e r
Figure 1: SD and Falcon Wiring
Figure 4: SD-Z Internal Circuit
