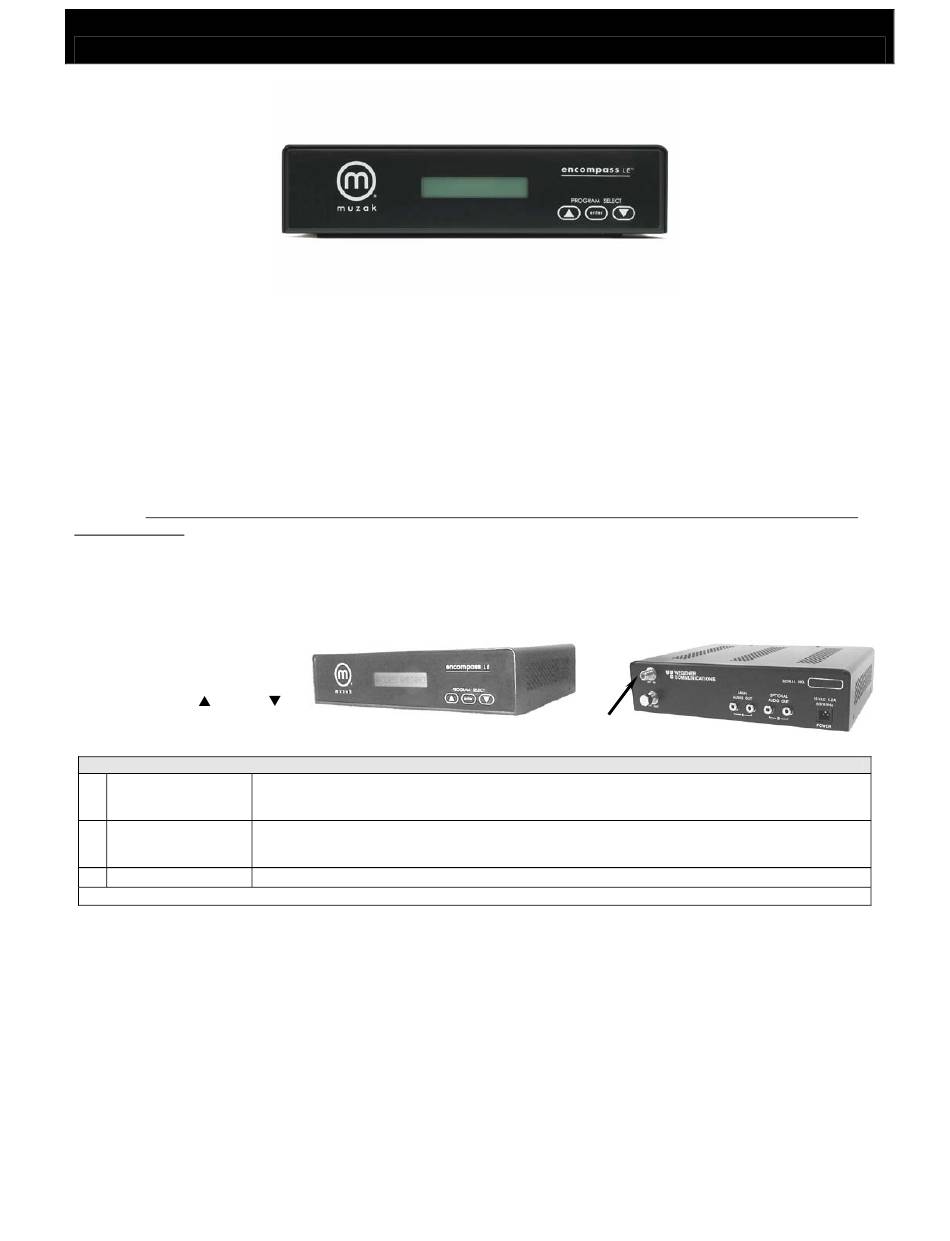

E N C O M P A S S L E – Q U I C K S T A R T G U I D E
The ENCOMPASS LE™ is a digital satellite receiver that will receive signal from AMC-1 - vertical polarity. The receiver is
designed to be virtually "plug and play" once it is connected to a correctly pointed satellite antenna.
Your box should include:
1.
The ENCOMPASS LE satellite receiver
3.
Power Module, Input: 120VAC 60 Hz .4 A -
Output: 18 VAC, 1.2 A
The system has been designed to utilize an .84-meter downlink antenna. If you need pointing coordinates for AMC-1, please
contact the Muzak Network Operations Center (NOC) at 800 327.6549. You can also go to http://noc.muzakcitycenter.com
to obtain pointing information for a list of cities across North America. A polarity chart is attached to the back of this
document. Properly adjusting the antenna's azimuth, elevation and polarity is critical to achieve good signal performance at
the downlink site.
When the receiver locks to the signal for the first time in a new installation, it will switch programs continuously until the unit is
authorized by Muzak NOC 800 327.6549 or through the web interface (http://www.muzakcitycenter.com). This also applies
to receivers that have been removed from service. Important note: The receiver must be successfully locked to the AMC-1
carrier before it can be authorized. Instructions below help verify this status.
The ENCOMPASS LE is a fully
addressable receiver with a front-
panel display and three front-
panel buttons, (up)
, (down)
and enter
ENCOMPASS LE Receiver Connections – Reference above right picture
1
Power
2
Audio Output
3
RF Input
Warning: An RF INPUT and RF OUTPUT are provided on the unit. The signal quality is degraded if the input is placed on the "RF OUT."
P/N 800011 Rev. B
Using the enclosed power module (only), connect the appropriate end to the encompass LE rear panel port
labeled "POWER". Connect the other end into an appropriate 105-130 VAC, 60 Hz, three-pronged power
outlet.
Connect to "MAIN AUDIO OUT" set "A". The incoming audio service is mono and the same channel is
present on both "A" outputs. Note: The "OPTIONAL AUDIO OUT" or "B" output set are for expansion by
adding the optional encompass LE audio storage card.
Connect the coaxial cable from the LNB to the encompass LE "RF IN." This is the top "F" connector.
2.
This one-page installation guide
4.
Required UL Safety Sheet
RF In
