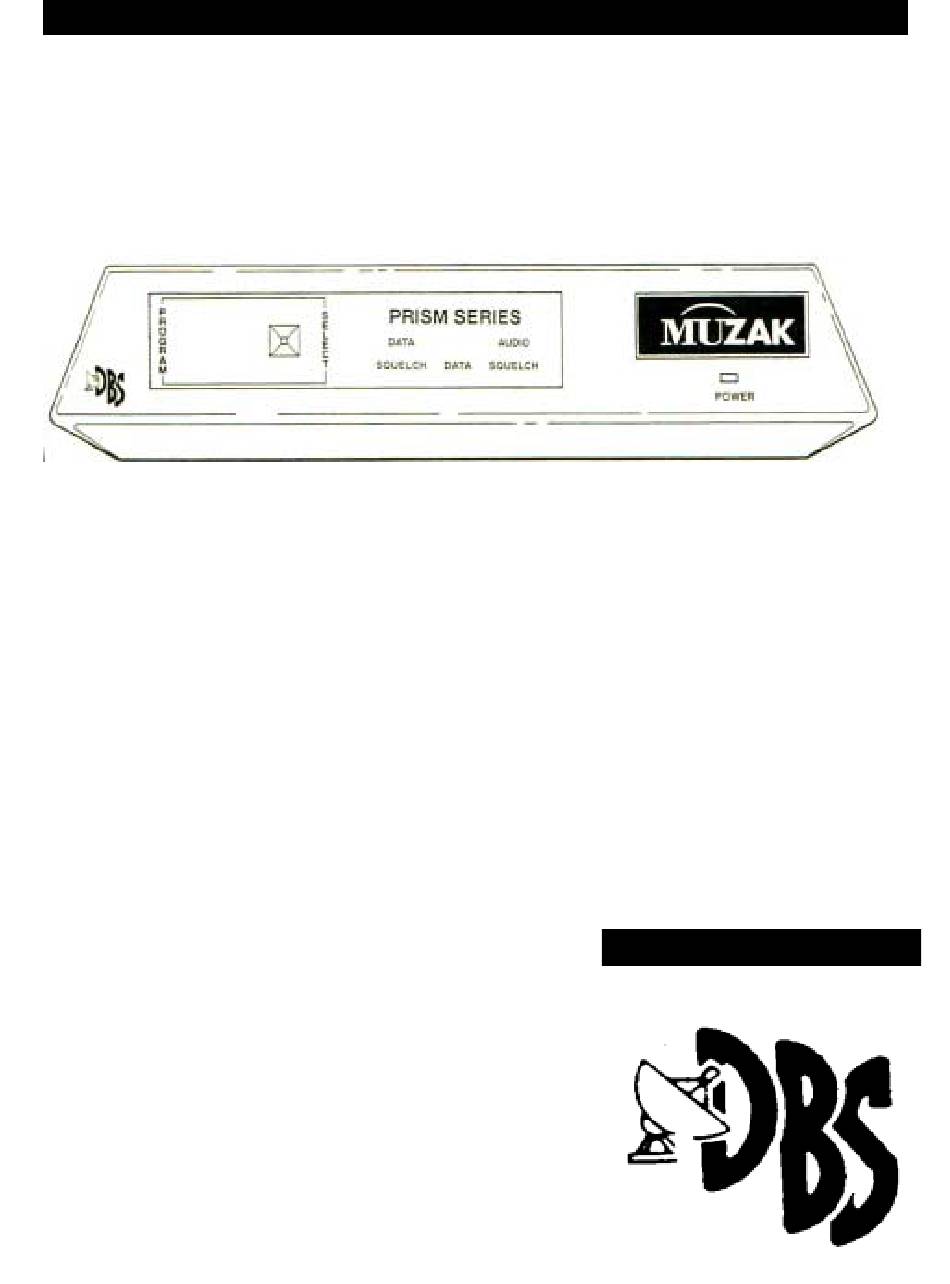

MUZAK ADDRESSABLE SATELLITE RECIEVER – PRISM SERIES
MU1797 – MULTICHANNEL
MU1597 – SINGLE CHANNEL
INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBS PRISM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Muzak DBS PRISM Series

  • Page 1 MUZAK ADDRESSABLE SATELLITE RECIEVER – PRISM SERIES MU1797 – MULTICHANNEL MU1597 – SINGLE CHANNEL INSTALLATION GUIDE...
  • Page 2 Warning! To avoid shock or fire do not plug in or handle near water. Do not open unit. If repairs are needed, send unopened unit to the authorized MUZAK service center. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
  • Page 3: Table Of Contents

    not attached to a building should be tethered with a guide wire or similar material. Table of contents Features……………………………………………..……………………….. 2 Receiver Setup ……………………………………………………………… 3 Troubleshooting ……………………………………………………………. 4 Technical Specifications …………………………………………………… 5 Warranty……………………………………………………………………. 7...
  • Page 4: Features

    FEATURES 13 14 1. Channel Indicator 9. Aux. output terminal strip 2. Channel Select Touch Switch 10. Serial Data Output 3. Data Squelch Indicator 11. Fuse MDL 3/8A 250V 4. Data Active Indicator 12. Audio Level Adjust 5. Audio Squelch Indicator 13.
  • Page 5: Receiver Setup

    RECEIVER SETUP 1. Plug the power cord into a 110 vac wall outlet. 2. Conditions after the receiver has AC applied to it. A. POWER light will be green. B. AUDIO SQUELCH light will be red. C. DATA SQUELCH light will be red. D.
  • Page 6: Troubleshooting

    TROUBLESHOOTING PROBLEM: Receiver does not operate. Power indicator does not light. CHECK: 1. That the a.c. power cord is plugged in. 2. That power is present at the a.c. outlet. 3. That the power fuse is not blown. PROBLEM: Output not present, but the POWER L.E.D. is lit. The SQUELCH L.E.D’s are on. The SIGNAL LEVEL output is low.
  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS R.F. INPUT Frequency Range 950 to 1450 MHz Frequency Selection 500 kHz Steps, Synthesized Input Level -20 to –65 dBm Noise Figure 18 dB Maximum I.F. SECTION Frequency 70 MHz Bandwidth 16 MHz @ 1dB Demodulator Threshold 7 dB typical RF CHANNEL CHARACTERISTICS Subcarrier Frequency Range .1 to 5.5 MHz...
  • Page 8 Power Green L.E.D. = Power On Data Red L.E.D. = Receiving Data No L.E.D. = Data Inactive Audio Squelch No L.E.D. = Channel Active Red L.E.D. = Channel Muted TECHNICAL SPECIFICATIONS INDICATORS Data Squelch No. L.E.D. = Channel Active Red L.E.D. = Channel Muted INPUT CONNECTOR R.F.
  • Page 9: Warranty

    This unit is warranted for a period of one year after the date of original installation to the original purchaser against all defects not incurred by misuse or mishandling. If questions should arise concerning this equipment, please call MUZAK at 1-800-543-6549.
