NABRICO

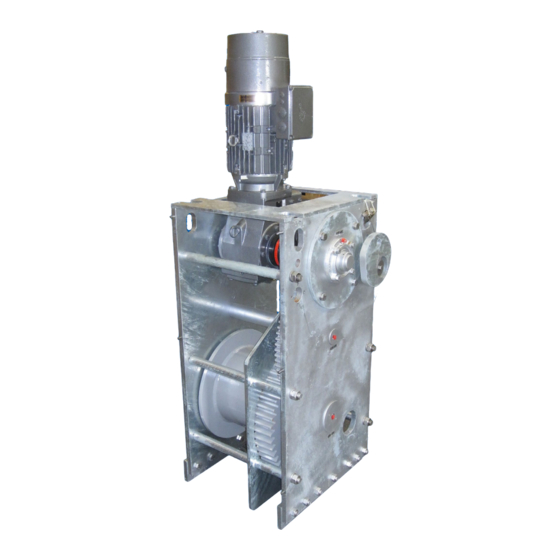

DF-1 ND Electric Winch Owner's Manual
OM-DF1-017-G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Nabrico DF-1 Series

  • Page 1 NABRICO DF-1 ND Electric Winch Owner’s Manual OM-DF1-017-G...
  • Page 2 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 3: Table Of Contents

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual NABRICO DF-1-ND ELECTRIC MANUAL WINCH Owner’s Manual CONTENTS SAFETY INFORMATION ..................4 1.1 GENERAL INFORMATION ................5 1.2 INSTALLATION OF EQUIPMENT ..............6 1.3 ELECTRIC POWER CONNECTION ............... 8 1.4 INSTALLATION OF WIRE ROPE ..............9 2.1 OPERATING THE WINCH ................
  • Page 4: Safety Information

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual SAFETY INFORMATION CAUTION Prior to installing and operating the winch, please read this manual thoroughly and carefully. Keep this manual and all other instructions accessible at all times. The Occupational Safety and Health Act of 1970 states that it is the employer’s responsibility to provide a workplace free of hazard.
  • Page 5: General Information

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 1.1 GENERAL INFORMATION THE RIGHT CHOICE WHEN YOU NEED TO DF-1 ELECTRIC WINCH Features & Specifications • Salt water package standard on all power winches. • Stainless or silicon bronze fasteners. • 3-ply conveyer belt covers (damage and corrosion resistant).
  • Page 6: Installation Of Equipment

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 1.2 INSTALLATION OF EQUIPMENT NOTICE It is the responsibility of the customer, not the winch manufacturer, to properly locate and install the winch with regard to the safety of those operating the machinery.
  • Page 7 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 1.2.4 Maintain a fleet angle no greater than 1-1/2 degrees from winch drum to lead sheave (see appendix 1). The proper fleet angle helps to minimize wire rope damage by assisting the wire rope to wind uniformly onto the drum.
  • Page 8: Electric Power Connection

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 1.3 ELECTRIC POWER CONNECTION CAUTION All electrical work must be performed by a licensed electrician. Failure to do so could result in electric shock or poor equipment operation. 1.3.1 All winches have been factory tested prior to shipment to insure proper operation.
  • Page 9: Installation Of Wire Rope

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 1.4 INSTALLATION OF WIRE ROPE 1.4.1 To install wire rope, rotate the drum of the winch so that the U-bolt nuts are easily accessed through the round cut out located on the side of the winch (see fig. 2a).
  • Page 10 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 1.4.6 Tighten the U-bolt nuts evenly to secure the wire rope to the winch drum. The U-bolt will act as a vise keeping the wire rope in place as the rest of the rope is reeled onto the winch.
  • Page 11: Operating The Winch

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 2.1 OPERATING THE WINCH 2.1.1 Powered Operation 2.1.1.1 To reel the wire rope onto the winch drum, depress and hold the “IN” button located on the control box or remote operator station. Make certain that the locking pawl is disengaged by rotating the locking pawl handle to the up position and inserting the T handle locking pin to secure in place (see fig.
  • Page 12 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 2.1.2 Emergency Operation WARNING Manual operation of an electric winch while under load is extremely dangerous and should only be performed in emergency situations. The extreme high tensions that are common in winch applications should not be underestimated.
  • Page 13 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual FIGURE #4 - EMERGENCY OPERATION SHAFT ASSEMBLY BUSHING HEX JAM LOCK NUT ENGAGED POSITION STOWED POSITION SCALE 2" = 1'-0" SCALE 2" = 1'-0" OM-DF1-017-G SCALE: THIRD ANGLE PROJECTION: THIS DRAWING IS THE PROPERTY OF NABRICO/TRINITY 1 : 1 MARINE PRODUCTS, INC.
  • Page 14: Equipment Inspection

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 3.1 EQUIPMENT INSPECTION NOTICE An inspection program should be started as soon as any equipment is put into service. A qualified person should be appointed the responsibility of regularly inspecting the equipment. Written records of inspections are recommended by the manufacturer.
  • Page 15 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 3.1.2.6 Disconnect power and thoroughly inspect electrical equipment for signs of wear, cuts, corroded connections, moisture, burn marks and other damage. 3.1.2.7 Check the power supply at the motor to ensure that it is consistant with the motor rating.
  • Page 16: Equipment Lubrication

    Lubricate the spur gears before each operation, and periodically during operation. Failure to lubricate the gears will cause damage or deformation of gear teeth. 3.2.1 All grease fittings should be lubricated using NABRICO’s suggested lubricants or similar (See Appendix 2).
  • Page 17: Cleaning And Storage

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 3.3 CLEANING AND STORAGE 3.3.1 Cleaning the Equipment 3.3.1.1 The equipment should be regularly cleaned to remove dirt and to help prevent rust and corrosion. 3.3.1.2 When cleaning, be sure to leave a light film of oil on all surfaces to protect them against the elements of nature.
  • Page 18: Fleet Angle

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual A.1 FLEET ANGLE Fleet Angle: In order to insure proper wrapping on the drum and no undue wear of the wire rope, the fleet angle should be kept as small as practical. This is important to consider during the planning of a winch installation.
  • Page 19: Equipment Lubrication

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual A.2 EQUIPMENT LUBRICATION RECOMMENDED LUBRICANT FOR USE WITH NABRICO DECK MACHINERY HYDRAULIC OIL (OPEN LOOP) ENVIROLOGIC 3032 SPUR, HELICAL GEARS ENDURATEX EP220 ALL WORM GEARS ENDURATEX EP 220 EUREKA FLUID FILM SPRAY OPEN GEARING (SPRAY CAN)
  • Page 20: Typical Control Box Information

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual B.1 TYPICAL CONTROL BOX INFORMATION OM-DF1-017-G...
  • Page 21 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual OM-DF1-017-G...
  • Page 22 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual OM-DF1-017-G...
  • Page 23 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual OM-DF1-017-G...
  • Page 24 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual E E E E H H H H F F F F S S S S A A A A 05 05 05 05..0601 0601 0601 0601- - - - 4 4 4 4 ...
  • Page 25 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual   A        ・ ・ ・ ・               ・ ・ ・ ・ ...
  • Page 26 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual    ・ ・ ・ ・       72  61  OM-DF1-017-G...
  • Page 27 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual     *            *          %  ~*    ...
  • Page 28 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual      • -+℃ • :~ • : • : •     •            Attachment  2-M4 63...
  • Page 29 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual                                 ...
  • Page 30 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual     ① ③   ②                                ...
  • Page 31 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual                              %             %     ...
  • Page 32 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual                                         ...
  • Page 33: Dimensional (Shaft Mounted)

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual C.1 DIMENSIONAL (SHAFT MOUNTED) M32/1"NPT M32/1"NPT ØF ØH WIRE ROPE MODEL ØF ØH DF-1-30 22” 19-3/8” 23” 39” 57-1/2” 10-3/4” 11” 16” DF-1-40 23-1/4” 20-1/8” 24” 46-1/8” 70” 12-3/4” 11-1/4” 19” DF-1-50 23-1/4”...
  • Page 34: Parts Breakdown (Shaft Mounted)

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual C.2 PARTS BREAKDOWN (SHAFT MOUNTED) OM-DF1-017-G...
  • Page 35 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual DF-1-40/50-ND Electric Winch Parts List DF-1-40/50-ND Electric Winch Parts List Winch Parts Fasteners and Etc. Part Description Qnt'y Part #'s Part Description Qnt'y Part #'s Pipe Separator 69582 Hex Nut 3/4" (SS) Drum Shaft 69795 Hex Head Bolt 1/2"...
  • Page 36 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual OM-DF1-017-G...
  • Page 37 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual DF-1-65-11-ND Electric Winch Parts List DF-1-65-11-ND Electric Winch Parts List Winch Parts Fasteners and Etc. Part Description Qnt'y Part #'s Part Description Qnt'y Part #'s Drum Washer 69817 Hex Head Bolt 1/2" x 2" (SS)
  • Page 38: Gearmotor Technical Information (Shaft Mounted)

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual C.3 GEARMOTOR TECHNICAL INFORMATION (SHAFT MOUNTED) GENERAL INSTRUCTIONS DRIVESYSTEMS RETAIN FOR FUTURE USE U10000 - 1 of 2 1. Importance of the operating instructions 3. Obtaining detailed operating instructions These operating instructions are intended to provide general One can receive the detailed installation and maintenance information and safety guidelines.
  • Page 39 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual GENERAL INSTRUCTIONS DRIVESYSTEMS RETAIN FOR FUTURE USE U10000 - 2 of 2 5. Notes concerning warranty and liability 6. Checklist for installation and operation All units are supplied according to the terms described in ...
  • Page 40 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual SAFETY NOTES DRIVESYSTEMS RETAIN FOR FUTURE USE U10020 - 1 of 2 1. Safety & information symbols 3. Observe published performance range & nameplate data All work including transportation, storage, installation, elec- HARMFUL SITUATION...
  • Page 41 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual HELICAL & BEVEL REDUCER LUBRICATION RETAIN FOR FUTURE USE DRIVESYSTEMS U10750 - 1 of 2 1. Importance of proper lubrication 3. Lubrication replacement Proper gearbox lubrication is essential in order to reduce If the gear unit is fi lled with mineral oil, the lubricant should friction, heat, and component wear.
  • Page 42 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual HELICAL & BEVEL REDUCER LUBRICATION RETAIN FOR FUTURE USE DRIVESYSTEMS U10750 - 2 of 2 6. The importance of routine oil analysis 9. Drain and fi ll-level plugs Routine oil analysis, sound lubrication practices, and good All reducer drain plugs are metric socket head cap screws.
  • Page 43 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual HELICAL & BEVEL REDUCER LUBRICATION TYPES RETAIN FOR FUTURE USE DRIVESYSTEMS U11000 - 1 of 2 Lubrication Tables – Helical and Bevel Gear Units Standard Oil Lubricants ISO Viscosity Oil Type Ambient Temperature Range...
  • Page 44 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual HELICAL & BEVEL REDUCER LUBRICATION TYPES RETAIN FOR FUTURE USE DRIVESYSTEMS U11000 - 2 of 2 Oil Cross-reference Chart Ambient Temperature Viscosity Type Range Shell Castrol Mobilgear Omala Alpha Renolin Klüberoil MIN-EP 0 to 25ºC (32 to 77ºF)
  • Page 45 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 90.1 HELICAL-BEVEL FLANGED OIL FILL QUANTITIES RETAIN FOR FUTURE USE U12100 - 1 of 1 90.1 Helical-bevel flanged lubrication Unless otherwise noted below, the following NORD Gear reducers are shipped from the factory with a pre-determined oil fill level in accordance to the specified reducer size and mounting position.
  • Page 46 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 90.1 HELICAL-BEVEL OIL PLUG & VENT LOCATIONS DRIVESYSTEMS RETAIN FOR FUTURE USE U14400 - 1 of 1 Oil plug connections Prior to commissioning the reducer, check the oil-fi ll level using the reducer’s oil-level plug and drain or add additional oil as needed.
  • Page 47 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual BIM 1001 Hollow Shrink Disc Shaft Installation and Maintenance Instructions Retain These Safety Instructions For Future Use Installation Instructions: to 1/2 turn at a time until specified tightening torque (per Mating shaft tolerances are normally tighter for shrink discs table) is reached.
  • Page 48 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual Customer shaft diameter toIerance with Shrink Disc fit h6 Tightening Torques for Locking Screws Metric (mm) Locking Screws (Bolts) Bore Size ≤ ∅ 18 = +0.000/-0.011 Shrink Disk Torque Inches > ∅ 18 ≤ ∅ 30 = +0.000/-0.013...
  • Page 49 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual RIGHT-ANGLE SHAFT-MOUNT WITH TORQUE ARM (D) RETAIN FOR FUTURE USE U10600 - 1 of 2 1. Torque arm (D) 3. Machine support The preferred method of installing a shaft-mounted reducer The user must supply a suitably strong and rigid mating ma-...
  • Page 50 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual TROUBLESHOOTING DRIVESYSTEMS RETAIN FOR FUTURE USE U19000 - 1 of 1 Troubleshooting This section identifi es some of the most common issues involved with NORD Gear speed reducers , and provides recommendations to assist you in defi ning and answering your questions as you work with our products. You may also contact our Engineering/Application departments if your questions are not answered in the table below.
  • Page 51 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 90.1 HELICAL-BEVEL PARTS LIST DRAWINGS DRIVESYSTEMS RETAIN FOR FUTURE USE U15300 - 5 of 10 CUT PINION SHAFT PRESS-ON PINION SHAFT TYPE "A" 760* TYPE "AS" 761* 760* TYPE "A" 761* SK 9012.1 - SK 9096.1 - Shaft Mounted TYPE "AS"...
  • Page 52 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 90.1 HELICAL-BEVEL PARTS LIST DRAWINGS DRIVESYSTEMS RETAIN FOR FUTURE USE U15300 - 6 of 10 SK 9012.1 - SK 9096.1 - Shaft Mounted 701 Gear 722 Anti-Friction Bearing 746 Key 702 Pinion Shaft...
  • Page 53 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual MOTORS - AC INDUCTION, SINGLE & POLYPHASE RETAIN FOR FUTURE USE U30000 - 14 of 17 Parts List If you are ordering a part, provide the model and order number (table 1, page 2) of your motor. This will determine the specific part number you need.
  • Page 54 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual MOTORS - AC INDUCTION, SINGLE & POLYPHASE RETAIN FOR FUTURE USE U30000 - 9 of 17 15. Wiring Diagrams NORD Frames 63-225 NORD mfg by Siemens - Frames 200 + NORD mfg by Siemens - Frames 200 + 230 / 460V, 60Hz, 3Ø...
  • Page 55 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual MOTORS - AC INDUCTION, SINGLE & POLYPHASE RETAIN FOR FUTURE USE U30000 - 10 of 17 15. Wiring Diagrams Ctd. * NC (NORMALLY CLOSED) * MAX. OPERATING TERMINAL TERMINAL FROM MOTOR FROM MOTOR...
  • Page 56: Dimensional (Flange Mounted)

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual D.1 DIMENSIONAL (FLANGE MOUNTED) Right Hand Winch Shown Left Hand Winch Opposite Part Overall Drum Drum Flange Length Width Height Weight Model Number Length "D" Dia. "E" Width "F" Dia. "G" "A" "B"...
  • Page 57: Parts Breakdown (Flange Mounted)

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual D.2 PARTS BREAKDOWN (FLANGE MOUNTED) OM-DF1-017-G...
  • Page 58 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual DF-1-40-ND Electric Winch Parts List DF-1-40-ND Electric Winch Parts List Winch Parts Fasteners and Etc. Part Description Qnt'y Part #'s Part Description Qnt'y Part #'s Cover Plate (shaft mount bearing cut-out) Hex Head Bolt 3/4-10 NC x 1-1/2" (SS)
  • Page 59: Gearmotor Technical Information (Flange Mounted)

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual D.3 GEARMOTOR TECHNICAL INFORMATION (FLANGE MOUNTED) REDUCER MOUNTING FOOTED & FLANGE MOUNT GEAR UNITS RETAIN FOR FUTURE USE U10500 - 1 of 2 1. Foot-mounted reducers Table : Flange Pilot Tolerance Above To &...
  • Page 60 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual REDUCER MOUNTING FOOTED & FLANGE MOUNT GEAR UNITS RETAIN FOR FUTURE USE U10500 - 2 of 2 3. Flange-mounted reducers (with B14 flange) 4. Foot & flange reducer housings When using the B14 flange to mount the gear unit, the bulk...
  • Page 61 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 90.1 HELICAL-BEVEL PARTS LIST DRAWINGS DRIVESYSTEMS RETAIN FOR FUTURE USE U15300 - 3 of 10 CUT PINION SHAFT PRESS-ON PINION SHAFT 760* 761* 760* TYPE "A" 761* SK 9012.1 - SK 9096.1 - Flange Mounted TYPE "AS"...
  • Page 62 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual 90.1 HELICAL-BEVEL PARTS LIST DRAWINGS DRIVESYSTEMS RETAIN FOR FUTURE USE U15300 - 4 of 10 SK 9012.1 - SK 9096.1 - Flange Mounted 701 Output Gear 720 Key 744 Flange 702 Pinion Shaft...
  • Page 63: Dings Electric Brake Technical Information

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual E.1 DINGS ELECTRIC BRAKE TECHNICAL INFORMATION Bulletin No. BK4773-3 (02/2016) 70 Series 8700 End-Mount 3 Phase Brake Instructions IP56 (NEMA 4) Housing Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information.
  • Page 64 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual Figure.1 Brake Outline RECOMMENDED TOOLS AND HARDWARE NOTE: The following tools and hardware are required for installing the brake onto a motor or mounting bracket. Use proper torque when required to ensure fasteners do not loosen during operation.
  • Page 65 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual REPLACEMENT PARTS LIST (See Figure 2) MODEL ITEM DESCRIPTION PART NO. Bracket assembly, 1&2 disc K070579-XXX Bracket assembly, 1&2 disc with hub seal K070579-XXX Bracket assembly, 3 disc K070580-XXX Bracket assembly, 3 disc with hub seal...
  • Page 66 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual EXPLODED VIEW (See Table 1) Figure 2 - Exploded View of Brake 4740 W. ELECTRIC AVE. • MILWAUKEE, WISCONSIN 53219 • 414/672-7830 • FAX 414/672-5354 • www.dingsbrakes.com BK4773-3 (02/2016) OM-DF1-017-G...
  • Page 67: Dings Brake (Previous Version)

    NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual F.1 DINGS BRAKE (PREVIOUS VERSION) Bulletin No. BK4704 (5/15) 70 Series 2 Post Nema 4 Enclosure Brake Instructions Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information.
  • Page 68 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual INSTALLATION WEAR ADJUSTMENT (See Figures 1 & 3) (See Figures 1 & 3) Magnet gap “D” increases as friction discs wear. When gap approaches STEP 1 “D” max., adjust gap to “D” min. dimension by turning nuts (21 and 20).
  • Page 69 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual Table 1. Parts List MODEL ITEM DESCRIPTION PART NO. Bracket – 1 Disc L070083-001 Bracket – 2 Disc L070083-002 Bracket – 3 Disc L070083-003 Bracket – 4 Disc L070083-004 Stud – 1 Disc G070213-001 Stud –...
  • Page 70 NABRICO DF-1 ND ELECTRIC WINCH Owner’s Manual FRICTION DISC REPLACEMENT MAGNET COIL REPLACEMENT (See Figures 1 & 3, Table 1) (See Figures 3 & 4) *When the rotating friction disc (3) wears down to a thickness of 7/32”, Remove magnet assembly as outlined under FRICTION DISC replace disc.
  • Page 71: Product Warranty

    NABRICO shall have no obligation or responsibility to repair or replace any defective NABRICO product if a notice of defect is not reported in writing to NABRICO within 180 days from the date of shipment of any NABRICO Winch Products and 90 days from the date of shipment of any other NABRICO Products (such 180 day and 90 day periods are hereinafter referred to as “Warranty Period”).
  • Page 72: Nabrico

    NABRICO 1250 GATEWAY DRIVE GALLATIN, TN 37066 615.442.1300 615.442.1313 fax www.nabrico-marine.com WINCHES HATCHES BITTS ELECTRIC WATERTIGHT DOUBLE BITT HYDRAULIC TWIST LOCK SINGLE BITT MANUAL QUICK ACTING THRU-DECK BITT CAPSTANS DOORS KEVELS HYDRAULIC 6 DOG MANUAL KEVEL CHOCK ELECTRIC QUICK ACTING...

This manual is also suitable for:

Df-1-30Df-1-40Df-1-50Df-1-65Df-1-100
