MS STB 01 PRO
STEREO ARRAY MICROPHONE BAR
SAFETY INFORMATION
1. Please read these instructions carefully before you start installation
and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other
information from the equipment.
5. Be attentive when setting up the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead
to product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal
of packaging, please separate plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings,
please contact your local distributor.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARA-
TIONS_GRAVITY.pdf
To request warranty service for a product, please contact Adam Hall GmbH,
Adam-Hall-Str. 1, 61267 Neu Anspach / Email Info@adamhall.com /
49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste
separation)
This symbol on the product, or the documents accompanying the product,
indicates that this appliance may not be treated as household waste. This is
to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and
have it recycled to promote sustainable economic activity.
Adam Hall GmbH · Adam-Hall-Str. 1· 61267 Neu-Anspach · Germany
Tel.: (+49) 60 81 / 94 19 0 · Fax: (+49) 60 81 / 94 19 1000 · eMail: mail@adamhall.com
FEATURES
• Stereo array bar for 2 microphones
• Adjustable microphone spacing 6 - 29 cm
• Microphone swivel range +/- 90°
• +/- 90° tilt range
• Easy-to-read markings for precise adjustment
• ORTF markings
• Strong aluminum construction
• Suitable for standard size and large diaphragm microphones

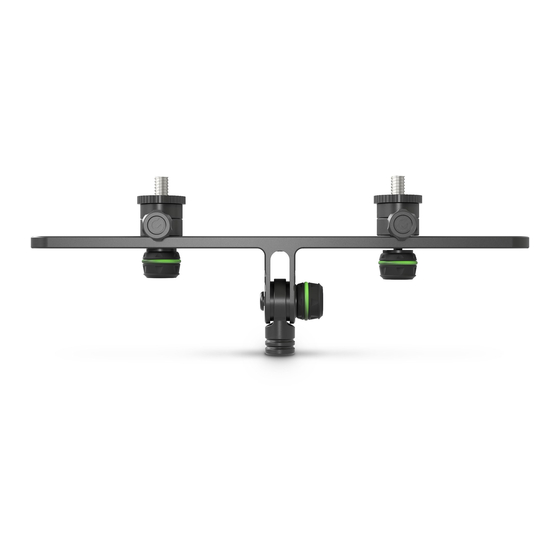

DESCRIPTION
Enabling accurate and easily repeatable two-microphone stereo recording
arrays, the Gravity Stereo Bar is a real precision instrument. It allows for exact
spacing of the sliding microphone mounts from 6 to 29 cm, +/- 90° micro-
phone orientation on the horizontal axis and +/- 90° tilt of the entire bar. Easy-
to-read spacing and angle markings facilitate fast and precise positioning,
taking notes of your settings and recreating them without effort. Set screws
with ergonomic soft-touch knobs securely lock the adjustable parts in the
desired position.
The Gravity Stereo Mic Bar is suitable for common stereo recording tech-
niques including ORTF, DIN, XY and AB patterns and mounts on any mic
stand. It is engineered from strong yet lightweight aluminum and easily able
to support two large diaphragm microphones.
SPECIFICATIONS
Product number
GMSSTB01PRO
Product type
Stands and Tripod Accessories
Material
Aluminum
Color
Black
Horizontal
60 - 290 mm
adjustment range
Threaded
3/8 "
connector
Material thickness
8 mm
Swivel range
360 °
Tilt angle
-90° - +90° °
Length
330 mm
Weight
0.8 kg
