Sercel GRC ESP Series Field Installation Manual page 8

The end of the 3-phase cable will come out somewhere in the center of the ESP
cable spool as shown in Figure 1 above. Follow the steps below to test the gauge
through the ESP cable spool once the cable has been connected to the motor.
 Since the SCOUT is powered by 110 VAC, an external power supply will be
needed.
 Do not set the SCOUT on the Spooling unit as shown on this trailer.
 ONLY CONDUCT THIS CHECK WHILE THE SPOOL IS NOT MOVING.
 NEVER AT ANY TIME STEP OVER THE 3 PHASE ESP CABLE.
1. Connect the red wire (gauge signal wire) to one of the 3 phase leads.
2. Connect the white or black wire (ground) to the shielding on the 3 phase cable.
3. Power on the SCOUT.
4. Record the parameter readings on the Fortress ESP Sensor Checklist given in
the Appendix of this Manual.
5. Repeat this for every 10 stands of completion tubing until the last tubing stand
has been assembled.
Doc No. 006-0211-00 Rev AD

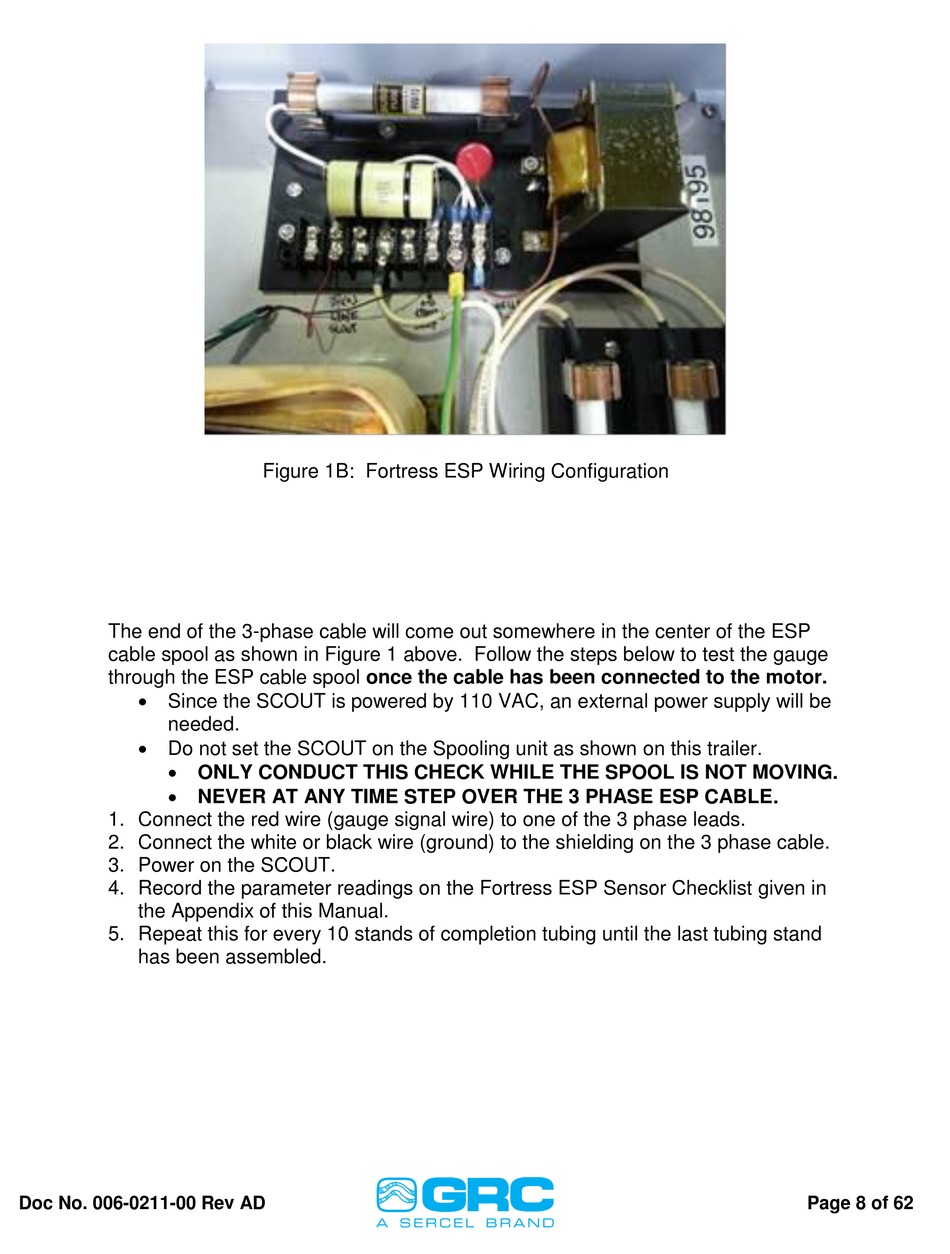

Figure 1B: Fortress ESP Wiring Configuration
Page 8 of 62
