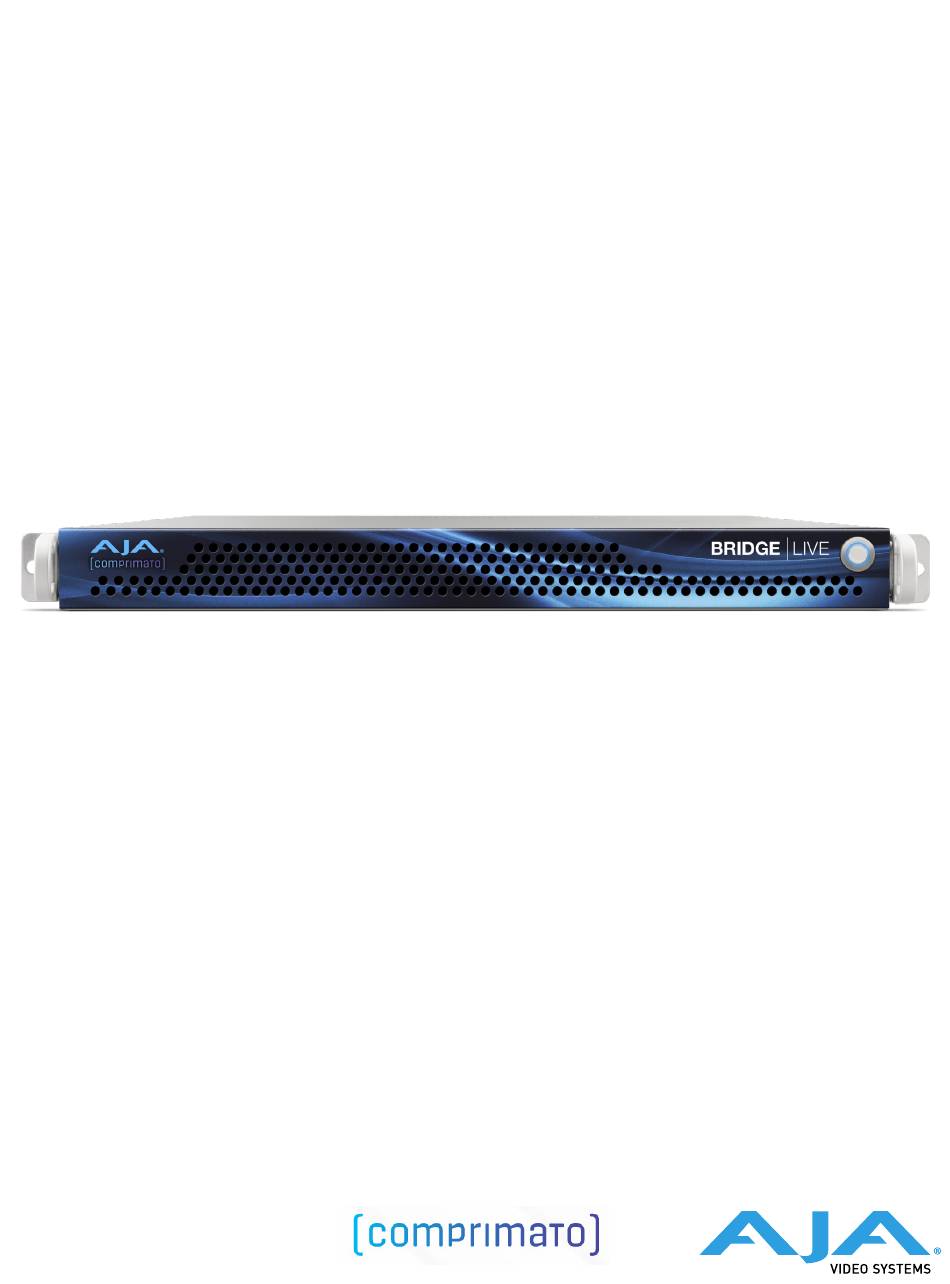

BRIDGE LIVE
Video I/O and Streaming Appliance
Installation and Operation Guide
Version 1.10
Published September 23, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRIDGE LIVE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJA BRIDGE LIVE

Summary of Contents for AJA BRIDGE LIVE

  • Page 1 BRIDGE LIVE Video I/O and Streaming Appliance Installation and Operation Guide Version 1.10 Published September 23, 2020...

  • Page 2: Notices

    AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc.

  • Page 3: Table Of Contents

    Copyright ..........2 Contacting AJA Support ........2 Chapter 1 –...
  • Page 4 Default Accounts ........67 BRIDGE LIVE Files Location ....... 67 System Services .
  • Page 5 Appendix A – Specifications ......77 BRIDGE LIVE Tech Specs ........77 Appendix B –...

  • Page 6: Chapter 1 - Using This Manual

    "Chapter 5 Basic Use Case: Streams to SDI Decoding" . Basics of outputting SDI from JPEG 2000. "Chapter 6 BRIDGE LIVE Features and Interface Deep Dive" . Covers the various parts of the UI or feature set not yet covered in detail, and contrasting various settings and options.

  • Page 7: Chapter 2 - Introduction To Bridge Live

    final distribution transcoding, all supported via public Internet. BRIDGE LIVE supports up to 4x HD, or 1x UltraHD through 1x 12G-SDI. It supports SRT, RTMP/S and MPEG-TS across JPEG 2K, H.265 (HEVC), H.264 (AVC, MPEG- 4), and H.262 (MPEG-2).

  • Page 8: Four Primary Use Cases

    Four Primary Use Cases BRIDGE LIVE is designed for four main use-cases, described in more detail below: 1. Live Streaming, 2. Video Transport/Contribution, 3. Encoding for Distribution, and 4. Production Encoding Live Streaming Encode for live streaming. Stream live events through Internet streaming services such as YouTube Live, Facebook Live, and Twitch.

  • Page 9: Metadata

    • Electronic program guide (EPG) on input Encoding and Decoding Protocols Supported Encoding BRIDGE LIVE supports encoding from SDI to Stream, and from SDI to JPEG 2K Stream (with optional license). See Table 1 and Table 2 below for encoding signal specifications.
  • Page 10 Table 4. JPEG 2K Stream to SDI Decoding (optional license) Supported Decode HD (1080p) UltraHD Protocols JPEG2K TR-01 4 simultaneous 1 up to 60p SRT, MPEG-TS 2018 4:2:2, 10-bit up to 60p (up to 800Mbps) (note: No RTMP/S) (80-220 Mbps) BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 11: Chapter 3 - Getting Started

    The default username is "admin". The password is unique for each system. Please see the QuickStart Guide that was included in the box with BRIDGE LIVE. If you have misplaced it or it is unavailable, please contact AJA Technical Support.

  • Page 12: Logging In Remotely With A Browser

    Browsers change over time as new functionality is added. In some cases, if you are using an older browser, you may experience some issues when trying to administer BRIDGE LIVE through its UI. If that happens, you will be notified that Figure you are using an old or unsupported browser, as pictured in BRIDGE LIVE Video I/O and Streaming Appliance v1.10...

  • Page 13: Dashboard Interface Basics

    Upper Right Quadrant - GPU utilization/CPU utilization Lower Left Quadrant - Services and devices status Lower Right Quadrant - Memory GPU/System RAM Lower Panel - Stream statistics including stream latency, FPS and FPS drops. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 14 NOTE: A "Pipeline" is the overall setup, from input source to decode, encode or transcode of output format(s). Beneath the AJA and Comprimato logos, in the top left of the interface, is a summary of the number of running Pipelines, beneath which are flags for Errors (Red) or Warnings (Yellow).
  • Page 15 If the stream is not allowed to produce an output, the license status reads “Blocked” or “Unavailable” and is shown red. BRIDGE LIVE will process the stream as usual, the only difference is that the output will not be sent to defined output sinks.
  • Page 16 • License: Unavailable – the stream needs a license which is not loaded (the stream contains a feature of newer version of BRIDGE LIVE which isn’t included in any loaded license) Upper Left Quadrant – Interfaces The first quadrant (upper left) refers to the I/O interfaces, whether that be SDI I/O or 10GbE I/O.
  • Page 17 Hardware temperatures are also reported. Figure 10. Services and devices status panel of Dashboard Lower Right Quadrant – Memory GPU/System RAM The lower right quadrant, Memory GPU/System RAM, reports memory consumption. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 18 See Figure 13 below. NOTE: Pipelines that are still being configured and have yet to be applied will not display in the stream statistics area. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 19: Beyond The Dashboard

    Figure Figure 14. BRIDGE LIVE UI - Stream Errors Beyond the Dashboard Besides the Dashboard, two other important areas of the interface are System Information and Stream Configuration.

  • Page 20: Stream Configuration

    Figure If you need to get back to the main Dashboard view, click on the AJA/Comprimato logos in the top left of the application window. BRIDGE LIVE Video I/O and Streaming Appliance v1.10...
  • Page 21 You can choose the input type – SDI input, network stream, or SRT protocol. If you select the SDI input, select the SDI card (AJA Corvid 44 12G BNC) and the Port for the video input.

  • Page 22: Chapter 4 - Basic Use Case: Sdi To Streams Encoding

    Creating a Pipeline to Encode Incoming Uncompressed SDI to Streams This chapter guides you through the basic steps for using BRIDGE LIVE to quickly set up a stream that encodes uncompressed SDI to H.262, H.264, H.265 or JPEG 2000. The steps below use mostly default settings. More detailed information about configuration options is included in "Chapter 6 BRIDGE LIVE Features and...
  • Page 23 After clicking OK, the new pipeline will be shown in the left column of Dashboard. Both half circles are gray indicating that the Pipeline is not active yet. Figure 21. The left column of Dashboard showing the newly named pipeline that you are setting up BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 24 For the Input stream configuration options, make selections for Type, SDI device, and Port. In this example, the following selections were made: • Type: SDI • SDI device: AJA Corvid 44 12G BNC - 0 • Port: Port #2 Auto-Detecting Video Streams In the lower-right area, click Apply configuration.
  • Page 25 From the Stream type drop-down menu, select the output stream type. The default value is MPEG-TS. RTMP(S) is also available and will be discussed in "Chapter 6 BRIDGE LIVE Features and Interface Deep Dive" on page BRIDGE LIVE Video I/O and Streaming Appliance v1.10...
  • Page 26 The Ethernet card selection is Loopback (Io) connected. Figure 30. Output stream sink configuration Output Stream Video Configuration Options Next, under the heading Output stream video configuration options, for Video codec, select H.264. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 27 Click Apply configuration. Figure 33. Apply configuration button BRIDGE LIVE takes just a few moments to process the settings. Once finished, the left column updates to show your newly created Pipeline -- SDI to Stream. The two green circle halves indicate that both the input and output sides of the Pipeline are running with no errors.

  • Page 28: Verifying Pipeline Configurations

    SRT to send the stream to an output stream sink device. For RTP/UDP or UDP, BRIDGE LIVE needs to be able to send the stream directly to the target location. If the target location is behind a router that blocks it, or if the target location is in a network behind NAT (network address translation), your target location will not be able to receive the stream.
  • Page 29 In the URL field, enter: srt:// Followed by the IP address and port number entered earlier under the Output stream sink heading. In our example, the VLC URL field would look like this: srt://198.169.208.120:5050 BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 30: Example Of Streaming To Youtube

    Click Open. VLC will open a new window displaying the live stream of the SDI source that you selected in your new BRIDGE LIVE pipeline. VLC may take a brief moment to open the new window. Example of Streaming to YouTube NOTE: The last steps about the stream URL and key are critical elements.

  • Page 31: Adding An Output Stream For Youtube

    9. Set Scan rate to match the video input scan rate (can be half for high frame rate inputs if desired). 10. Set Scan to progressive (YouTube prefers progressive video). 11. Under H.264 encoding options, set Coding to CABAC. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 32: Audio Settings

    4. Set Rate to 44100 Hz. 5. Set Audio bitrate to 128 kbit/s. Save setup. 6. Click YouTube Studio Live Streaming Page 1. Go to your YouTube Studio live streaming page. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 33 URL address with stream key 6. Go back to the RTMP field. 7. Add a “/” to end of the pasted URL address, then paste in the copied stream key. 8. Apply configuration. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 34 Figure 38. YouTube Studio Live Stream Page Now Streaming BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 35: Chapter 5 - Basic Use Case: Streams To Sdi Decoding

    Dashboard displays a page that presents Input and Output stream configuration options. Naming the Pipeline From the top of the Input stream configuration options column, click edit name, found immediately to the right of the text "Name your Pipeline." BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 36 Figure 42. The left column of Dashboard showing the newly named pipeline that you are setting up Selecting the Input Stream Source (JPEG 2000 Channel) Figure 43. Input stream source selection BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 37 • IP address: enter the IP address for the Ethernet card that is receiving the JPEG 2000 signal. Or set it to 0.0.0.0 (default). BRIDGE LIVE will interpret 0.0.0.0 as being equivalent to entering the IP address of the Ethernet card.
  • Page 38 Figure 48. Output stream options panel Selecting the Output Stream Sink Type Under the heading Output stream sink, select AJA Corvid 44 12G BNC - 0 from the SDI device drop-down menu. In this example, we have selected Port #1 to output the SDI signal.
  • Page 39 Apply configuration. From the lower right corner of Dashboard, click BRIDGE LIVE applies all your configuration settings and initiates the new pipeline. Figure 51. Apply configuration button After BRIDGE LIVE accepts your configuration settings, the left column will update to show the new pipeline. When both circle halves are green, the pipeline is running correctly.

  • Page 40: Chapter 6 - Bridge Live Features And Interface Deep Dive

    Interface Deep Dive Encoding Incoming Uncompressed SDI to Various Stream Types BRIDGE LIVE provides four channels of HD or a single channel of UltraHD for SDI input or output. When it comes to deriving streams from incoming uncompressed SDI sources, each SDI input can be output to multiple formats and/or destinations using H.264...
  • Page 41 Besides the mandatory options to direct the output to a specific network interface and a remote node, these settings have more attributes that impact the quality of the resulting stream. Figure 53. Output Streams Configuration BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 42 Internet and serves as a bridge between Flash player and a server. BRIDGE LIVE supports the RTMP output only in the H.264 video codec and the AAC audio codec. Some services, such as YouTube, do not accept RTMP streams without audio.

  • Page 43: Output Stream Sink

    Output Stream Sink Configure Sinks You can have multiple output stream sinks for each Pipeline. Type • RTP/UDP • UDP • SRT BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 44 SRT Alliance website: https://www.srtalliance.org BRIDGE LIVE supports 2 SRT modes of operation – Listener, and Caller. In other words, this is simply the client–server model. The Listener unit is configured to connect to its own local IP address that will be receiving data from the (external) Caller unit.

  • Page 45: Output Stream Video Configuration Options

    (especially older phones). • GOP size – distance between two I-frames • B count – number of B-frames between two P-frames BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 46 Enter a bitrate to define how much of the total bitrate is dedicated to video data. You can specify the units in terms of Mbit/s, kbit/s or bit/s. Scan Rate BRIDGE LIVE can either keep original frame rates or convert frame rates as required. Supported Frame Rate Conversions BRIDGE LIVE supports frame rate 50% down-conversion capabilities, for example: •...

  • Page 47: Output Stream Audio Configuration Options

    The configurator is shown in Figure 56. Figure 56. Audio Mapping Output Stream Metadata Configuration Options Displays and manages all metadata conversions or pass-through, such as SDI ancillary data to SMPTE-2038. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 48: Decoding Incoming Streams And Outputting Uncompressed Sdi

    1. When the input stream has a multicast address; 2. When the input stream is of type SRT and BRIDGE LIVE is set as the caller. Enter the IP address and port number that corresponds to where the input stream is being sent.

  • Page 49: Choosing The Program Number

    If a Configured program number is not present in the stream, BRIDGE LIVE reports an error. Once you change the program number and apply the configuration, video with another PID is detected (if present).

  • Page 50: Output Stream Cropping And Padding

    Figure 59. SDI Output Example Output Stream Cropping and Padding In order to address how you want BRIDGE LIVE to handle resolution change, use the Cropping/Padding configuration window to adjust settings for the input Configure cropping and padding video and output video. Click in the Output stream video configuration options area to access the configuration window.

  • Page 51: Resize Method

    Figure 61. Logo Insertion Button Upon clicking it, we are presented with another pop-up window, in which the user can set up, as seen in Figure 62. Figure 62. Logo Insertion Configuration BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 52: Muxing

    Muxing BRIDGE LIVE is capable of muxing multiple streams such as audio inputs, captions and metadata streams into a single output stream. The list of supported input...

  • Page 53: Creating And Loading Preset Configurations For Streams

    Mac host, reading it back with VLC and verifying it locally to make sure RTMP is working. The application can be found through the following link: https://github.com/sallar/mac-local-rtmp-server BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 54: Capturing Outgoing Packets And Creating Transport Stream

    Capturing Outgoing Packets and Creating Transport Stream Another method for verifying the Pipeline configuration is to capture the outgoing packets from the BRIDGE LIVE server, directly on BRIDGE LIVE. Then download the PCAP file, and create a transport stream out of that data for inspection.

  • Page 55: Chapter 7 - Initial System Setup And Configuration

    If you find shipping damage, contact your AJA dealer or distributor for details on how to have your BRIDGE LIVE repaired or replaced. NOTE: Save packing materials and the shipping box. If your BRIDGE LIVE ever requires service or you move your system, use the packaging materials and box for safe shipment.

  • Page 56: Chassis Power Button

    60°C. Installation Summary 1. Unpack the shipping box, removing the BRIDGE LIVE Quick Start Guide, the BRIDGE LIVE device, pre-installed rack-ears, rack rails, and two power cords. 2. Mount the physical chassis as desired, using the provided sliding rails.

  • Page 57: Initial System Setup Via Local Interface

    6. Connect the two BRIDGE LIVE power cords to AC mains. For redundancy, use both power supplies and connect them to separate branch circuits so that the BRIDGE LIVE will continue to operate even if a circuit breaker opens on one branch.

  • Page 58: Eula

    AJA BRIDGE LIVE interface. EULA When you login to the BRIDGE LIVE UI for the first time, you will be prompted to read and accept the EULA. If you change the BRIDGE LIVE version using the Version manager, found in "Updates"...

  • Page 59: Configuration Of Network Connectivity

    NOTE: Typically Administration is applied to only one port. If applied to more than one port, you will see a warning message (but not an error). NOTE: With a dual NIC setup, you cannot have both NICs connected to the same network. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 60: Configuration Of Gpu And Cpu Acceleration

    Figure 70. Informational only – Configuration of GPU & CPU acceleration Next step. Click Configuration Summary A summary of the final configuration settings of your device, including hostname, network connectivity, CPU and GPU acceleration, and DNS settings. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 61: Password Administration

    Figure 71. Configuration summary Default Route This is used for setting up the BRIDGE LIVE system so that it communicates correctly within your network. The default route determines which interface is used by BRIDGE LIVE for outbound communication. The Default route is also used for internal communication. It is typically the...

  • Page 62: Licensing

    (console user) by entering the current password, then setting the new password. Licensing Licenses that are ordered at the time of purchasing the BRIDGE LIVE unit will be pre-installed prior to shipment. At a later date, if you want to order an additional license, you will need to get the unique Installation ID number, found on the System Information page, and contact AJA Support.

  • Page 63: Contacting Aja Technical Support

    Upload. Upon completion of the license upload, the license will immediately be available for use. Updates To check for updates for AJA BRIDGE software, go to the AJA website and view/ download the package for your particular BRIDGE model: https://www.aja.com/support/downloads Unzip the download and then stage the unzipped package via either USB key or network share.

  • Page 64: Chapter 8 - Advanced System Administration

    The suffix “custom” points out the fact that this settings file was uploaded to BRIDGE LIVE by the end user. It is advised to consult the configuration adjustments with your support team.

  • Page 65: Version Management

    Perform upgrade button. After that, you will be asked whether you want to restart the server right away or do it later. Figure 77. Version Management BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 66: Factory Reset

    The process takes approximately one minute. Factory Reset through a Warm Reboot If you want to perform a Factory Reset to BRIDGE LIVE from a system that is up and running, take the following steps: Figure 78. Accessing the Version Management page 1.

  • Page 67: Chapter 9 - Os And Network Administration

    Most of the important files are located in /opt/transcoder/ folder including the binaries or configuration files as well. System Services All BRIDGE LIVE components run as a system service. You can use the standard OS’s interface systemctl to manage those services. transcoder-base Starts the BRIDGE LIVE and the web server with web UI at system start.

  • Page 68: Web Administration

    Manual Network Interface Configuration BRIDGE LIVE UI offers a somewhat limited set of possibilities to configure the network interface. In the event that you need to set it more precisely, CentOS 7 has three main options for how to configure network interfaces.
  • Page 69 Restart BRIDGE LIVE service sudo systemctl restart transcoder-base Wait until BRIDGE LIVE starts and in BRIDGE LIVE Dashboard run Setup where you can find your new vlan interface. Configure usage and complete setup. BRIDGE LIVE Video I/O and Streaming Appliance v1.10...

  • Page 70: Chapter 10 - Using Rest Api

    Accessing the API Documentation BRIDGE LIVE is REST API ready. You can access the complete API documentation by selecting the API button in the top right corner of Dashboard. Figure 79. The API button Featured Curl commands The API documentation is extensive.

  • Page 71: Chapter 11 - Using Snmp

    It is possible to automate system monitoring with the SNMP protocol. Below is the list of commands that you may use. NOTE: The monitoring only works while the BRIDGE LIVE is actually transcoding. You will not see a correct response if the system is idle.

  • Page 72: Snmp Traps

    –On COMPRIMATO-SYSTEMS-MIB:trcOutputStreamTable SNMP Traps BRIDGE LIVE uses standard SNMP traps. SNMP traps are used to send event messages. An event has a start and an end which are conveyed by event messages. Below is an example of events we use: •...

  • Page 73: Configuration Of Snmp Manager

    • activeEventsTable .1.3.6.1.4.1.50087.1.1.3.1 Configuration of SNMP Manager You can find the MIB file in BRIDGE LIVE here: /usr/share/snmp/mibs/COMPRIMATO-SYSTEMS-MIB.txt Setup to configure the SNMP agent: • open “/etc/snmp/snmpd.conf” for editing as sudo, • find the line that reads “trap2sink localhost public”, •...

  • Page 74: Chapter 12 - Troubleshooting

    Chromium has an ability to restart itself. However, we restricted this for BRIDGE LIVE because there is a possibility to get into an infinite loop due to a bad config file. Instead, you should use system tools to (re)start the BRIDGE LIVE using...

  • Page 75: How Can I Change The Default System Password

    How can I change the default system password? See also: "Password Administration" on page BRIDGE LIVE installation runs on CentOS 7, and you can use standard system commands. If you need to change the password for user "myuser" then use the command: sudo passwd myuser in the system terminal.

  • Page 76: A List Of Possible Error Messages In Ui

    {stream} is in unexpected state: {status} Contact Support. {stream} is not receiving any PCR from source. BRIDGE LIVE cannot detect any input data or all PCR packets are dropped. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 77: Appendix A - Specifications

    • Subtitles embedded within H.264 SEI messages • Electronic program guide (EPG) on input Containers and Protocols • MPEG-TS • MPTS (input only) • RTMP/RTMPS • RTP, UDP • SRT (including encryption) • VSF-TR01 BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 78 • 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection Audio Output Digital • 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 79 • Safe Operating Temperature: 5 to 35 C (41 to 95 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 8-90% noncondensing • Nonoperating Relative Humidity: 5-95% noncondensing BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 80 50, 59.94, 60 YCbCr 4:2:2 10  SD Inputs Supported  1x 270Mb SDI ​ : Format Frame Rate Color Space Sampling Bit Depth  • 525i 59.94 YCbCr 4:2:2 • 625i YCbCr 4:2:2 10  BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 81: Appendix B - Safety And Compliance

    AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 82 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. Korea KCC Compliance Statement BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 83 Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na documentação. Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi nella documentazione. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 84 (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 85 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 86 Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é utilizado durante longos períodos de tempo. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore, quali il treppiedi e l'esoscheletro. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 87 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
  • Page 88 ¡Advertencia! Aviso del doble cable de alimentación - leer esto por favor. Para reducir el riesgo de descarga eléctrica, desconecte ambos cables de alimentación antes de dar servicio al equipo. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 89 Para reducir el riesgo de descarga eléctrica al operador y el personal de servicio, este conductor de conexión de la tierra debe ser conectado a la misma tierra. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 90: Warranty And Liability Information

    If the Customer brings a valid claim under this limited warranty for a hardware product or storage module (hereafter, a “product”) during the applicable warranty period, AJA Video will, at its sole option and as the Customer’s sole remedy for breach of the above warranty, provide one of the following remedies: •...
  • Page 91 This limited warranty gives you specific legal rights and you may have other rights that vary from jurisdiction to jurisdiction, some of which are noted above. BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...

  • Page 92: Index

    Frame size 27, 31 Panel 13, 18, 56 49, 77 Password 11, 58, 61, 62, 67 UltraHD 7, 8, 9, 10, 40, 46, 77, 78 Forgotten 11 Uncompressed 22, 24, 35, 38, 40, 48, BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
  • Page 93 URL 29, 30, 33, 42, 70 User Types 11 verify 15, 28, 54, 75 Verifying Pipeline Configurations 28 Version management 63, 65, 66 VLC Media Player 29 YouTube 7, 8, 30, 31, 32, 33, 34, 42 BRIDGE LIVE Video I/O and Streaming Appliance v1.10 www.aja.com...
