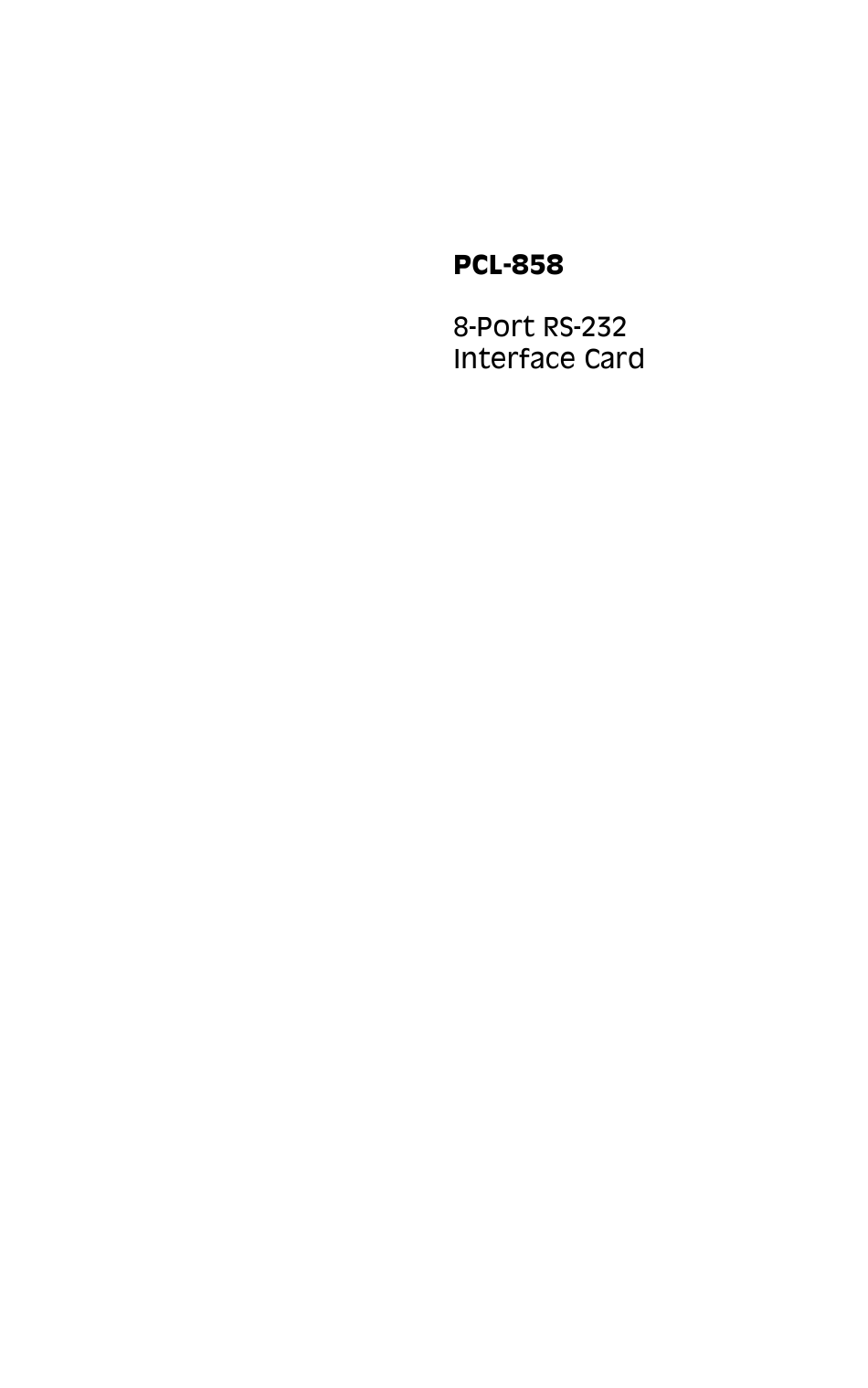

8-port rs-232 interface card

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCL-858 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech PCL-858

  • Page 2 Advantech Co., Ltd. Information provid- ed in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of rights of third parties which may result from its use.
  • Page 3 Description ................6 Features .................. 7 Specifications ................. 7 Initial Inspection ..............12 Card Configuration ............14 Default Settings ..............14 I/O Address and Interrupt Setup ........14 Speed Mode selection ............18 Operating Environment Selection ........20 Icom Utility Setup for Windows 95/98/NT environment . 20 Connector Pin Assignments ..........
  • Page 4 Chapter 1 Introduction...
  • Page 5 The PCL-858A/858B serial ports are implemented using 16C554 UARTs which makes serial I/O more reliable. The PCL-858 series support all eight ports can be set the address automatically. All channels share the same interrupt (IRQ), and interrupt status register is available for determining the interrupt source.
  • Page 6: Chapter 1 Introduction

    Eight independent RS-232 serial ports Transmission speed up to 921.6Kbps Independent I/O address, Share IRQ setting for each of 8 serial ports Wide IRQ selection: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 Supports DOS/Windows 3.1 (PC-ComLib), Windows 95/98, Win- dows NT Supports surge protection : 3000 VDC (PCL-858B) PC-ComLib, Icom Utility software included...
  • Page 7 99,100 hrs (PCL-858A) at 25°C, Ground, fixed, environment over 92,363 hrs (PCL-858B) at 25°C, Ground, fixed environment For technical support and service please visit our support website http://support.advantech.com and visit the “Industrial Automation Support” and “FAQ” sections PCL-858 User's Manual...
  • Page 8 Figure 1-1: Switch and jumper layout...
  • Page 9 PCL-858 User's Manual...
  • Page 11 It should be free of marks and scratches and in perfect working order on receipt. As you unpack the PCL-858, check it for signs of shipping damage (damaged box, scratches, dents, etc.). If it is damaged or it fails to meet specifications, notify our service department or your local sales representative immediately.
  • Page 12: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation...
  • Page 13 Interrupt 280H Next, you will need to select an IRQ (interrupt request) number, and an I/O base address for the PCL-858. For base address specify the I/O address of the first port and subse- quent ports are set continuous base addresses by the offset of 8 bytes.
  • Page 14 Address 338H Select an address which is not already in use by another card in the system. If you are installing more than one PCL-858 card in your system, set the card to different base address. DIP switch(SW1) controls each card’s base address, as shown below.
  • Page 15 Select an IRQ which is not already in use by another card in the system. If you are installing more than one PCL-858, set them to different IRQ number. Jumper Bank JP1 controls the card IRQ. Simply place the jumper on the interrupt level as shown in the following figure.
  • Page 16 Interrupt Status Register SW2 Function Port1 Port2 Port3 Port4 Port5 Port6 Port7 Port8 The user may change the interrupt status address via SW2. Please note the address decorder will occupy a continuous, 8-bytes area related to switch setting. For example, if you set the switch to 210H, then the address 210H to 217H will all be decoded.
  • Page 17 The PCL-858 employs a unique speed option that allows the user to choose either normal speed mode (1x) or high speed mode (8x). This high speed mode is selected at SW2. To select the baud rate commonly associated with COM ports , such as 2400, 4800, 9600.
  • Page 19 In this part, utility installation, configuration and upgrade/ removal procedure are described. IOCM Utility software package is stated for both Windows 95/98 and NT environments. The following is the procedure for installing PCL-858 under Windows 95/NT: 1. Run Setup.exe in the driver diskette.
  • Page 20: Chapter 3 Software Installation

    You will enter the configuration program when installing the device driver. Or you can click on the Taskbar [Start] button, then select [Programs] menu, then [Advantech Icom Utility] menu and then [Icom] icon. When the configuration panel is popped up: Click [Add Board] button to add a board.
  • Page 21 At PCL-858 series can be installed together as long as the memory resources are sufficient and available in a system. The board can share only one same IRQ, and different board will set different IRQ. Click [Share IRQ Enable] button to set the share IRQ function.
  • Page 22 Chapter 4 Wiring...
  • Page 23 RS-232 8-port connection boxes/octopus cable designed for PCL-858 are: Opt8A: 8-port DB25 female connection box Opt8B: 8-port DB25 male connection box Opt8C: Octopus cable with 8 male RS-232 DB25 ports The following lists the pin assignments of the DB62 connector on the bracket.
  • Page 24: Chapter 4 Wiring

    Signal Name Pin # Mode Chapter 4 Wiring...
  • Page 25 In some situations you may be able to get by with just three lines: data on TXD, a signal ground and a handshaking line. Examples are printer or plotter connections, troubleshooting and situations where you require only one-wire communication. Signal Signal PCL-858 User's Manual...
  • Page 26 Signal Signal For DTE to DCE connection, use straight through cable, i.e. you don't have to reverse lines 2 and 3, lines 4 and 5, and lines 6 and 20. Because in general the DCE RS-232 interfaces are reversed them- selves.
  • Page 27 PCL-858 User's Manual...
  • Page 28: Appendix A Pc I/O Address Assignments

    Appendix A PC I/O Address Assignments...
  • Page 29 380 - 38F SDLC Binary Communication Adaptor 3A0 - 3AF Master Binary Communication Adaptor 3B0 - 3BF Monochrome/Parallel Adaptor 3D0 - 3DF Color Graphics Adaptor 3F0 - 3F7 Diskette Controller 3F8 - 3FF Serial Adaptor ( COM 1 ) PCL-858 User's Manual...
  • Page 30: Appendix B Quick Reference

    Appendix B Quick Reference...
  • Page 31 IRQ Level for each port are set to default as below, (Please make sure that the I/O address on BIOS setting of on-board COM1 ~ COM4 will never conflict with [Base Address] ~ [Base Address + 3Fh]) PCL-858 User's Manual...
