- Page 1 1. Set up BookDrive DIY www.atiz.com/support...
-
Page 2: Safety Precautions

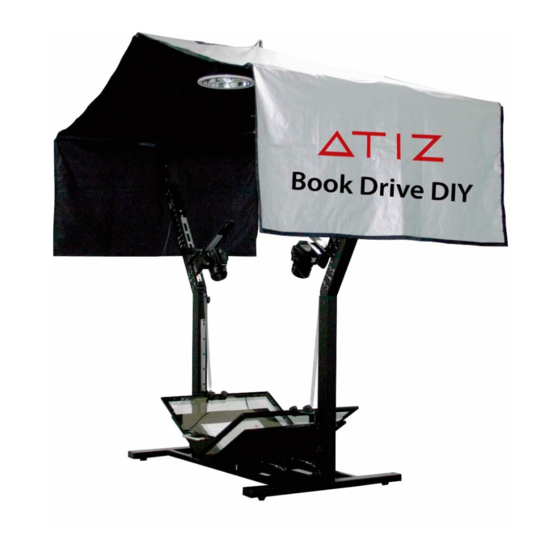

Do not place the machine near heaters or volatile, flammable or combustible materials that may catch fire. BookDrive DIY is not designed to be lifted. Do not lift or relocate the machine once it has been fully assembled. To relocate the machine, de-assemble it into parts first and then re-assemble them again at the desired location. - Page 3 Getting to know your BookDrive DIY Lamps Lamp hanger Top bar Shade Camera mount V glass V cradle Base USB hub Numeric Keypad Updated: May 2012...
- Page 4 How to assemble the platform Palce the base on the table and connect the left and right legs to the base as shown. Tighten 3 knobs on the front, 3 knobs on the rear and 2 knobs on the inner side of each leg.
- Page 5 Connect the arm to the leg. The sticker on the end of the arm should match with the sticker on the end of the leg. Then tighten the knobs. Repeat on the other side. Fix the V glass with the arm connector. Tighten 2 knobs with nuts at each left and right side.
- Page 6 Install the springs on both sides. Straighten the top bar. Attech the lighting hanger to the top bar and tighten the 2 knobs. Attach the top bar to the platform. Tighten the 4 knobs on each side securely.
- Page 7 8. Attach the lamps to the lamp hanger. Tighten the knobs on both lamps. Plug the AC cord into each lamp. 9. Put 2 little plastic pieces in the shade’s hole and connect them together to form a extension.
- Page 8 10. Attach the shade to the top bar.
- Page 9 How to set up the software Every BookDrive comes with 2 applications. BookDrive Capture - for controlling the cameras to capture images BookDrive Editor Pro - for image processing and making e-books Requirements Windows 7, Vista or XP CPU - Pentium 3 1GHz or better RAM - 512MB minimum (2GB is highly recommended) USB 2.0 connection Driver - Drivers for Canon camera must be installed...
-
Page 10: How To Install The Software
How to install the software Make sure you’ve successfully installed Canon drivers and software that come with the cameras. Do not proceed to next step if you still can’t do PC remote shooting using the Canon included software called EOS Utility. (The actual screenshot of Canon software may differ from what’s shown here) - Page 11 Once you can do PC remote shooting through Canon software, you can now install BookDrive software. If you want the latest version of the software, you can download from Atiz support page at www.atiz.com/support Double click the installation file to install.
- Page 12 Once finished, you will see the program shortcuts on the desktop. When you run the software, use the included USB dongle to unlock it.
- Page 13 Copyright 2006-2011. Atiz Innovation Co.,Ltd. All rights reserved. ©...
