Me Auriga - MakerBot mBot Ranger Manual

Me Auriga

Power Jack
USB Connector
Power Switch
Power Led Indicator
Sound Sensor
Light Sensor 1
RJ25 Port
Power Switch
Specifications:
Operating Voltage: 6-12V DC power
Microcontroller: ATmega2560
Dimensions (L*W*H): 100 x 65 x 20mm
06
Reset
Bluetooth Module
5V Led Indicator
Buzzer
Light Sensor 2
RGB LED Ring
Encoder Motor Port
M1
M2

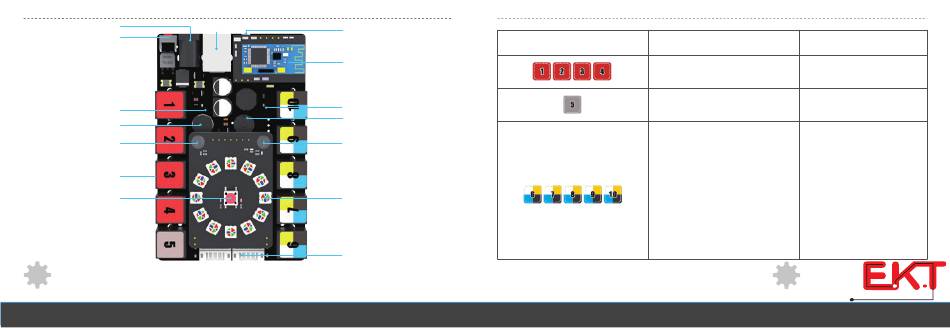

Introduction to Interfaces of Me Auriga
Tag Color
w w w . e k t . c o m
2
Compatible Module Types Typical Me Modules
Me Motor Driver
(6-12V DC) Driven modules Me Servo Driver
Me Stepper Driver
Me Bluetooth
Hardware serial port Me Bluetooth Module
(Dual-Mode)
Me Ultrasonic Sensor
Me RGB LED
Me Limit Switch
Me 7 Segment Serial Display
Me PIR Motion Sensor
Me Shutter
One way digital interface
Me Line Finder
Dual digital interface
Me Infrared Receiver Decode
I²C port
Me 3 Axis Accelerometer
Dual & one way analog interface
and Gyro Sensor
Me Potentiometer
Me Joystick
Me 4Button
Me Sound Sensor
...
