Electrical Safety Tester
GPT-9000 / GPT-9000A Series
QUICK START GUIDE
GW INSTEK PART NO. 82PT-90000MB1
ISO-9001 CERTIFIED MANUFACTURER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPT-9000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek GPT-9000 Series

Summary of Contents for GW Instek GPT-9000 Series

  • Page 1 Electrical Safety Tester GPT-9000 / GPT-9000A Series QUICK START GUIDE GW INSTEK PART NO. 82PT-90000MB1 ISO-9001 CERTIFIED MANUFACTURER...
  • Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the right to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents SAFETY INSTRUCTIONS ........... 4 Safety Symbols ....................4 Safety Guidelines .................... 5 Power cord for the United Kingdom ............. 7 INTRODUCTION ............... 8 Series lineup ....................8 Model Overview ..................... 9 Panel Overview ..................... 10 GPT-9801/9802/9803/9901A/9902A/9903/9903A Front Panel ....

  • Page 4: Safety Instructions

    GPT-9000/9000A Series Quick Start Guide AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.

  • Page 5: Safety Guidelines

    SAFETY INSTRUCTIONS Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the General  Guideline instrument.
  • Page 6 GPT-9000/9000A Series Quick Start Guide Disconnect the power cord before cleaning. Cleaning the  GPT-9000/9000A Use a soft cloth dampened in a solution of mild  detergent and water. Do not spray any liquid. Do not use chemicals containing harsh material ...

  • Page 7: Power Cord For The United Kingdom

    SAFETY INSTRUCTIONS Power cord for the United Kingdom When using the safety tester in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow:...

  • Page 8: Introduction

    They also include an innovative a sweep function to view test results as a graph. The GPT-9000 Series can store up to 100 manual tests, as well as run up to 16 manual tests sequentially as an automatic test, allowing the safety testers to accommodate any number of safety standards, including IEC, EN, UL, CSA, GB, JIS and others.

  • Page 9: Model Overview

    INTRODUCTION Note: Throughout this user manual, the terms ACW, DCW, IR and GB refer to AC Withstanding, DC Withstanding, Insulation Resistance and Ground Bond testing, respectively. Model Overview Model name Sweep  GPT-9801   GPT-9802    GPT-9803 ...

  • Page 10: Panel Overview

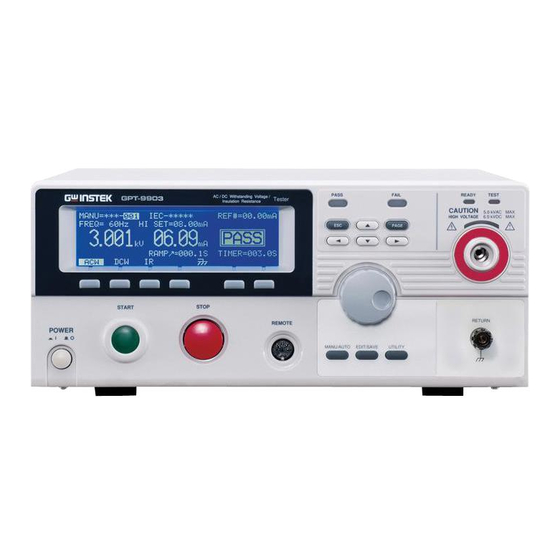

    GPT-9000/9000A Series Quick Start Guide Panel Overview GPT-9801/9802/9803/9901A/9902A/9903/9903A Front Panel PASS/FAIL indicators Display Function keys Directional keys READY indicator TEST indicator PASS FAIL READY TEST AC / DC Withstanding Voltage / GPT-9803 Tester Insulation Resistance CAUTION 5.0 kVAC MAX. HIGH VOLTAGE 6.0 kVDC MAX.

  • Page 11: Gpt-9801/9802/9803/9804 Rear Panels

    INTRODUCTION GPT-9801/9802/9803/9804 Rear Panels SIGNAL I/O USB A port RS232 port WARNING TO AVOID ELECTRIC SHOCK THE POWER CORD SIGNAL I / O RS 232 PROTECTIVE GROUNDING CONDUCTOR MUST BE CONNECTED TO GROUND . FOR CONTINUED FIRE PROTECTION REPLACE ONLY WITH SPECIFIED TYPE AND RATED FUSE NO OPERATOR SERVICEABLE COMPONENTS INSIDE DO NOT REMOVE COVERS REFER SERVICING TO QUALIFIED PERSONNEL .

  • Page 12: Gpt-9904 Rear Panel

    GPT-9000/9000A Series Quick Start Guide GPT-9904 Rear Panel Signal I/O, RS232 High voltage terminal & USB port Fan vents CAUTION HIGH VOLTAGE WARNING TO AVOID ELECTRIC SHOCK THE POWER CORD SIGNAL I / O RS232 PROTECTIVE GROUNDING CONDUCTOR MUST BE CONNECTED TO GROUND.

  • Page 13: Operation

    OPERATION PERATION Menu Tree This section describes the overall structure of the operation statuses and modes for the GPT-9000/9000A safety testers. The testers have two main testing modes (MANU, AUTO) and 5 main operation statuses (VIEW, EDIT, READY, STOP and TEST). PASS/FAIL result Press status...

  • Page 14: View Status

    GPT-9000/9000A Series Quick Start Guide VIEW Status VIEW status is used to select a manual test in Description the MANU mode or an automatic test/step in AUTO mode. VIEW status will display all the parameters of the current test. VIEW status is also used to put the tester into MANU or AUTO mode.

  • Page 15: Auto/Manu Mode

    OPERATION Choose AUTO Number and MANU Number (AUTO mode) Use the UP/DOWN cursors to highlight either the  AUTO number (automatic test) or MANU number (step). Use the scroll wheel to select the AUTO/MANU  number. Go to EDIT Status EDIT/SAVE Press the EDIT/SAVE key.

  • Page 16: Edit Status

    GPT-9000/9000A Series Quick Start Guide Switch Between AUTO/MANU Mode Press and hold the MANU/AUTO key to switch MANU/AUTO  between AUTO and MANU when the tester is in VIEW status. EDIT Status EDIT status is accessed by pressing the Description EDIT/SAVE key when in VIEW status.
  • Page 17 OPERATION Choose the Test Function (MANU mode only) A C W Choose the test function by pressing the  corresponding ACW, DCW, IR or GB soft-key. (Example) The chosen function will be highlighted.  Set the Test Voltage/Current (MANU mode only) Use the UP/DOWN arrow keys to bring the cursor to ...
  • Page 18 GPT-9000/9000A Series Quick Start Guide Test Time (MANU mode only) I M E Press the TIMER soft-key or use the UP/DOWN  arrow keys to select TIMER. Use the scroll wheel to set the test time.  In Special MANU Test Mode, hold the TIMER soft- ...

  • Page 19: Ready Status

    OPERATION Save MANU/AUTO and Return to VIEW Status Press the EDIT/SAVE key. The current test is saved EDIT/SAVE  in memory. The tester reverts back to VIEW status.  Exit the EDIT Status and Return to VIEW Status Press the ESC key. ...
  • Page 20 GPT-9000/9000A Series Quick Start Guide READY status M A N U = * * * - 0 0 . 0 m Ω F R E Q = 0 H z 0 0 . 0 m Ω 0 3 01 m Ω G B V = = 0 0 3 .

  • Page 21: Test Status

    OPERATION TEST Status TEST status is active when a MANU test or Description AUTO test is running. Pressing STOP will cancel the current test and any remaining steps in the case of an AUTO test. TEST status M A N U = * * * - 0 0 0 0 m A F R E Q = 0 H z...
  • Page 22 GPT-9000/9000A Series Quick Start Guide For AUTO mode, a PASS or FAIL judgment will be shown for each step in a table. The AUTO test as a whole will be judged either as PASS if all steps have passed, or as FAIL if any one step has failed.

  • Page 23: Stop Status

    OPERATION View Sweep Graph (Special MANU Test Mode)* *GPT-99XX and GPT-99XXA models only. W E E Press the SWEEP soft-key to view the sweep graph  after a special manual test has finished running. Press the ESC key to return the VIEW status. ...

  • Page 24: Page View

    GPT-9000/9000A Series Quick Start Guide MANU MODE STOP status M A N U = * * * - 0 0 0 0 m A F R E Q = 0 H z 1 . 0 0 m A 00 33 0 100 A M P 0 0 .
  • Page 25 OPERATION Move Steps Use the arrow keys to highlight the step you wish to  move. Press the MOVE soft-key.  O V E Use the arrow keys to move the cursor to the desired  step (destination). Press the MOVE soft-key again to move. ...

  • Page 26: Common Utility Settings

    GPT-9000/9000A Series Quick Start Guide Delete Steps Use the arrow keys to highlight the step you wish to  delete. Press the DEL soft-key.  D E L The step will be removed from the table as soon as the DEL soft-key is pressed. Save Page View To save, press the EDIT/SAVE key.
  • Page 27 OPERATION T I L I T Y S t a r t t r l F R O N T P A N D o u b l e A c t i K e y k : O I N T E R L C K : L C D B U Z Z...

  • Page 28: Manu Utility Settings

    GPT-9000/9000A Series Quick Start Guide MANU Utility Settings The MANU Utility menu is accessed by Description pressing the UTILITY key when the tester is in MANU mode/EDIT status. The MANU Utility settings are configured for each MANU test separately. The settings include: ARC MODE, PASS HOLD, FAIL MODE, MAX HOLD and GROUND MODE.
  • Page 29 OPERATION...
