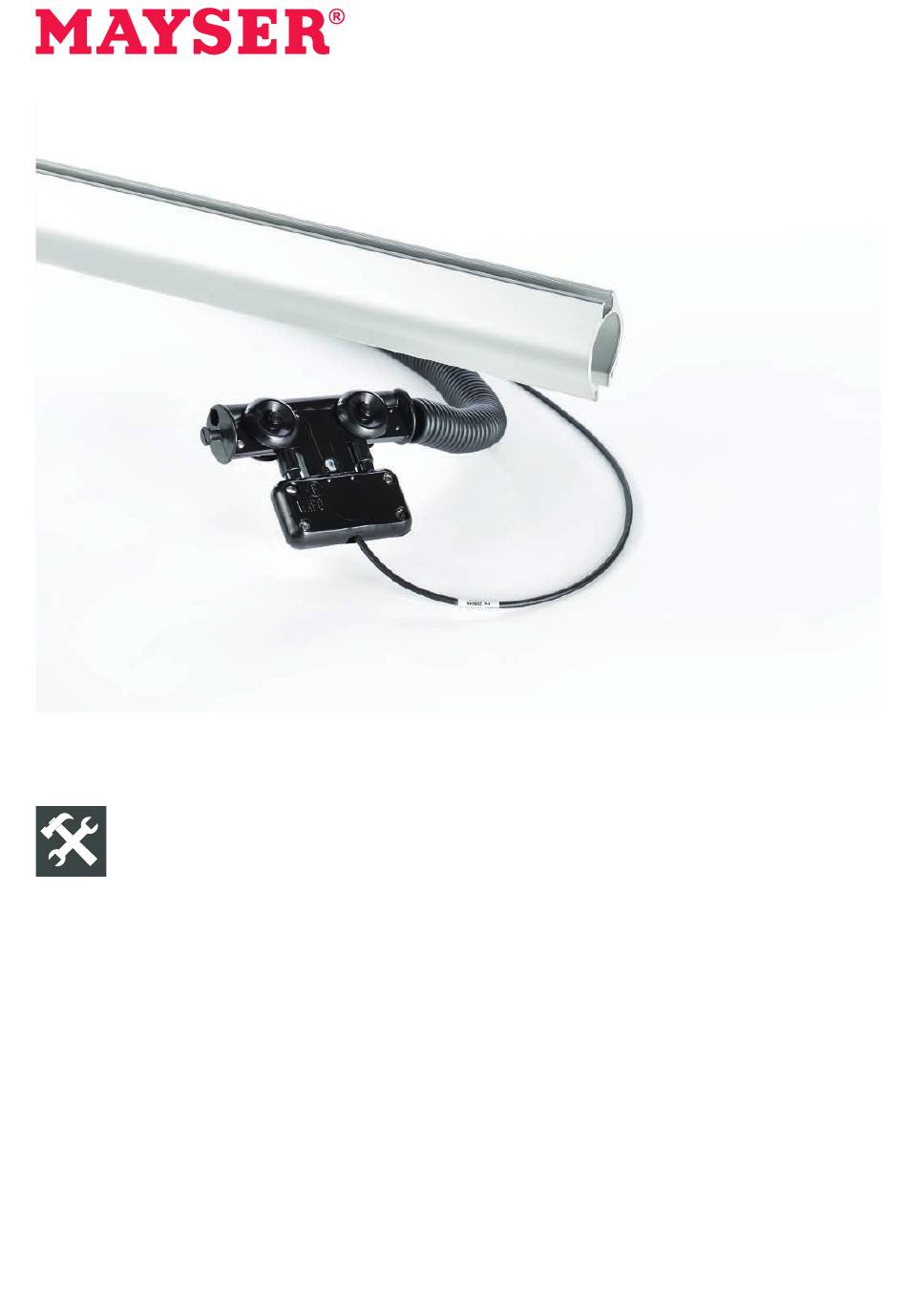

- Page 1 Innovative by tradition. Signal transmission systems WLS EN | Installation instructions Original instructions Mayser GmbH & Co. KG Örlinger Straße 1–3 89073 Ulm GERMANY Phone: +49 731 2061-0 Fax: +49 731 2061-222 E-mail: info.ulm@mayser.com Internet: www.mayser.com...
- Page 2 Spiral cable with carriage 4× 0,14 mm² 75015-13 ... -24 Tube connector for WLS stainless steel 1003802 Accessories Position Designation Comment Part No. Fastening parts for WLS incl. nuts and screws 1003804 280618 v0.2 Installation instructions Signal transmission systems WLS Page 1/3...
- Page 3 Insert nuts and screw on angle. Adjusting the profile tube Adjust and fix the profile tube. Adjust and fix the profile tube. Note: The fastening means shown are not included in the WLS delivery. 280618 v0.2 Installation instructions Signal transmission systems WLS Page 2/3...
- Page 4 Mounting position can be horizontal or vertical. If mounting the WLS in horizontal position, make sure the • opening in the profile tube shows downwards. Please ensure, especially in the winter months, that snowmelt does not lead to the WLS freezing and that the • WLS is not covered up during snow clearing/salt spreading operations.
