- Page 1 KW Z d/E' /E^dZhd/KE^ dZ dKZ DKhEd ^dhDW hdd Z > ^</ & d Z & Orig. version: 5. 2010...
- Page 2 It is very important for you and your work safety to understand all instructions given in this manual. The firm Laski s.r.o. does not bear any responsibility for any claims resulting from disobedience to the instructions given in this manual.
-
Page 3: Table Of Contents
Contents F o r e w o r d ..........2 C o n t e n t s . - Page 4 T e c h n i c a l D e s c r i p t i o n ......2 6 T e c h n i c a l P a r a m e t e r s .
-
Page 5: Ec Conformity Declaration
EC Conformity Declaration... -
Page 7: Product Identification
Product Identification Our product is identified with its serial number stamped both on the type plate and on the chassis. Upon take-over of the product we recommend you to fill required data in the following form concerning the given product and your dealer. Type of product: ............... -
Page 8: Work Safety Instructions

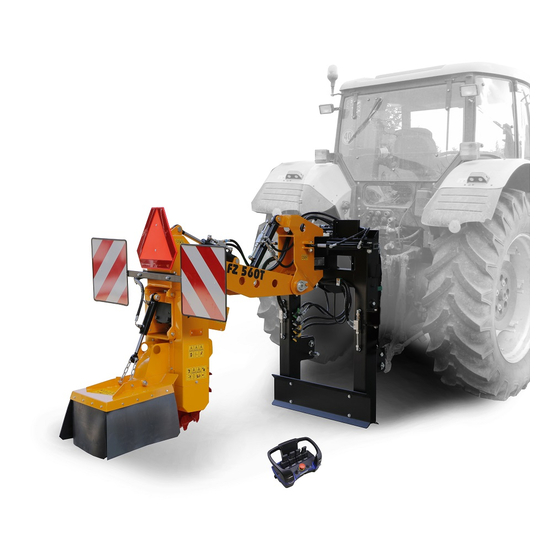

Work Safety Instructions Utilisation This product is designed for cutting a stump with its above-ground part up to +700 mm and its under-ground part in a max. depth of -600 mm under the ground level while being coupled to a three-point hitch, category 1 or 2 and to the PTO shaft assembly for 540 rpm. -
Page 9: Generally
Generally Do not use this machine without prior reading this manual. The user/owner of this machine is obliged to instruct attendants about relevant instructions for its operation in a demonstrable way. This manual should be available/accessible for attendants any time. This machine is allowed to be operated only by an operator who is over 18 yrs old, physically and mentally capable and demonstrably instructed about its operation. - Page 10 The manufacturer does not bear responsibility for any damages or injures to the third persons, or to other equipment, resulted from disobedience to instructions given in this manual. Do not put any objects or tools on the machine. Do not leave the machine unattended – pull out the tractor ignition key. When handing the machine over to another person make sure if all controls, guards and other safety elements are complete and properly installed.
- Page 11 Every training course for attending personnel should include also practical operation under supervision of an experienced person or your dealer and necessary work safety instructions. Before working learn all functions of individual controls, both of the machine and of the tractor, particularly after turning the PTO shaft off.
- Page 12 arm; to turn off the cutting head drive and to block the head in safe condition; - type FZ 560 T-RC: to turn off the remote control box and to hang it up on the supporting foot framing; to turn off the cutting head drive and to block the head in safe condition; Keep this machine beyond children's and unauthorised persons' reach.
- Page 13 without problems now but in the future any of important parts could get out of order or do fatal damage. Pay regular attention to all joints and bolts. Keep them properly tightened. Motor Vehicle Construction and Use Regulations This stump cutter is allowed to be coupled to a tractor provided that actual weight of the tractor in such an attachment does not exceed its maximum permissible value and actual front axle load does not fall under 20% of its gross weight.
-
Page 14: W O R K S A F E T Y S Y M B O L
Work Safety Symbols This article introduces work safety symbols (pictographs) used on this machine. Under the given pos. number there is their location on the machine. These work safety symbols warn the operator against risks connected with the machine use. Your respect to the symbol meaning is a precondition for your work safety. -
Page 15: P R E C A U T I O N S I N D E S I G
Read this operating manual before use. Warning! Cutting head is running out. Warning! Keep away – ejected objects hazard. Warning! Keep away – this equipment swing out. Warning! Keep extremities away – squeeze hazard. Warning! Rotating parts – pull-in hazard. Warning! Close all guards before starting the machine. - Page 16 The hydraulic locks on hydraulic cylinders are designed for limitation of unwanted sinking in case of a sudden failure or leakage in the hydraulic system. Type FZ 560 T-M: Face shield for attendance of hydraulic distributor. Controls This stump cutter can be operated by means of controls in the tractor cab through the three-point linkage, see instructions for the PTO shaft and in the tractor manual.
- Page 17 Type FZ 560 T-M: Cutting head guard up / down Jib control: up / down / right / left Cutting head suspension forward / backward Common Cutter Controls Flow limiter installed on the hydraulic cylinder for jib control. This limiter is preset by the manufacturer and further (contingent) readjustment can be done according to the tractor being actually used.
- Page 18 It is intended for reduction of oil flow going from the tractor into the cutter hydraulic system. This reduction is limited by actual capacity of the tractor oil pump. Transport Safety This stump cutter is delivered completely mounted and ready to use. It is equipped with a supporting feet frame intended for easier putting the machine aside on flat surface.
- Page 19 After detachment of the cutter its supporting feet must be extruded properly and locked against loosening. This supporting frame is designed for keeping stability after putting the cutter aside. Cardan Shaft Adjustment Before use it is necessary to check up cardan shaft adjustment as to its proper length. The cardan shaft length must be always adapted to the given tractor type.
- Page 20 Storage Store the stump cutter always in dry (sheltered) space to protect it against weather effects. Keep the stored machine beyond unauthorised person's reach. Before storage clean all parts of the machine. Use pressure water for cleaning. Remove any spilled oil immediately and wipe off all oily spots. Exchange all damaged or worn parts.
- Page 21 by means of connecting pins, ∅ 27 mm. For the category I: attachment into a fork by means of a connecting pin, ∅ 22 mm. According to an actual tractor tires size the connecting pins can be inserted into holes in two different heights.
- Page 22 Let the bottom draw rods sink until they are levelled with the connecting pins. Drive carefully back to the cutter hinge. While going back and coupling, nobody is allowed to stand between the cutter and the tractor. Attach the bottom draw rods of the three-point linkage and lock its pins by cotters or put the pin through the draw rod ball.
- Page 23 • Put the rear guard down to cover the cutting head properly. • When the cutter is properly coupled to the tractor, start the tractor and then turn on its PTO shaft which should run up gradually – increase shaft speed slowly up to its required/rated level.
- Page 24 The cutter hydraulic hoses, respectively their quick-couplers, are colour-coded. The coloured cutter coupler should be connected to the tractor pressure line and the white-coded coupler is to be connected to the tractor hydraulic return line. The yellow-coded coupler should be connected to opposite couplers marked 3-4 or 4-5, see fig.
- Page 25 Set the cutter onto the stump, start cutting in a swinging way and take individual stump layers continuously off. Depth of individual cut should be about 20 mm, less at start. Check out proper attachment/position of the rear guard. Avoid any cutting if there can be some foreign matters and objects, such as metal, glass cullet, stony debris, ceramics etc.
-
Page 26: T E C H N I C A L D E S C R I P T I O
Valve for initial adjustment of oil flow Readjustment according to wood quality Noise and Vibrations Operation of this stump cutter brings following emissions: Unit Value Noise L at idle: 85,8 Noise L at work: 88,4 All measurements taken in accordance with CSN EN ISO 11201 at tractor rated speed. Technical Description This machine consists of following main parts: Supporting frame... - Page 27 Supporting frame It is welded from hollow-space profiles. In the front part there is a three-point hitch welded and intended for coupling to a tractor. In the bottom profiles there are retractable supporting feet for compensation of surface irregularities. In the top part there is a jib suspension hinged and also holders for hydraulic cylinders.
-
Page 28: T E C H N I C A L P A R A M E T E R
Control box This controller can move the respective machine parts forward/backward and to the right/left by means of keys. Actual control depends on the cutter model: FZ 560 T-M: Mechanically: by means of control levers under a hinged cover. FZ 560 T-RC: Remote control: it is in fact a multifunctional controller fed by 12 V from the tractor –... -
Page 29: M A I N T E N A N C
Coupling Three-point linkage category 1, 2 PTO shaft speed Remote control Type SCANRECO RC 400 (Sweden) Transmitter frequency 433,05 – 434,79 Transmitter output max. 10 Maintenance Any servicing of the cutter should be carried out by authorised persons only. Any servicing or repair is allowed to be done only if the machine was put out of operation. Check up the machine for completeness and its general condition. -
Page 30: L U B R I C A T I O
Lubrication Grease cup of jib suspension Lubrication every 50 running hrs Grease cups of cutting head suspension Lubrication every 50 running hrs... -
Page 31: R E P L A C M E N T O F B L A D E S A N D R E G R I N D I N
While replacing, proceed very carefully. Before replacement the machine must be secured against overturning. Be aware that the Laski blades are not fully interchangeable with each other. Do not confuse the right with left ones and the straight with bent ones. - Page 32 Remote Control and Battery Charger There is one charger available with this machine for voltages 12 to 30 V DC. The other option is 240 V with an adapter. The battery pack is rechargeable and of Nickel Cadmium (NiCd) type. The normal charging time for an empty uncharged battery, is approximately 12-14 hours.
-
Page 33: M A I N T E N A N C E I N T E R V A L
Maintenance Intervals Oil change in angle gearbox The first oil change after first 100 working hours and next changes every 1000 hrs. Change the oil always when the machine is turned off and still warm. Discharge the used oil SAE90 or SAE90EP into a bin. -
Page 34: W A S T E D I S P O S A
Flow limiters wrongly set up Check out and reset Low oil flow from tractor Replace (repair) tractor V-belts slack Tighten/replace V-belts Bearings overheated Insufficient lubrication or Lubrication and lubricants wrong lubricant used should be in accordance with recommended intervals and sorts Too high speed of input shaft Optimal PTO shaft speed... -
Page 35: M A I N T E N A N C E A N D S E R V I C I N
• Unauthorised changes, repairs and actions on the machine. • Usage of unoriginal spare parts or parts intended for other models. • Disobedience to instructions for use. • Damage of the machine caused by faulty handling, maintenance or overloading. • This warranty does not cover faults resulted from damages caused by the user.
