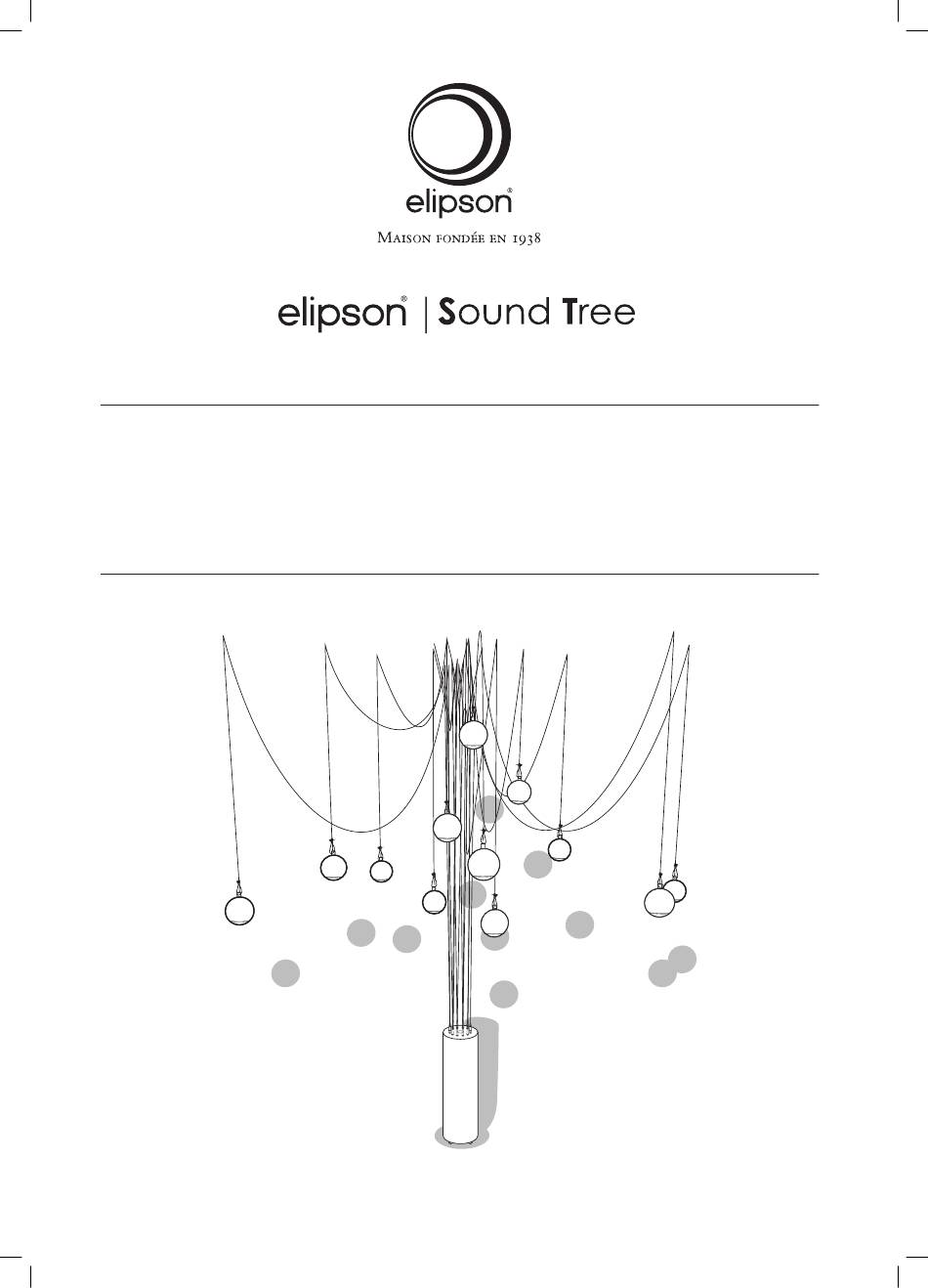

Originated by the work of Maurizio Galante, Tal Lacman and Jean-Yves le Porcher,
Elipson is proud to bring you this art and sound product.
Sound Tree
Great care should be taken for the installation of the Elipson Sound tree.
Please read carefully this guide.
Installation should be done by qualified personnel familiar with audio/video product.
Advertisement
Related Manuals for Elipson Sound Tree
Summary of Contents for Elipson Sound Tree
- Page 1 Elipson is proud to bring you this art and sound product. Sound Tree Great care should be taken for the installation of the Elipson Sound tree. Please read carefully this guide. Installation should be done by qualified personnel familiar with audio/video product.
-
Page 2: Setup Overview
SETUP OVERVIEW Fruit (speaker) Amplifier Power supply Trunk (powered subwoofer) Power supply Subwoofer cable Speaker cables L & R You need to plan the following : • Where are the speakers ( we call them “the fruit” ) going to be positionned ? •... -
Page 3: Parts Listing
PARTS LISTING Installation Pack Subwoofer cable M8 x15 M6 x20 M4 x20 M6 x40 Main Pack 1+2 Ceiling Planet M Music Center Red Speaker Power cord cable (option) Not provided Ceiling Base Pack M8 x40 Base... - Page 4 Ceiling INSTALLATION GUIDE 1. Ceiling mount assembly This part will hold all the fruit cable. Make sure to fasten carefully this part to your ceiling ( screw not provided ). M8 x15 M6 x20 M4 x20 M6 x40 Subwoofer cable A2 or A3 Ceiling Not provided...
- Page 5 A2 or A3 A2 or A3 2. Fruit hook assembly Ceiling Make sure the hook are well fastened to your ceiling. Use the necessary part to secure the assembly to your ceiling Not provided Not provided Floor A2 or A3 You need to put three different cable from the trunk bottom to the upper side : •...
- Page 6 You are free to position the fruit anywhere you like. Please remind that you have a total of 200 m of fruit cable for your Sound tree. The goal is to have a nice fruit display from your main point of view in your home.
- Page 7 6. Fruit connection to cable, fruit on hook Connect all speaker cable to the fruit. Secure the cable end with tape or heat-shrink of the same color as speaker cable. Position 3 cable stopper on each speaker cable. Ceiling Ceiling 7.
- Page 8 Elipson loudspeakers have been designed and manufactured to the highest quality standards. If something goes wrong with your product, If you cannot contact your original dealer, or if you are using your Elipson Elipson or its authorized distributor / dealer will handle the service and product outside the purchase country, you should contact Elipson national repair under these limited warranty terms.
