Page 1

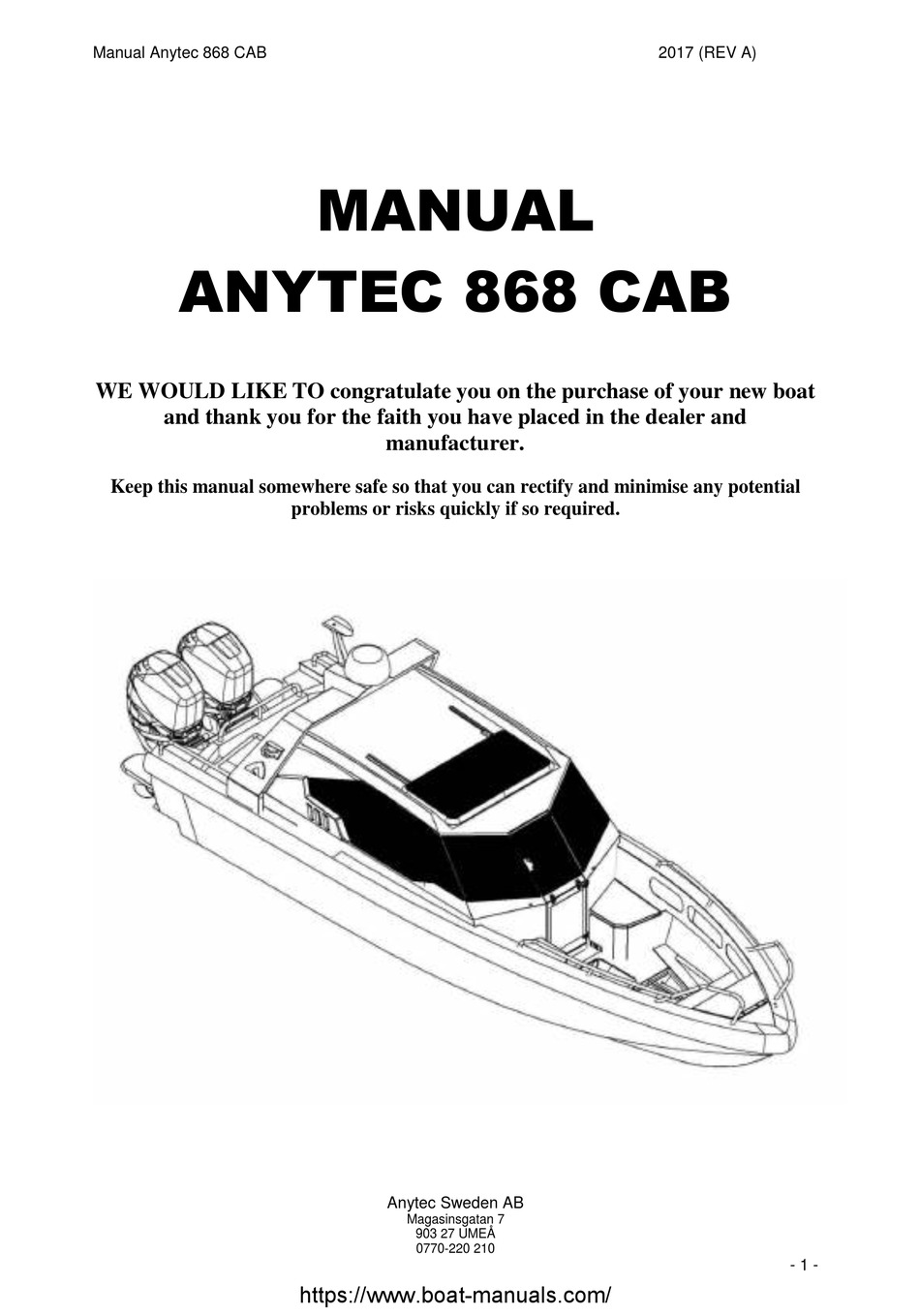

Manual Anytec 868 CAB 2017 (REV A) MANUAL ANYTEC 868 CAB WE WOULD LIKE TO congratulate you on the purchase of your new boat and thank you for the faith you have placed in the dealer and manufacturer. Keep this manual somewhere safe so that you can rectify and minimise any potential problems or risks quickly if so required.
Page 2
868 CAB has a sliding door in stern and a hinged door in the center of the bow in the cabin. The helm is fitted with adjustable foot supports for supreme comfort while driving.
Page 3
Manual Anytec 868 CAB 2017 (REV A) 1.3 Main dimensions Data: Lmax, overall length 8,87 LH, hull length 8,55 LWL, length along water line 7,20 Bmax, overall width 2,59 BWL, width along water line 2,30 mLt, weight unladen 2 989...
Page 4
Manual Anytec 868 CAB 2017 (REV A) Anytec Sweden AB Magasinsgatan 7 903 27 UMEÅ 0770-220 210 - 4 - https://www.boat-manuals.com/...
Page 5
Manual Anytec 868 CAB 2017 (REV A) 1.4 Capacities A maximum total load of 1746 kg has been used during stability testing: Crew weight (75 kg/passenger) Provisions and personal equipment Maximum motor weight Maximum recommended load (excl motor) (spec on manufacturer plate)
Manual Anytec 868 CAB 2017 (REV A) 1.6 CE This boat has been given category C, with a crew limit of 8 passengers in accordance with ISO 12217-1. Boats in this category are designed to travel close to the coast, in large bays, at estuaries, on lakes and rivers where conditions may be up to and including Beaufort force 6 (equivalent to 13.8 m/s) and significant wave heights up to 2 m, provided that:...
Page 7
O- Always consider the environment V – Regular checkups Anytec recommends that you at least once a month go through below points, make a habit to lift the engine hood/cover regularly. It only takes a few minutes but can give you some nice extra days at sea.
Page 8
Please see the instructions of the relevant subcontractor for any equipment supplied / fitted. Anytec Sweden AB provides a 24-month warranty on its production. In the event of major damage to the hull or metal parts, please contact your dealer for a consultation. If this is not done within a reasonable time after discovering the damage / fault, the warranty will cease to be valid.
Page 9
Manual Anytec 868 CAB 2017 (REV A) 2. Hull 2.1 Hull The hull is made of aluminium with keel reinforcement, transverse frame ribs and longitudinal reinforcements. Base plates are 4 mm thick, freeboard 4 mm. The hull structure is of the following quality;...
Page 10
Manual Anytec 868 CAB 2017 (REV A) 3.5 Tanks Your boat has a 550 l fuel tank, but because of the shape of the tank there may be some variation between the readings on the gauge and the actual fuel level. We suggest that you top up with 68 l, 137 l och 275 l (half tank) and then up to full.
Page 11
Make tests in the operation of the boat to learn how trim tabs & boat reacts. Anytec recommends using tabs at the beam seas, head sea and offset load. For operation and maintenance of trim tabs, refer to the manual for these.
Page 12
Manual Anytec 868 CAB 2017 (REV A) 3.14 Fire extinguisher The fire extinguishing equipment consists of one handheld extinguisher of powder type, mounted on the steering console. O- check the fire extinguisher at regular intervals to make sure it can operate at full power It is the responsibility of the owner / user: ...
Page 13
Manual Anytec 868 CAB 2017 (REV A) W- The combined capacity of the bilge system is not designed to withstand bailing of the boat if the hull is damaged. 3.16 Fuel System The system comprises of a fuel tank, venting and filling. Watch out for any spillages or odours in order to ensure the best possible function.
Manual Anytec 868 CAB 2017 (REV A) 4. Electrical Systems 4.1 General There is a 12V system for motors, controls and consumption, and the electrical main switches is located on the dash board. The battery choice is indicated by the engine manufacturer.Two additional sacrificial anodes are mounted on the stern;...
Make sure that the hoses for the self-draining system on the stern of the boat are fria från nedfall eller dyligt. We recommend that you check the bilge pump function once a month. ANYTEC BOATS AB wishes you many fun hours out on the sea! Anytec Sweden AB Magasinsgatan 7 903 27 UMEÅ...
Page 16
Manual Anytec 868 CAB 2017 (REV A) Anytec Sweden AB Magasinsgatan 7 903 27 UMEÅ 0770-220 210 - 16 - https://www.boat-manuals.com/...
