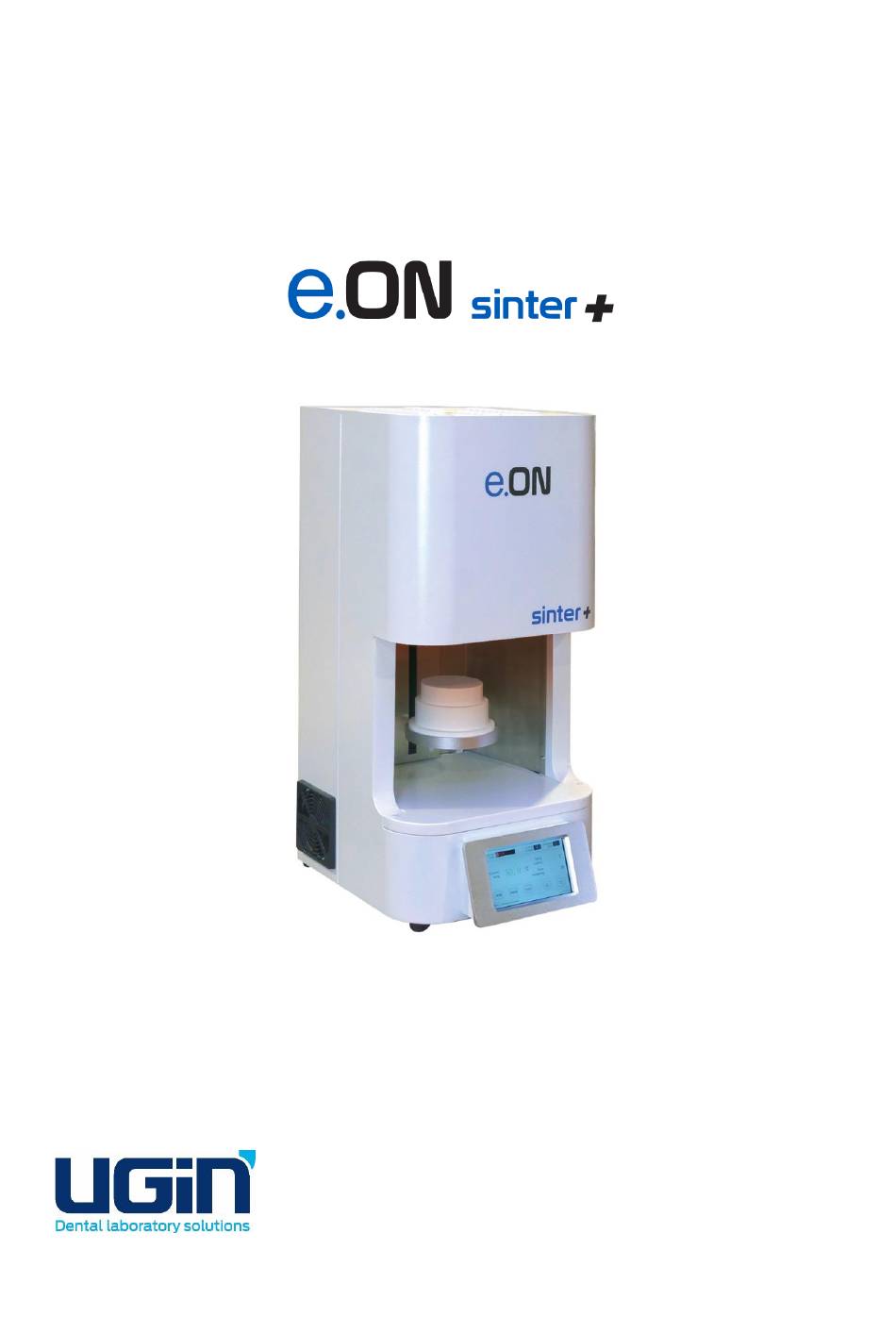

- Page 1 INSTRUCTIONS FOR USE Sintering furnace 25 rue de la Tuilerie 38170 SEYSSINET-PARISET France Tél. National : 04.76.84.45.45 - Tél. International : (+33)4.76.84.45.43 info@ugin-dentaire.fr - http : www.ugindentaire.fr Rév 150620...
-
Page 3: Table Of Contents
6.8. EXAMPLE OF CYLCE FOR ZIRCONIA BLOCK IRELAND ..............20 ADVICES - PRECAUTIONS FOR USE ....................21 MAINTENANCE ..........................23 8.1. HEATING ELEMENT REPLACEMENT ..................... 24 8.2. TROUBLE-SHOOTING........................25 Non-contractual visual / Translation into English from original in French UGIN DENTAIRE... -
Page 4: Equipement Description

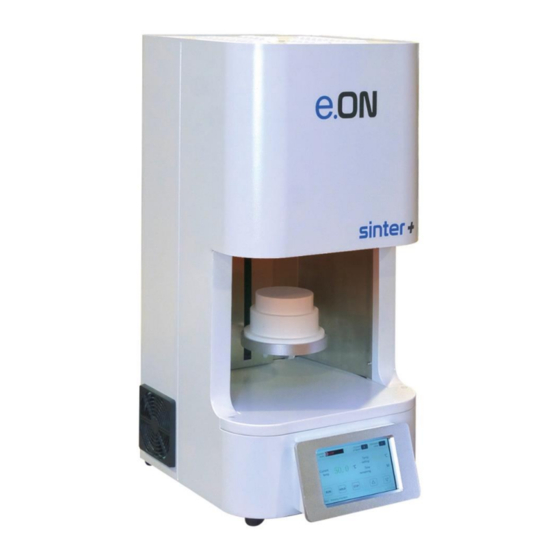

Instructions for use (rev 150620) e.ON SINTER + EQUIPEMENT DESCRIPTION N° DESCRIPTION Upper part of furnace Platform Support (base and floor) Touch screen Power switch ON/OFF (rear side) Tray for sinterizing cover Tray for sinterizing UGIN DENTAIRE... -
Page 5: Wiring Diagram
Instructions for use (rev 150620) e.ON SINTER + WIRING DIAGRAM UGIN DENTAIRE... -
Page 6: Instructions For Use
- The furnace must be placed on a flat surface, keeping sufficient clearance around the unit to ensure proper ventilation. - Do not block the ventilation openings to avoid overheating. UGIN DENTAIRE... - Page 7 NOT HORIZONTAL POSITION - Never use the furnace without support. - Use only the support, tray for sinterizing and cover provided by UGIN DENTAIRE. Before use, check it (no dirt or damage). If damage: do not use.
-
Page 8: Waste Disposal
UGIN DENTAIRE 25 rue de la Tuilerie 38170 SEYSSINET-PARISET – FRANCE ▪ UGIN DENTAIRE declares, on its own exclusive responsibility, that the product: - Sintering furnace e.ON SINTER + - Serial number: see the equipment’s EC declaration of conformity ▪... -
Page 9: Technical Information
Sensor double components Pt/Rh (Platinum / Rhodium) Dimensions 830mm x 420mm x 600mm (height, width, depth) Weight 74 kg Chamber size Diameter 110 mm Height 120 mm Noise level < 70 dB (A) Maximum power consumption 3 kW Supply voltage 230 V (50/60 Hz) UGIN DENTAIRE... -
Page 10: Conditions Of Use, Transport And Storage
Heating elements may be damaged in horizontal position due to vibration/shock. 3.3. ACCESSORIES ▪ Accessories delivered with the furnace (included in the packaging): ACCESSORIES QUANTITY UGIN CODE - Tray for sinterizing FCE07SIN0030 - Tray for sinterizing cover FCE07SIN0023 - Box of zirconia pearls... -
Page 11: Installation
This unit requires its own power line and has to be connected to a circuit breaker. Grounding is mandatory to avoid accidents and the dangers of overheating the power line. Due to the power of furnace: connect it directly to the mains, do not use multiple sockets (risk of electrical interference). UGIN DENTAIRE... -
Page 12: Before Start-Up
2 hours at 300°C to eliminate condensation and avoid fractures of the refractory material. ▪ Carry out a decontamination program as a precautionary measure before the first use of the furnace: start the pre-recorded program number 40 (see chapter 5.6.1). UGIN DENTAIRE... -
Page 13: Start-Up
DO NOT PLACE ANY OBJECT WHICH MAY HINDER THE ASCENT AND DESCENT OF THE PLATFORM d) First time use, press the “arrow key upward” and “arrow key downward” on touch screen. Check the alignment of the platform with the base of the chamber: movements must be made without friction. UGIN DENTAIRE... -
Page 14: Use And Configuration
Program editor Program settings. Parameter setting Software settings. Only access with technician code (reserved for technicians customer’s service UGIN DENTAIRE). Language selection Available languages: English, French, Spanish and Italian. Date setting Setting the date, time and day of the week. -
Page 15: Real-Time Curve (Current Cycle)
"Caution: press the Ok key, the data will be saved". Press "Ok" to confirm or "Cancel" to cancel. When the desired changes of program have been made, press "SAVE" key to save the complete program. After validation, the “Working interface” displayed on the screen. UGIN DENTAIRE... -
Page 16: Programming Instructions
These data must be calculated from the desired increase/decrease rate, following the recommendations given (see examples below). Never write on the screen the desired speed directly, the software cannot make the calculation and it takes the value as a temperature or a time “untreated”. UGIN DENTAIRE... -
Page 17: Examples Of Calculation
The modification of the parameters is therefore reserved for technicians of customer’s service UGIN DENTAIRE. NOTE: even if changes are made to the settings, when saving them, a screen is displayed to insert the password. -
Page 18: Programs
▪ Always place the support (base + floor) on the platform during carry out a decontamination cycle. ADVICE: add pieces of white Zirconia (absorption of pollutants) to improve the effectiveness of decontamination: yellow colour = enclosure still contaminated: repeat a decontamination cycle black colour = ok: furnace ready UGIN DENTAIRE... -
Page 19: Example Of Programs
T2: 60 C2: 300 T2: 90 C3: 1000 T3: 240 C3: 1000 T3: 360 C4: 1480 T4: 90 C4: 1480 T4: 90 C5: 1480 T5: 90 C5: 1480 T5: 90 C6: 800 T6: -121 C6: 800 T6: -121 UGIN DENTAIRE... -
Page 20: Positioning The Elements And Starting The Cycle
▪ For use the furnace, always place the support on the platform, including for the decontamination program. ▪ Use only the original support e.ON SINTER + UGIN DENTAIRE. ▪ Before use, check if it is in perfect condition: presence of dirt or damage. -
Page 21: Closing The Platform And Start Cycle
These movements are realized automatically: the user does not have to intervene. IMPORTANT: during the platform’s movements, DO NOT PRESS BUTTONS (hold, stop, arrow key upward and downward): suspend cycle Note: when start the cycle, a noise can be generated by the power transformer. UGIN DENTAIRE... -
Page 22: Example Of Cylce For Zirconia Block Ireland
5. Cooling 13°C/min, time required: 52 minutes C5: 1480 T5: 52 6. Natural cooling C6: 800 T6: -121 ▪ Total programmed time: 342 minutes (5h 42min) ▪ Natural cooling time: 268 minutes (4h 28min) ▪ Total cycle time: 610 minutes (10h 10min) UGIN DENTAIRE... -
Page 23: Advices - Precautions For Use
HEATING ELEMENTS (RODS) Molybdenum silicon rods are very brittle at The heating elements must not be maintained room temperature: do not handle them. for long periods between 400°C and 700°C to avoid their oxidation. UGIN DENTAIRE... - Page 24 Clean (registered brand) with decontamination cycle. program. black colour = ok: furnace ready. High translucency zirconia are very sensitives (crossed discoloration risk): user must do regularly decontamination program. Note: observe the instructions set out in chapter 8 – maintenance. UGIN DENTAIRE...
-
Page 25: Maintenance
If the support is damaged or cracked: do not use and replace-it. - Regularly check the electrical contacts of the heating elements and tighten. NOTE: do not use compressed air to cleaning: risk of damage to the accessories and the suspension of particles of the refractory material. UGIN DENTAIRE... -
Page 26: Heating Element Replacement
CAUTION: the ends of the heating elements must be separate from the top cover of the furnace to avoid deformation. 7. Reassemble in the reverse order. NOTE: these operations are only for damaged heating element to replace. UGIN DENTAIRE... -
Page 27: Trouble-Shooting
Clean the chamber using a Nacera Clean type visible on the rods brands or types zirconia product (registered trademark) and launch a decontamination program (pre-recorded in No. 40). Zirconia pearls have Pearls are polluted Replace with new sintering beads. a discoloration in yellow colour UGIN DENTAIRE... - Page 28 25 rue de la Tuilerie 38170 SEYSSINET-PARISET France Tél. National : 04.76.84.45.45 - Tél. International : (+33)4.76.84.45.43 info@ugin-dentaire.fr - http : www.ugindentaire.fr...
