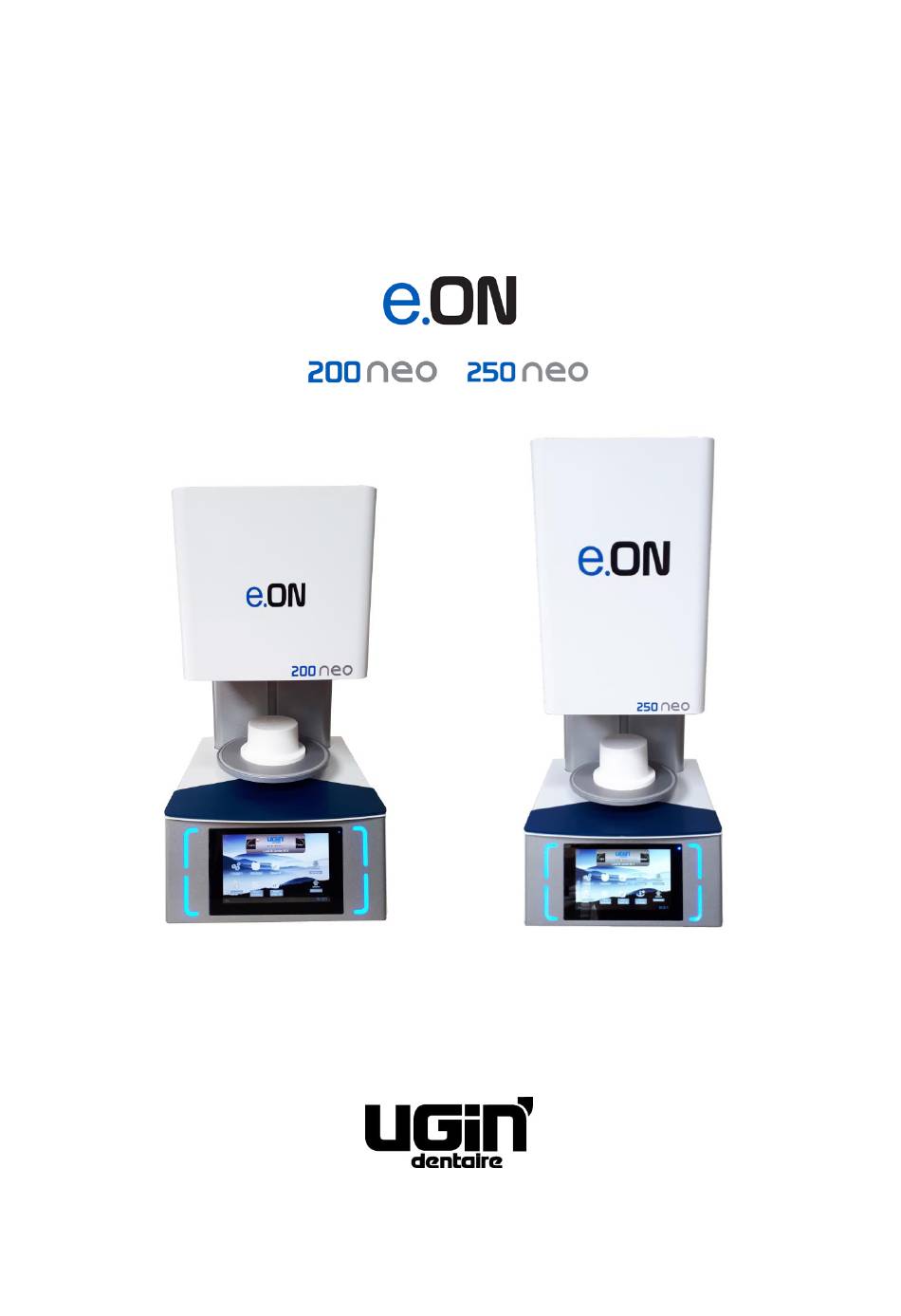

INSTRUCTIONS FOR USE
Ceramic firing and pressing furnace
25 rue de la Tuilerie 38170 SEYSSINET-PARISET – France
Tél. National : 04.76.84.45.45 - Tél. International : +33.4.76.84.45.43
Email : info@ugin-dentaire.fr - http : www.ugindentaire.fr
Rev 141119

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e.ON 200 NEO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ugin e.ON 200 NEO

Summary of Contents for Ugin e.ON 200 NEO

  • Page 1 INSTRUCTIONS FOR USE Ceramic firing and pressing furnace 25 rue de la Tuilerie 38170 SEYSSINET-PARISET – France Tél. National : 04.76.84.45.45 - Tél. International : +33.4.76.84.45.43 Email : info@ugin-dentaire.fr - http : www.ugindentaire.fr Rev 141119...

  • Page 3: Table Of Contents

    Rev 141119 e.ON 200 NEO / e.ON 250 NEO e.ON 200 NEO / e.ON 250 NEO Equipment description ........................ 4 INSTRUCTIONS FOR USE ......................5 SAFETY INSTRUCTIONS ........................5 1.1. USE ..............................5 1.2. SAFETY INSTRUCTIONS ........................5 1.3. WASTE DISPOSAL ..........................6 EC DECLARATION OF CONFORMITY ....................

  • Page 4: Equipment Description

    Rev 141119 e.ON 200 NEO / e.ON 250 NEO A. Equipment description N° Description Power switch ON/OFF Power socket (furnace) Connector for vacuum pump Vacuum pump power socket Rating plate Quick coupling Ø6 (only for eON 250 NEO) UGIN DENTAIRE...

  • Page 5: Instructions For Use

    These furnaces have to be operated only by dental professionals. e.ON 200 NEO and e.ON 250 NEO have to use in the conditions and for the uses described in this manual. Any other use that will be made of it (such as firing other materials, heating food products, etc.) is considered inappropriate.

  • Page 6: Waste Disposal

    - Never use the furnace without firing base / support pressing. Use only those provided by UGIN DENTAIRE. Before use, check it (no dirt or damage). If damage: do not use. Place only one firing base or one support pressing on the tray (do not stack, never simultaneously) Use only genuine spare parts.

  • Page 7: Ec Declaration Of Conformity

    25 rue de la Tuilerie 38170 SEYSSINET-PARISET – FRANCE  UGIN DENTAIRE declares, on its own exclusive responsibility, that the product: - Ceramic firing furnace e.ON 200 NEO - Ceramic firing and pressing furnace e.ON 250 NEO - Serial number: see the equipment’s EC declaration of conformity ...

  • Page 8: Technical Information

    3.1. TECHNICAL DATA The ceramic furnaces e.ON 200 NEO and e.ON 250 NEO are intended for firing the ceramic dental prostheses. Then, e.ON 250 NEO model enable to firing with pressing. These furnaces have to be operated only by dental professionals and in the conditions described in this manual (see chapter 1.1 and 3.2).

  • Page 9: Conditions Of Use, Transport And Storage

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 3.2. CONDITIONS OF USE, TRANSPORT AND STORAGE  Authorised conditions of use - Ambient temperature: +5°C to +40°C - Humidity range: maximum relative humidity 80% for temperatures until 31°C, without condensation and decrease linear until 50% to 40°C, without condensation...

  • Page 10: Installation And Start-Up

    4. INSTALLATION AND START-UP 4.1. UNPACK  Unpack e.ON 200 NEO / e.ON 250 NEO and check that it is in perfect order (furnace and accessories)  Any defects can be reported to the carrier  Remember to get the carrier to sign the delivery note NOTE: keep the original packaging to transport the furnace (see chapter 3.2)
  • Page 11 Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO When the tray has reached the lower position, the firing or pressing base can be placed on top After approximately 40 seconds, the start screen of the furnace appears (Fig 1). The installation is...

  • Page 12: Use

    - Date  Display in zone 2: Display pictograms (e.ON 250 NEO: 10; e.ON 200 NEO: 8) - Equipment configuration (Config.): see chapter 5.2 - Ceramic, Favorite ceramic, Ceramic SP, Favorite ceramic SP, Pressing, Favorite pressing: access to parameters of each program (see chapters 5.4, 5.5, 5.6)

  • Page 13: Configuration

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.2. CONFIGURATION When press key “Config.” , the drop-down menu appears to customize the unit and to access a series of specific functions. Configuration menu contains 14 parameters.
  • Page 14 The indicated value shows the time that will elapse before a screen saver is activated. This setting can be changed from 15 to 30 minutes. In stand-by mode, the pictograms in the start screen will disappear and the UGIN DENTAIRE’s logo will start moving randomly on the screen. Only the RETURN key and the time indication are displayed.
  • Page 15 Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.2.10. USB copy When press the key ►, a menu with 5 lines appears: - Copy program (furnace to USB stick): to copy the programs setting inside the furnace and the files...
  • Page 16 Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.2.10.3. Traceability of the cycles (Furnace→USB): - -Ceram, - - Ceram SP, - - Press This line only contains the fully completed cycles. This function ensures the traceability of the work performed by saving the settings that were used for each one of them.
  • Page 17 Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.2.11. Silver test This programme has been pre-defined and allows to calibrate the temperature of the unit in case of unsatisfactory firing. These settings cannot be modified. Open the firing chamber, place a 30 mm silver wire on the firing base and press the START button.

  • Page 18: Documents

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO This function allows to update the software and process versions, and the documents. These parameters cannot be accessed without a valid code. The code will be provided to the user along with the required updates.

  • Page 19: Ceramic Firing Programmes

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.4. CERAMIC FIRING PROGRAMMES Pictogram Program Programmes name start screen Ceramic C001 to C100 Favorite Ceramic C001 to C100 The setting screen display after select the program Ceramic or Favorite Ceramic. This screen is composed...

  • Page 20: Program Parameters (Zone 3)

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.4.1. PROGRAM PARAMETERS (ZONE 3) IMPORTANT: if the numeric value of the parameter exceeds the minimum/maximum limits, a message will indicate the limits to be observed. If these parameters are not modified, the indicated limits will be...
  • Page 21 Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO Vacuum pump This parameter allows to choose between 3 modes of operation of the vacuum pump. To modify, press the ▼ key to go to the drop-down menu and confirm your choice.
  • Page 22 Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO External cooling time (0 to 60 minutes) Set at 0: the chamber opens in one phase, after vacuum flooding and holding time If the value is > 0: the tray is moved in 6 equal stages during the indicated time. The chamber can be opened in one phase by press the key Stand-by temperature (minimum 70°C)

  • Page 23: Copy, Start And Graphic View Keys (Zone 4)

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.4.2. COPY, START AND GRAPHIC VIEW KEYS (ZONE 4) Identical for CERAM.SP & PRESSAGE COPY With this button you can duplicate a program. After selecting the cycle to be copied (source), the “target”...

  • Page 24: Special Ceramic Firing Programmes (Sp)

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.5. SPECIAL CERAMIC FIRING PROGRAMMES (SP) Pictogram Program Programmes name start screen Ceramic SP (Special Ceramic) C101 to C200 Favorite Ceramic SP (Favorite Special Ceramic) C101 to C200 Except for the program numbers, the display is identical to that of ceramic firing programmes.

  • Page 25: Pressing Programmes

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.6. PRESSING PROGRAMMES Pictogram Program Programmes name start screen Pressing P01 ti P50 Favorite Pressing P01 to P50 Except for the programme numbers, the display is identical to that of ceramic firing and special ceramic firing (SP) programmes.

  • Page 26: Pressing Cycle Phases

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO Pressing time (0 to 60 minutes) This parameter is only active in the TEMPO and CADENCE mode. Even if this value can be modified in the FIXED mode, it is not taken into account Press level (1,5 to 5 bar) Indicates the pressure in the injection cylinder.

  • Page 27: Conseils De Pressage

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.6.2. CONSEILS DE PRESSAGE The pressing tests have established the importance of the temperature parameters for the components used during this process. To guarantee proper results, we recommend to observe the following instructions.

  • Page 28: Saving & Programmes' Traceability

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 5.7. SAVING & PROGRAMMES’ TRACEABILITY This unit is equipped with a USB 2 socket for data backup and transfer.  SAVING THE PARAMETERS (FURNACE / USB) 1) Insert the USB stick into the right side of the unit...

  • Page 29: Maintenance And Trouble-Shooting

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 6. MAINTENANCE AND TROUBLE-SHOOTING Before to carry out the maintenance work and/or cleaning, e.ON 200/250 NEO has to: - disconnected from the main power supply (switch OFF and unplug to mains socket) - at room temperature: wait the cooling after use (risk of burns and/or damage) 6.1.

  • Page 30: Protection

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 6.2. PROTECTION  OVERVOLTAGE This furnace is protected against over-voltage by a system of active and passive filters. As a precautionary measure, we recommend to save all programmes on the USB stick supplied with the unit.

  • Page 31: Trouble-Shooting

    Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO 6.3. TROUBLE-SHOOTING When the furnace detect a failure, a message display in the screen, and an alarm sound. Failures’ guide: Message Explanation Cause Process to follow SENSOR Thermocouple...
  • Page 32 Instruction for use (rev 141119) e.ON 200 NEO / e.ON 250 NEO Message Explanation Cause Process to follow VACUUM The minimum This message is displayed after 1 - stop the alarm sound: press FAILURE vacuum level minute of operation of the vacuum...
  • Page 33 25 rue de la Tuilerie 38170 SEYSSINET-PARISET – France Tél. National : 04.76.84.45.45 - Tél. International : +33.4.76.84.45.43 Email : info@ugin-dentaire.fr - http : www.ugindentaire.fr...

This manual is also suitable for:

E.on 250 neo
