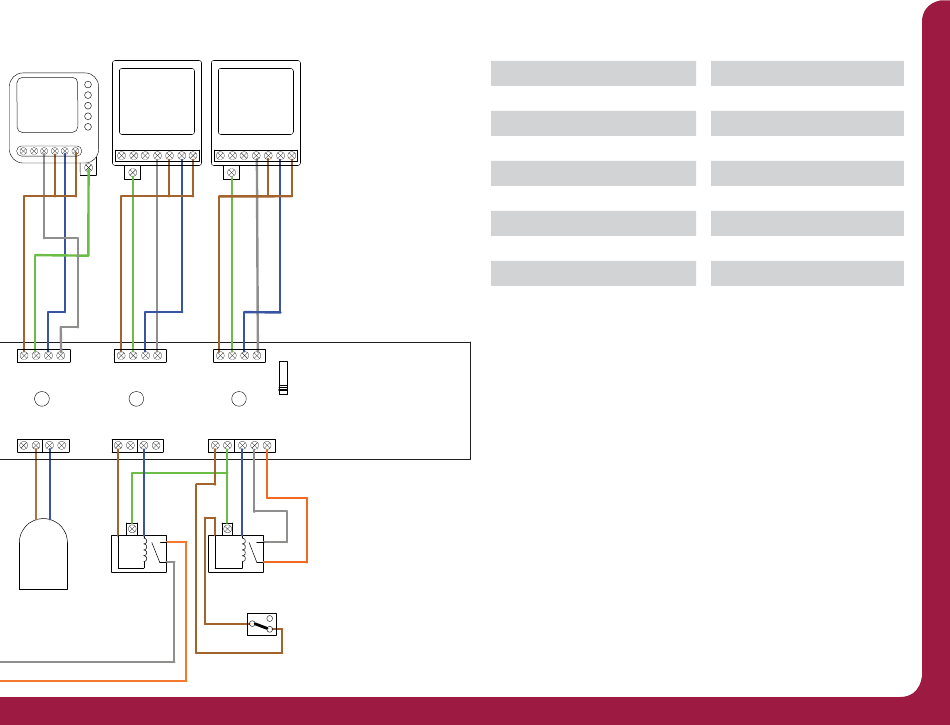

UFH HEATING
SmartStat
UFHPROGW
RT1 - A 2 A1 N
L
RT2 RT1 - A2 A1
N L
L E N SL L E N SL
ZONE 3 ZONE 4
ZONE 3 ZONE 4
L L N N L L N N
L N
ZONE 2
RADIATOR RADIATOR
VALVE VALVE
ACTUATORS
230V
VALVE WITH
ENDSWITCH
HOT WATER
SmartStat
RT2 RT1 - A2 A1
N L
NO
ZONE 4 MANIFOLD PUMP CONTROL SWITCH
L E N SL
SELECT YES FOR UNDERFLOOR HEATING
AND NO FOR ALL OTHER SYSTEMS
HOT WATER
YES
NOTE
HOT WATER VALVE
THE HOT-WATER VALVE LIVE FEED MUST BE
L E N GR OR
CONNECTED THROUGH THE CYLINDER HIGH
LIMIT THERMOSTAT
HOT WATER VALVE
HOT WATER STAT

Ratings

Number of Heating Zones
Number of Hot Water Zones
Neon Indication
DIN Rail Mounting
Supply
Relay Load Max
Total Load Max
IP Protection
Installed Dimensions (L,H,D)
Weight
Model: UFH4ZW
4
1
Y
Y
230v AC 50Hz 1 Phase
3 Amp Resistive
5 Amp Resistive
IP20
384 x 148 x 60mm
800g
