Installation
The UFH4ZW can be mounted directly to a wall using four screws or
alternatively, the unit can be DIN rail mounted.
When DIN Rail mounting, you rst need to insert the two clips
provided on the back of the UH4, as shown in the image;
•

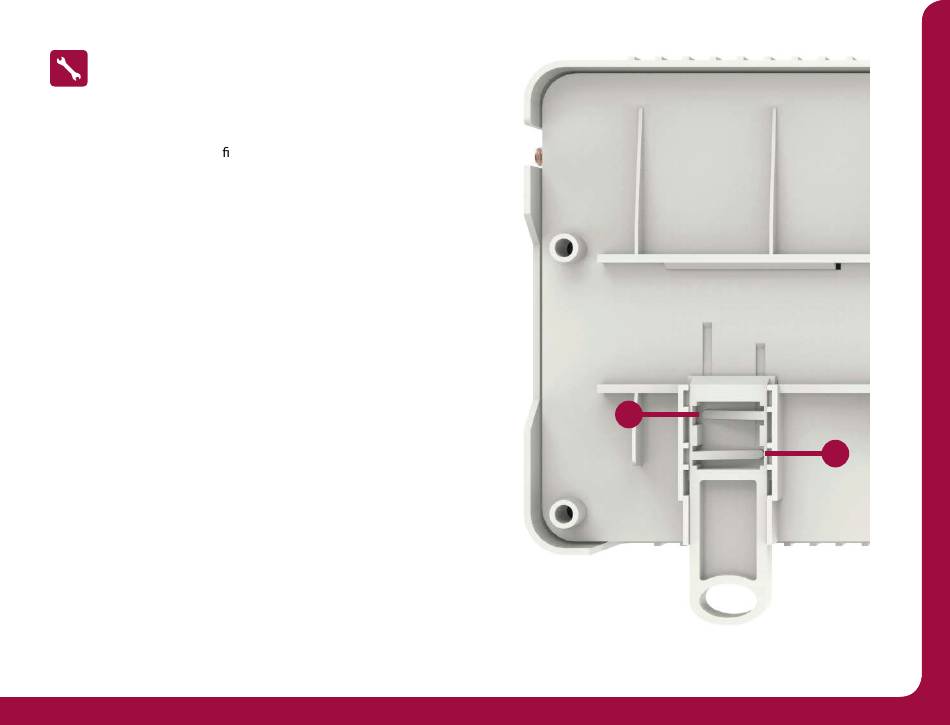

On the back of the UFH4ZW, position the clip in the middle
and slide down.
•
Points A and B locate in the corresponding holes and
lock into place.
•
Locate the UFH4ZW onto the DIN rail from the top.
•
Pull the clip down and push the bottom of the UFH4ZW onto
the DIN rail.
•
Releasing the clip will lock the UFH4ZW in place on the DIN rail.
To remove the UFH4ZW, pull both clips down and remove from the DIN rail.
Model: UFH4ZW
Insert clip here.
Then Slide down to lock in place.
A
B
