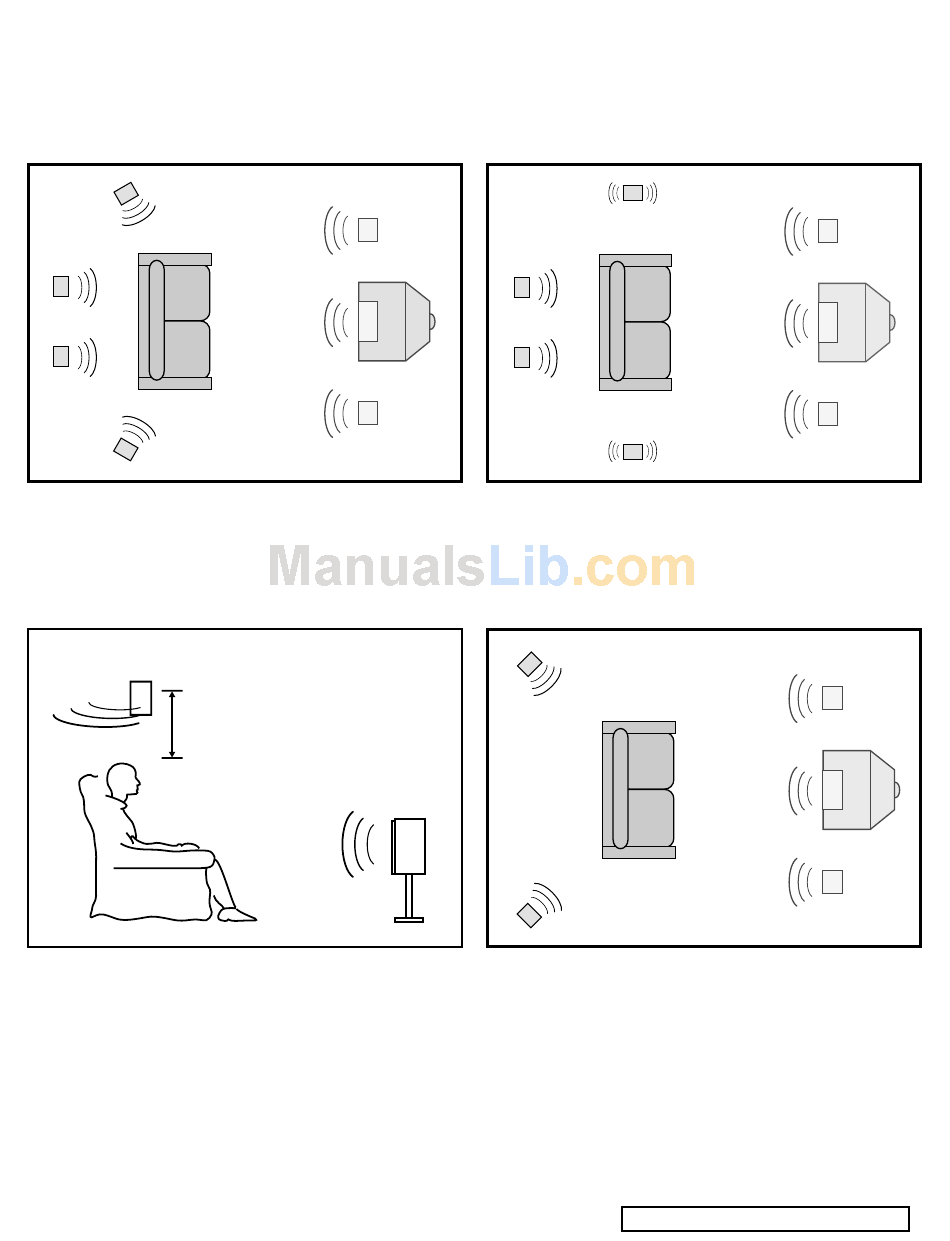

Suggested Speaker Locations
surround
rear left
surround
back left
surround
back right
surround
rear right
This is the preferred speaker setting if
you are using surround backs.
surround
rear left
2-3 ft.
This speaker setting is preferred if you
are not using surround backs.
front left
center
front right
This speaker setting is preferred if you are
using dipoles for your surround rears.
This speaker setting is preferred if you
are not using surround backs.
surround
rear left
surround
back left
surround
back right
surround
rear right
surround
rear left
surround
rear right
