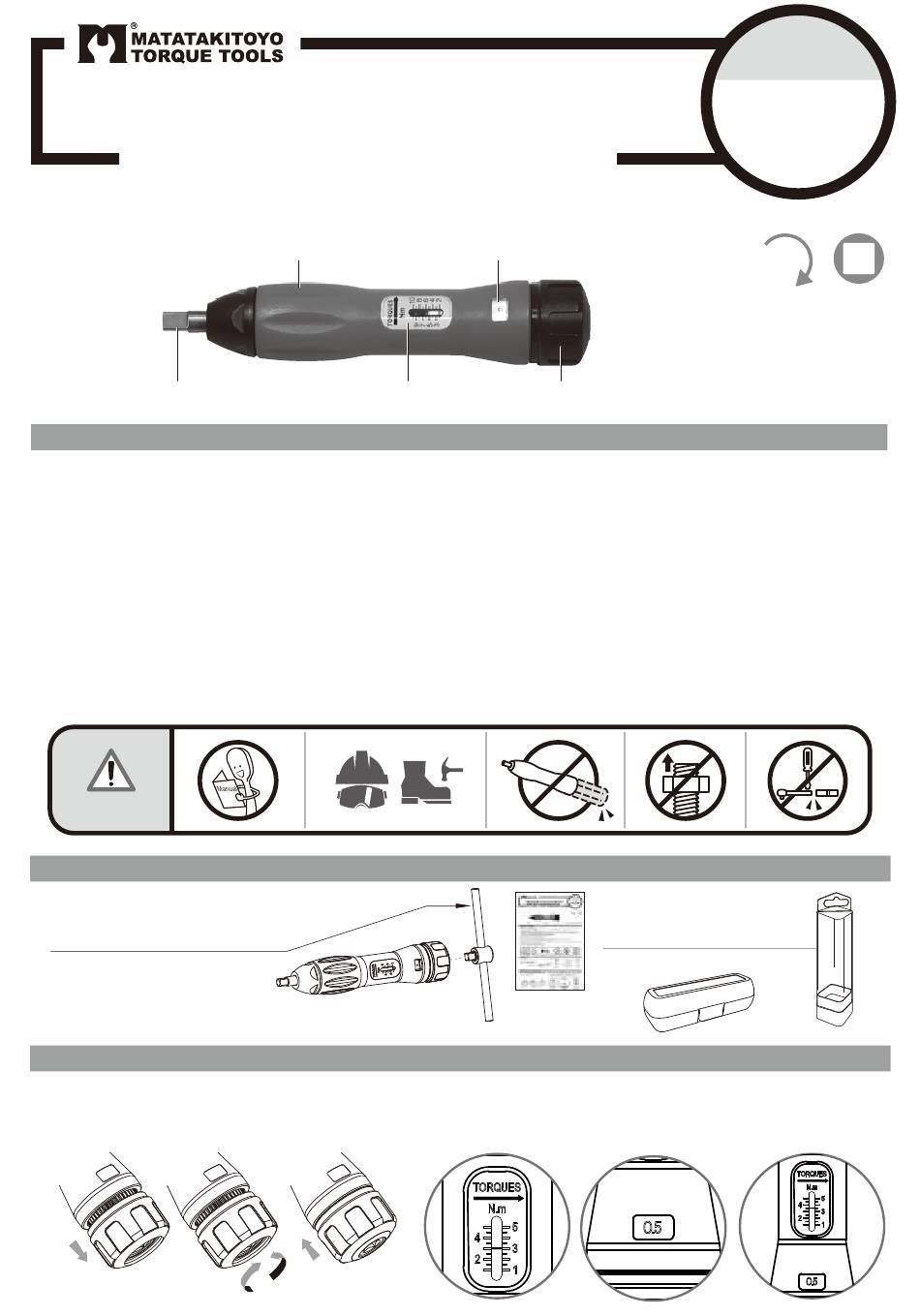

Matatakitoyo Torque Tools MTD6 Seies Operation Manual

Adjustable Torque Screwdriver
OPERATION MANUAL
Driver 1/4"
BEFORE STARTING
1. Study this instruction before use.
2. This torque wrench as calibrated and tested before leaving the factory is certified to meet the current standard
specification and has an accuracy of ±6%.
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTERNERS ONLY. DO
NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Over torque will cause tool damage and personal injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result of losing accuracy and void the warranty.
7. Do not continuously apply force after hear click or feel shock.
8. Do not use any format of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Use special care at minimum torque setting.
10. Please wear gloves and goggles when working.
WARNING
CONTENTS
Above MTD6-1405N & 1450I with
sliding T-Handle for more convenient use.
Torque screwdriver
HOW TO SET TORQUE VALUE
Pull to unlock and turn it to set the target torque.
Then push it back to lock.
1 2
Unlock Set
Body Graduation Scales
Main Scales
For example, ITEM NO. MTD6-1405N target torque is 3.5 Nm.
Red line of main scale reach 3 Nm (see A) and adjust
graduation scale to 0.5 Nm (see B), Then 3+0.5=3.5 Nm (see C)
3
A
Lock
Body color : Black, Red, Blue or Green
Knob
Only MTD6-1402N & 1420I
in a limpid box.
Supplied in a plastic box.
Manual
B
Models covered
MTD6
1/4"
TORQUE
C
