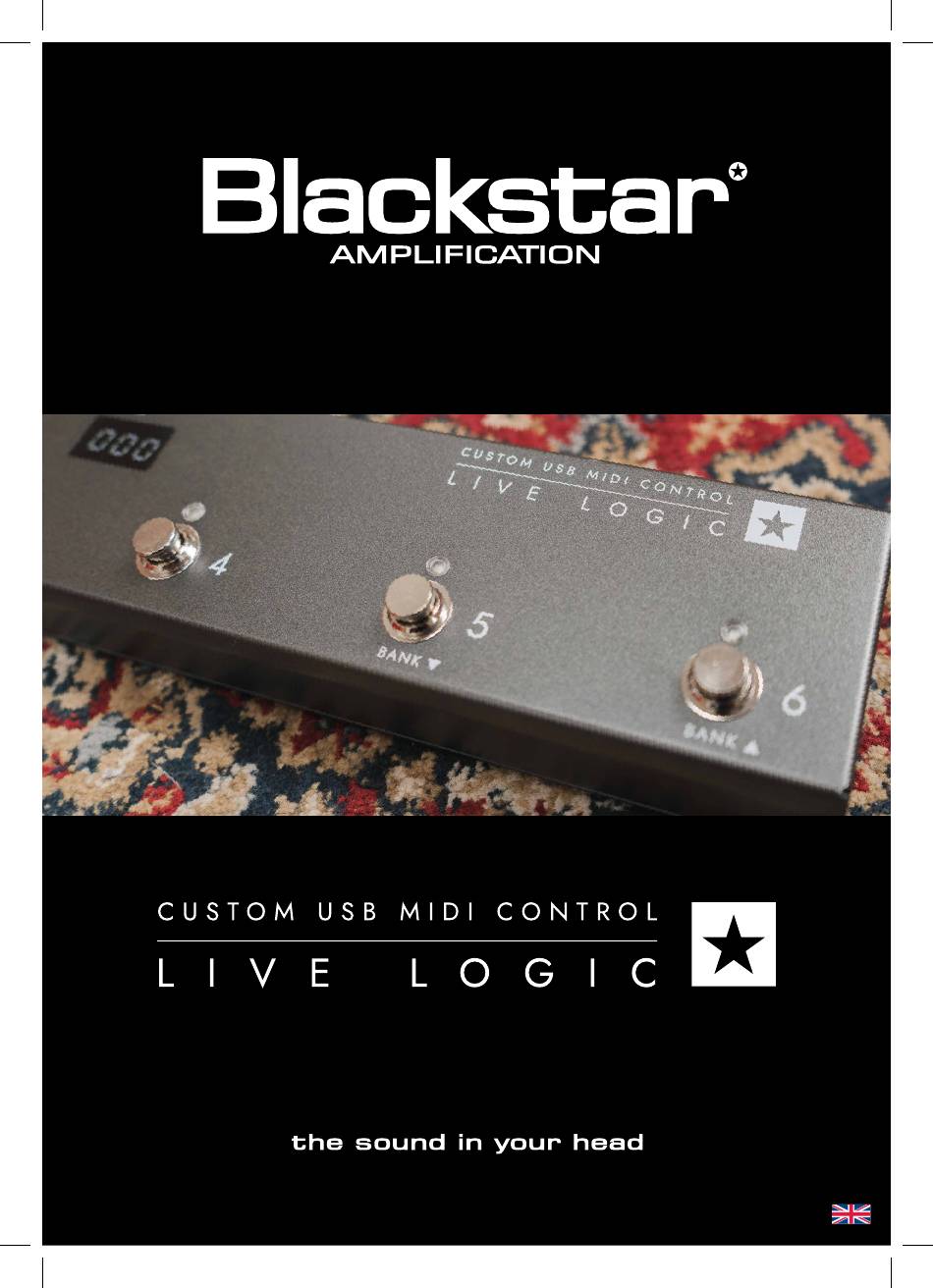

  • Page 1 Owner’s Manual Designed and Engineered by Blackstar Amplification UK...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. 8.
  • Page 3 Condensation can form on the inside of an amplifier if it is moved from a cold environment to a warmer location. Before switching the unit on, it is recommended that the unit be allowed to reach room temperature. Unauthorised modification of this equipment is expressly forbidden by Blackstar Amplification Ltd. 1½...
  • Page 4 10 Lite software. Although an excellent software, you have total freedom to use and control an array of Midi products with your own preferred software. If you like what you hear and want to find out more about the Blackstar range of products please visit our website at www.blackstaramps.com.

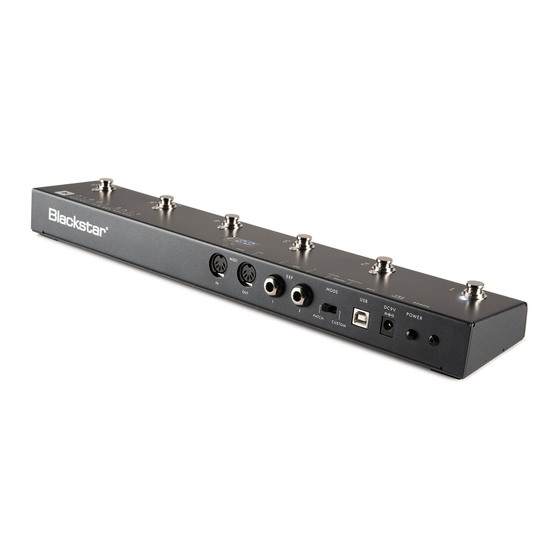

  • Page 5: Rear Panel

    B A N K B A N K 7 & 8. The Live Logic Footcontroller can be powered by either USB from your PC/ Mac, a suitable 9V battery or Blackstar’s compact PSU-500 (sold separately) which operates from 100-240V AC and comes with 4 different plug fittings, making it usable in many countries around the world.
  • Page 6  External Midi Hardware MIDI IN  MIDI OUT  Live Logic Midi Thru set to Off PC/MAC  Add Expression pedals to Live Logic to control DAW or external MIDI equipment. P OW E R D C 9 V...

  • Page 7: Firmware Update

     In patch mode, the Live logic will send Program Change (PC) messages from 0 to 127.  Switch 1-4 will select the PC number and Switches 5 and 6 will bank down and MODES up in groups of 4.
  • Page 8  Please note: When connecting any loop to the live logic, you should set the MIDI thru to OFF.  Live Logic Midi out > Pedal MIDI input > Pedal MIDI output > Live Logic MIDI in.  MIDI THRU will default to off.
  • Page 9  CC - CONTROL CHANGE NOTE  MIDI CHANNEL - Set the MIDI Channel on which the selected footswitch/ expression pedal sends the Program Change message.  MIDI CHANNEL - Set the MIDI Channel on which the selected footswitch/  CC MESSAGE NUMBER - Set the Control Change (CC) number that you wish expression pedal sends the Program Change message.

  • Page 10: Technical Specification

    Dimensions (mm): 395 x 70 x 35 - Tap the footswitch in time with your desired tempo to set the speed. Accessories: - The tempo will be shown on the Live Logic display  PSU-500 Power Supply (Sold Separately)  Third party expression pedals (Sold Separately) •...
  • Page 12 For the latest information go to: www.blackstaramps.com Whilst the information contained herein is correct at the time of publication, due to our policy of constant improvement and development, Blackstar Amplification Ltd reserves the right to alter specifications without prior notice.
