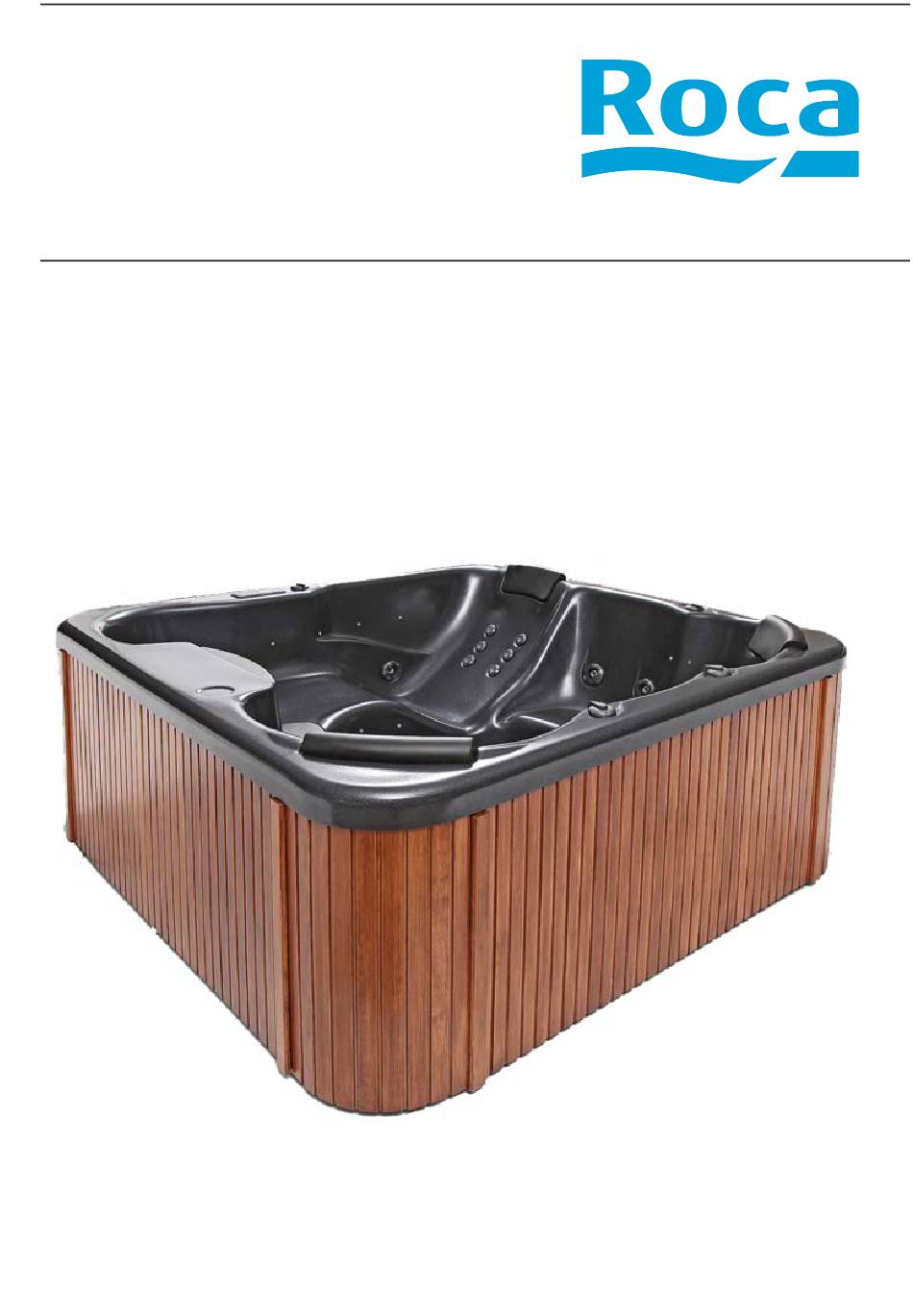

- Page 1 Instructions for Installation BROADWAY SPA...
- Page 2 TABLE OF CONTENTS GENERAL SPECIFICATIONS ..........................1. RECEIVING THE EQUIPMENT ........................2. PREPARING THE PLACE FOR THE INSTALLATION ................. 3. POSITIONING THE SPA ........................... 4. ELECTRICAL CONNECTIONS ......................... 4.1. GROUNDING CABLE CONNECTION ....................4.2. MAINS CONNECTION ..........................5. HYDRAULIC CONNECTION ........................... 6.
- Page 3 CO N G R AT U L AT I O N S A N D T H A N K YO U F O R - 3 polyurethane cushions (gray in a standard option), PURCHASING THIS ROCA PRODUCT - wooden panel in mahogany or pine colour (optional),...
- Page 4 - Proper electrical supply and ensured efficiency of the electrical connection in respect of the equipment - for standard equipment the Broadway SPA requires at most ca. 8,9 kW of power. In both cases, rated power consumption is ab 8,9 kW, 3N 400V AC, 50 Hz (5x4 mm the minimum cross-section of the cord should be at least 5x4 mm .
- Page 5 3N 400 AC electric connection with , kW efficiency protected Water connection, Sewage connection, (5x4 mm ) 1/2", for water filling 50 mm Zone 1 Zone 1 1930 1300 Zone 0 Zone 3 Zone 3 Skimerfilter 0,6 m 0,6 m Zone 3 5.
- Page 6 7. VENTILATION The possible high temperature of the water in the spa (approximately 39 ºC) leads to steam condensation. The spa room must have adequate ventilation. If it does not, it is rec- ommended that you install a dehumidifier to keep the air humidity at a constant temperature and prevent steam from condensing on the ceiling and on the floor.
- Page 8 20080 Casarile (Milano) 56424 Staudt Italia Deutschland Tel. +39.02.900.251 Tel. +49.(0)2602.93610 Fax.+39.02.905.21.74 Fax.+49.(0)2602.936.122 Roca S.A. Roca Polska Sp. z o. o. Apartado 575 ul. Wyczolkowskiego 20, Ponte Madalena 44-109 Gliwice 2416-905 Leiria Polska Portugal Tel. +48.(0)32 339 41 00 T.: +351 244 720 000 Fax.+48.(0)32 339 41 01...
