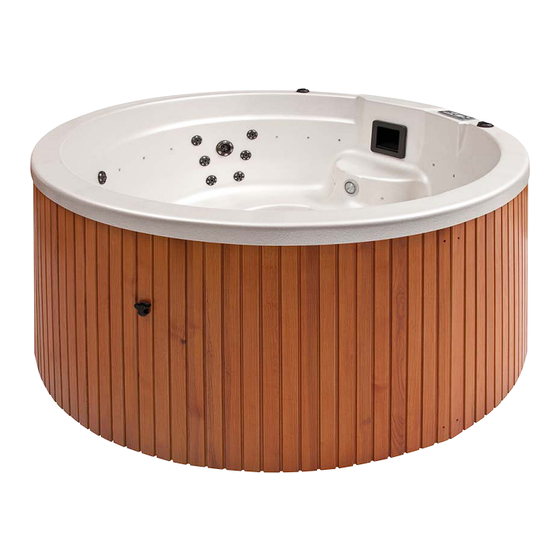

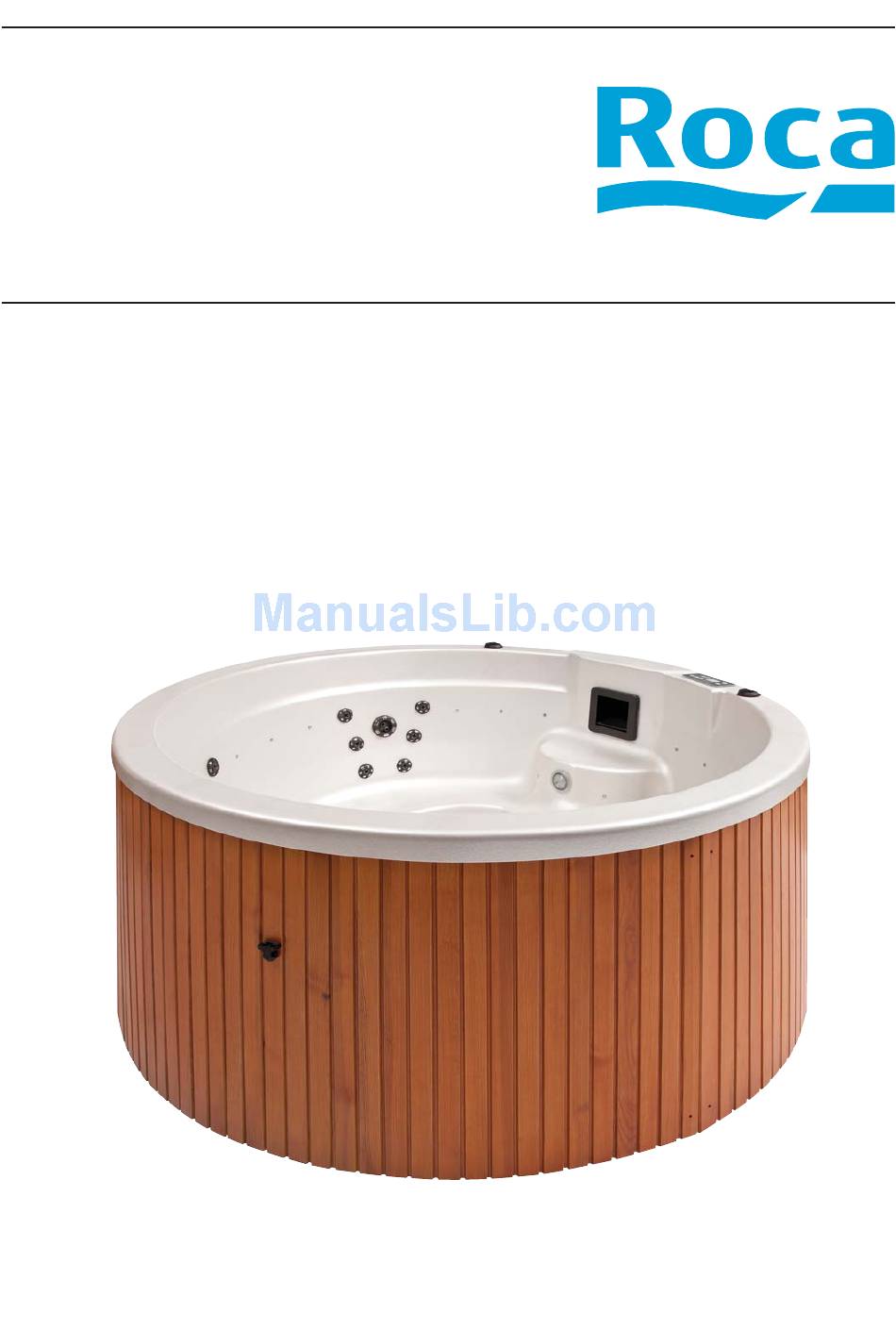

- Page 1 Installation Instructions SPA BROADWAY ROUND...
- Page 2 CONTENTS GENERAL SPECIFICATIONS ..............................1. RECEIVING THE EQUIPMENT .............................. 2. PREPARING THE PLACE FOR THE INSTALLATION ...................... 3. POSITIONING THE SPA ................................4. ELECTRICAL CONNECTIONS ............................... 4.1. Grounding cable connection ............................ 4.2. Mains connection ................................5. HYDRAULIC CONNECTION ..............................6. FILLING AND EMPTYING THE SPA ............................ 7.
-
Page 3: General Specifications
This spa has been designed, manufactured and checked by our - wooden stairs in mahogany or pine colour (optional), technical staff. It must be fitted in compliance with the regulations - thermal cover (optional), in force, and the corresponding instructions should be followed. BREACH OF THIS CONDITION RENDERS THE PRODUCT WARRANTY NULL AND VOID. -
Page 4: Electrical Connections
1. RECEIVING THE EQUIPMENT 3. POSITIONING THE SPA The spa should reach its destination in its original packaging. Medidas -When installing the spa in a corner or next to a side wall, remember de embalaje son: 1920/1920/1310 mm. Once the packaging has to leave 0.5 metres or connection or installation work or fit trap doors been removed, check the spa fully before it is installed and report with a minimum size of 1700x700 mm for accessing all the sides for... - Page 5 230V AC 50Hz electric connection Sewage connection with 6,1 kW efficiency protected 50 mm (3x4 mm ) Vol. 1 Vol. 1 Water connection 1/2” for water filling Vol. 0 Skimmerfilter Vol. 3 Vol. 3 0,6 m 0,6 m Please note: The space below the spa tank is considered volume 3 as a tool is required to remove the panels.
- Page 6 7. VENTILATION The possible high temperature of the water in the spa (approximately 39 ºC) leads to steam condensation. The spa room must have adequate ventilation. If it does not, it is recommended that you install a dehumidifier to keep the air humidity at a constant temperature and prevent steam from condensing on the ceiling and on the floor.
- Page 8 08029 Barcelona 56424 Staudt España Deutschland Tel. +49.(0)2602.93610 Fax.+49.(0)2602.936.122 Roca S.R.L. Via Leonardo da Vinci, 24 Roca Polska Sp. z o. o. 20080 Casarile (Milano) Italia ul. Wyczolkowskiego 20, Tel. +39.02.900.251 44-109 Gliwice Fax.+39.02.905.21.74 Polska Tel. +48.(0)32 339 41 00 Fax.+48.(0)32 339 41 01...
