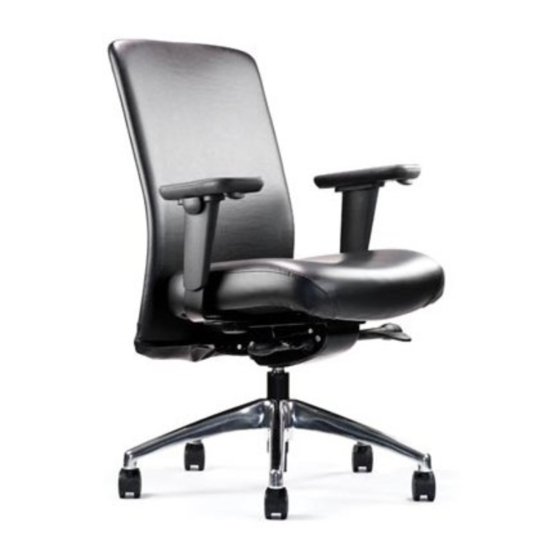

Neutral Posture Balance Ergo Disassembly

Tools: None
Arm Replacement (T-arms)
1.
Activate seat height lever to
maximum length, then tip
the chair forward/over for
access to arm brackets on
underside of seat. If you're
replacing both arms, do one
at a time, noting the "slant"
of the arms support may be
mounted in two directions.
Tools:
3/16" Wrench
People Required: 1 Person
Time: 10 Minutes
Backrest Replacement
1.
To remove backrest, first
remove the black, plastic
cover where back post meets
mechanism. Next, locate
and remove the 3 (3/16") nuts
that secure backrest post
there. Once detached, set
aside for later reinstallation.
For recycling information, please visit
3904 N. Texas Ave., Bryan, TX 77803
04/2011 © 2011 Neutral Posture, Inc. All rights reserved.
2.
Locate where arms attach to
underside of the seat, and
remove the hand-wheel.
Keep all washers in place
for later reinstallation.
2.
Position new backrest
and post assembly into
the same receptacle/stub.
Start the 3 nuts by hand to
avoid cross-threading.
www.NeutralPosture.com/sustainability
T 979.778.0502 F 979.778.0408 •
3.
Slip the old arm support out
and replace with the new
arm. Replace the hand-wheel
with washers (be careful
not to cross-thread).
3.
With nuts started by hand,
tighten all to secure the back
assembly to the mechanism.
NeutralPosture.com
Balance Ergo™
Disassembly
