Neutral Posture NP Series Replacement Disassembly Sheets

Arm Replacement
(NP Series)
No tools required
1 Person: ~3 to 5 minutes

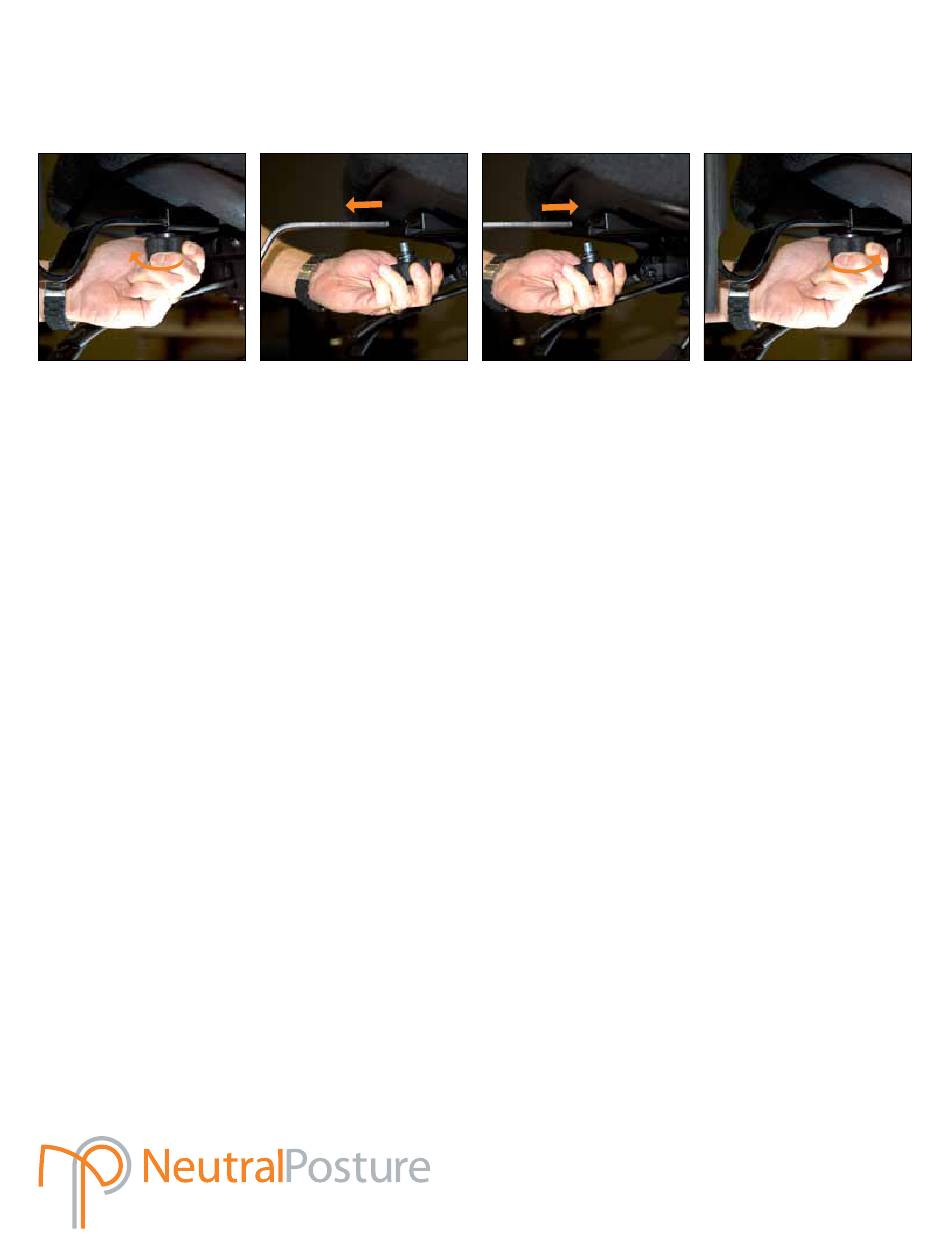

1. Loosen and remove the
handwheel which secures
the arm in the bracket
under the seat. Keep
washers in same order
for reinstallation.
For instructions on how to keep old parts out of area landfills, please visit
3904 N. Texas Ave., Bryan, TX 77803
09/2010 © 2010 Neutral Posture, Inc. All rights reserved.
2. Slide the arm out of the
bracket.
T 979.778.0502
3. Install the replacement
arm in the bracket. The
right arm will have the
pullout adjustment guide
in the arm pad.
www.NeutralPosture.com/environment
F 979.778.0408 • NeutralPosture.com
4. Reinstall the hand wheel
with washers in place
(lock-washer on first, then
beveled washer with
concave side down) and
tighten at your desired
width setting.
