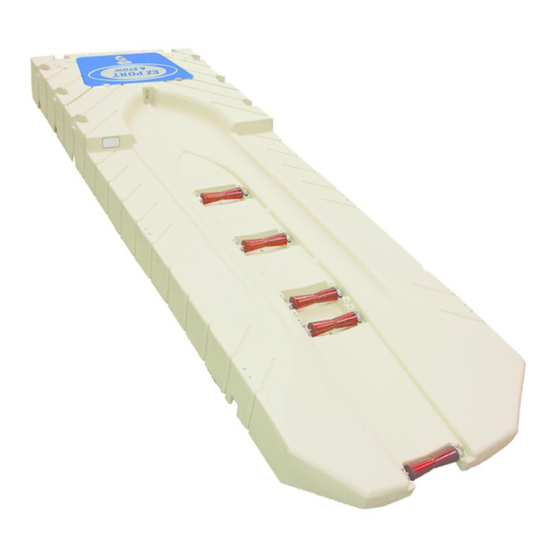

EZ Port & Stow
™
Personal Watercraft Port
Owners Manual and Installation Instructions for EZ Port & Stow™
Model: 206016PW-EZ
Installation Instructions
For questions about features, operation/performance, parts, accessories
or service, call your local dealer or your nearest EZ Dock distributor at
1-800-654-8168 or +1-417-235-2223 for international customers.
Additional information regarding EZ Dock products and services can be
found on the internet at www.ez-dock.com
®
The first dock of its kind...The last dock you'll ever need
.
Advertisement
Table of Contents
Related Manuals for EZ Dock EZ Port & Stow
Summary of Contents for EZ Dock EZ Port & Stow
- Page 1 Model: 206016PW-EZ Installation Instructions For questions about features, operation/performance, parts, accessories or service, call your local dealer or your nearest EZ Dock distributor at 1-800-654-8168 or +1-417-235-2223 for international customers. Additional information regarding EZ Dock products and services can be found on the internet at www.ez-dock.com...
-
Page 2: Table Of Contents
Serial Code……………………………………………………………………………………………………………………………………….13 Dear Port & Stow Customer, The EZ Dock team thanks you for your purchase. We know that you had other choices of personal watercraft ports, and we ap- preciate your decision to purchase a EZ Port & Stow. -
Page 3: Assembly, Installation, Maintenance And Safety
(for professional installation, call your local EZ Dock distributor or dealer): EZ Dock in-water installation tool (900010)(only needed for EZ Dock mounting) 1/2” drive ratchet socket set (especially 1/2”, 9/16:, 5/8”, 11/16”,15/16”... -
Page 4: Site Preparation
There are a number of anchoring/mounting methods available for use with the EZ Port & Stow. EZ Dock System mount (1a): If the EZ Port & Stow is used in conjunction with an EZ Dock system, simply use a coupler set to attach the EZ Port &... - Page 5 Torque to15 ft-lb, top of bolt should be 1/2” below top of nut. DO NOT OVER TIGHTEN THE NUT! Figure 4 Figure 5 ITEM QTY. PART NO. DESCRIPTION 15/16" SOCKET 22003 EZ DOCK COUPLER NUT RATCHET 311010 COUPLER 900005 TOOL, COMPOSITE COUPLER INSTALLATION...
-
Page 6: Anchoring With Integrated Pipe Brackets For Stand-Alone Mount
2a Anchoring EZ Port & Stow with Integrated Pipe Brackets (Stand-alone Mount) Your EZ Port & Stow comes equipped with pipe bracket fillers. These covers are located toward the front of the unit. These will need to be removed for this mounting option (see below). PVC pipe can be sleeved over steel pipe to act as a wear sleeve. -
Page 7: Hinge Kit 100750 For Floating Dock Mount
When the adapter hinge plate is securely in place, float the EZ Port & Stow into position and secure the hinge pin. Figure 9 Figure 8 ITEM QTY. PART NO. DESCRIPTION 80011 CLIP HINGE PIN #11 80580 NUT 5/8-11 LOCK S10712 EZ DOCK FLOATING DOCK ADAPTER S10713 EZ DOCK FLOATING DOCK ADAPTER S21140 CONNECTOR HARDWARE W/SS S80968SS HINGE PIN... -
Page 8: Roller Adjustment For Ez Port & Stow
Roller Adjustment for EZ Port & Stow The EZ Port & Stow comes from the factory with the rollers in their recommended roller position. For some personal watercraft (PWC) models, it may be necessary to adjust the rollers on your new EZ Port & Stow. Your EZ Port & Stow can be adjusted to fit most PWCs. -
Page 9: Porting Techniques
Porting Techniques #1 Idle Up to Port Stern Idle the nose of the watercraft to the stern roller of the EZ Port & Stow. Come to a complete stop and allow the watercraft to center itself with the keel in-line with the center of the rollers. It is not recommended or necessary to build up momentum to dock on the EZ Port &... -
Page 11: Storage Area
Storage Area Your EZ Port & Stow has a locking storage compartment. To lock or unlock your storage compartment, insert the key into the lock and turn. To open the lid, lift the latch handle and turn 90°. Pull up to open lid. Gas shocks will assist lifting the lid and hold the lid open. -
Page 12: Storage Lid Exploded Assembly
Storage Lid ITEM QTY. PART NO. DESCRIPTION 110027 NUT 5/16-18 HEX NYLOCK 18-8 SS S22015-BK LID, STORAGE COMPARTMENT S22017 LOCKING LATCH S22018 GAS SHOCK S22021 ANGLE, LATCH AND STRUT S22022 1/4 X 5/8 SCREW S40012 10-24 X 1/2" SS SCREW S40039 10-24 X 3/8"... -
Page 13: Warranty/Customer Service
EZ Dock’s exclusive obligation is to repair or replace defective ports at EZ Dock’s option. “Repair” may be limited to providing a repair kit. Shipping and installation costs related to repaired and replaced product shall be at the buyer’s expense. Repaired or replaced products are warranted only for the balance of the original limited warranty. - Page 14 The first dock of its kind...The last dock you’ll ever need www.ez-dock.com ©2007 EZ Dock, Inc. EZ Dock is a member of the PlayPower family of companies, which also includes Miracle Recreation Equipment company, PlayPower LT Farmington, Inc., SoftPlay, L.L.C., HAGS, Aqua Recreation, RSS,...
