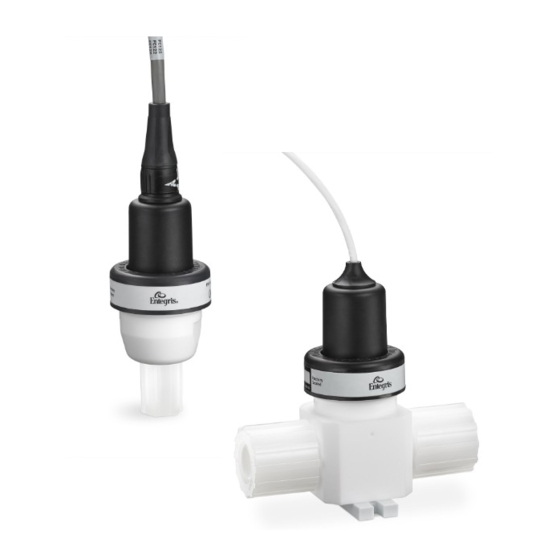

- Page 1 ® PRESSURE TRANSDUCER FOR VACUUM APPLICATIONS User Guide...
-
Page 2: Table Of Contents
Operating Environment ... 10 Process Connections ....10 Pressure Transducer Cover Assembly ..... 10 Temperature Requirements ..10 Pressure Limits ......10 Pressure Reference Accuracy ........ 10 Linear Output Signal ....11 ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300... -
Page 3: Introduction
PTFE, sapphire applications in the semiconductor or other similar high purity inert industry and are compatible with materials. highly corrosive processes. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC. -
Page 4: Ordering Information
CODE ELECTRICAL OUTPUTS 4-20 mA (12-28 VDC input) CODE PRIMARY/SECONDARY SEAL Kalrez® 4079/Viton® (default) Kalrez® 1050/Viton® Kalrez® 6375 UP/Viton® Kalrez® 4079/Kalrez® 4079 Kalrez® 1050/Kalrez® 1050 Kalrez® 6375 UP/Kalrez® 6375 UP ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300... - Page 5 CODE ELECTRICAL OUTPUTS 4-20 mA (12-28 VDC input) CODE PRIMARY/SECONDARY SEAL Kalrez® 4079/Viton® (default) Kalrez® 1050/Viton® Kalrez® 6375 UP/Viton® Kalrez® 4079/Kalrez® 4079 Kalrez® 1050/Kalrez® 1050 Kalrez® 6375 UP/Kalrez® 6375 UP Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC.
-
Page 6: Identifying Nonstandard Product Configurations
4150 product Pressure Transducers single-port line, are identified with a “P” fol- and flow-through models 4150 and lowed by a number code. 4250. Entegris also manufactures For example, part number nonstandard product to meet the 4150-030V-F02-B06-A-P04 needs of specific applications. -
Page 7: Installation
Verify that the pressure transducer and the signal cable are free from mechanical stress or excessive bend- ing from the surrounding equipment. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC. -
Page 8: Electrical Installation
NOTE: The white wire is not required, please refer to the wiring diagram below. +24 VDC Pressure transducer 4-20 mA output version no connection WHITE 4-20 mA pressure signal display BLACK or PLC ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300... -
Page 9: Power Supply Requirements
Figure 1. Power Required for a 4-20 mA Loop Operating region Power Supply Voltage Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC. -
Page 10: Load Resistance: Current Output
= maximum load Load resistance (ohms) = power supply voltage (volts) = meter resistance (ohms) meter (typically not used, therefore R = 0) meter = resistance of wire interconnecting wire ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300... -
Page 11: Unit Operation
Temperature Requirements temperature. The pressure transducer is rated for use with fluids at process temperatures between 50° to 95°F (10° to 35°C) under normal operating conditions. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC. -
Page 12: Linear Output Signal
Linear Output Signal The output signal of the NT ® Pressure Transducer is a linear function pro- portional to the applied pressure. 20 mA 4 mA -12 PSIG Full scale Pressure measurement ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300... -
Page 13: Troubleshooting
Using the battery powered current/ volt meter is an effective method to determine whether the device or the on-site data acquisition system is not functioning properly. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC. -
Page 14: Reference
6′, 12′, 30′ FEP-coated pigtail or polypropylene 3-pin connector with PVC cable Performance Specifications Reference accuracy: ±1% of span (includes linearity, hysteresis and repeatability) at 73°F (23°C) Process temperature: 50° to 95°F (10° to 35°C) ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300... -
Page 15: Certifications
NT® PRESSURE TRANSDUCER USER GUIDE Certifications CE Compliance Entegris products have been tested to various test standards required by the EMC 89/336/EEC directive. The results of this testing are on file at Entegris and are available upon request. Please contact the factory for the latest information. -
Page 16: Dimensions
PORT CONNECTION DIM A DIM B 1/4″ Flaretek® 2.90″ (73.7 mm) 0.99″ (25.2 mm) 3/8″ Flaretek® 2.90″ (73.7 mm) 1.06″ (26.9 mm) 1/2″ Flaretek® 2.90″ (73.7 mm) 1.14″ (29.0 mm) ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300... - Page 17 PORT CONNECTION DIM A DIM B 1/4″ Flaretek® 2.90″ (73.7 mm) 0.99″ (25.2 mm) 3/8″ Flaretek® 2.90″ (73.7 mm) 1.06″ (26.9 mm) 1/2″ Flaretek® 2.90″ (73.7 mm) 1.14″ (29.0 mm) Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC.
- Page 18 White Not used INLET/OUTLET PORT CONNECTION DIM A DIM B 1/4″ MNPTMALE 2.90″ (73.7 mm) 0.59″ (15.0 mm) 1/4″ FNPTFEMALE 3.24″ (82.3 mm) – 1/2″ FNPTFEMALE 3.50″ (88.9 mm) – ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300...
- Page 19 White Not used INLET/OUTLET PORT CONNECTION DIM A DIM B 1/4″ MNPTMALE 2.90″ (73.7 mm) 0.59″ (15.0 mm) 1/4″ FNPTFEMALE 3.07″ (78.0 mm) – 1/2″ FNPTFEMALE 3.33″ (84.6 mm) – Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC.
- Page 20 3.78″ (96.0 mm) 4.03″ (102.4 mm) 0.85″ (21.6 mm) 3/4″ Flaretek® 4.11″ (104.4 mm) 4.27″ (108.5 mm) 1.00″ (25.4 mm) 1″ Flaretek® 4.43″ (112.5 mm) 4.75″ (120.7 mm) 1.20″ (30.5 mm) ENTEGRIS, INC. Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300...
- Page 21 3.78″ (96.0 mm) 4.03″ (102.4 mm) 0.85″ (21.6 mm) 3/4″ Flaretek® 4.11″ (104.4 mm) 4.27″ (108.5 mm) 1.00″ (25.4 mm) 1″ Flaretek® 4.43″ (112.5 mm) 4.75″ (120.7 mm) 1.20″ (30.5 mm) Customer Service Tel. 763-502-0200 Customer Service Fax 763-502-0300 ENTEGRIS, INC.
-
Page 22: Repair And Warranty Service
S P E C I F I C A L LY D I S C L A I M E D . Repair and warranty service is available at the Entegris factory. To expedite the return and repair of the product, contact Entegris at 877-503-0200. - Page 23 . c o m Entegris ® and Flaretek ® are registered trademarks of Entegris, Inc. ® is a registered trademark of NT International, an Entegris Company . Kalrez ® and Viton ® are registered trademarks of DuPont Dow Elastomers. 2004 Entegris, Inc.
