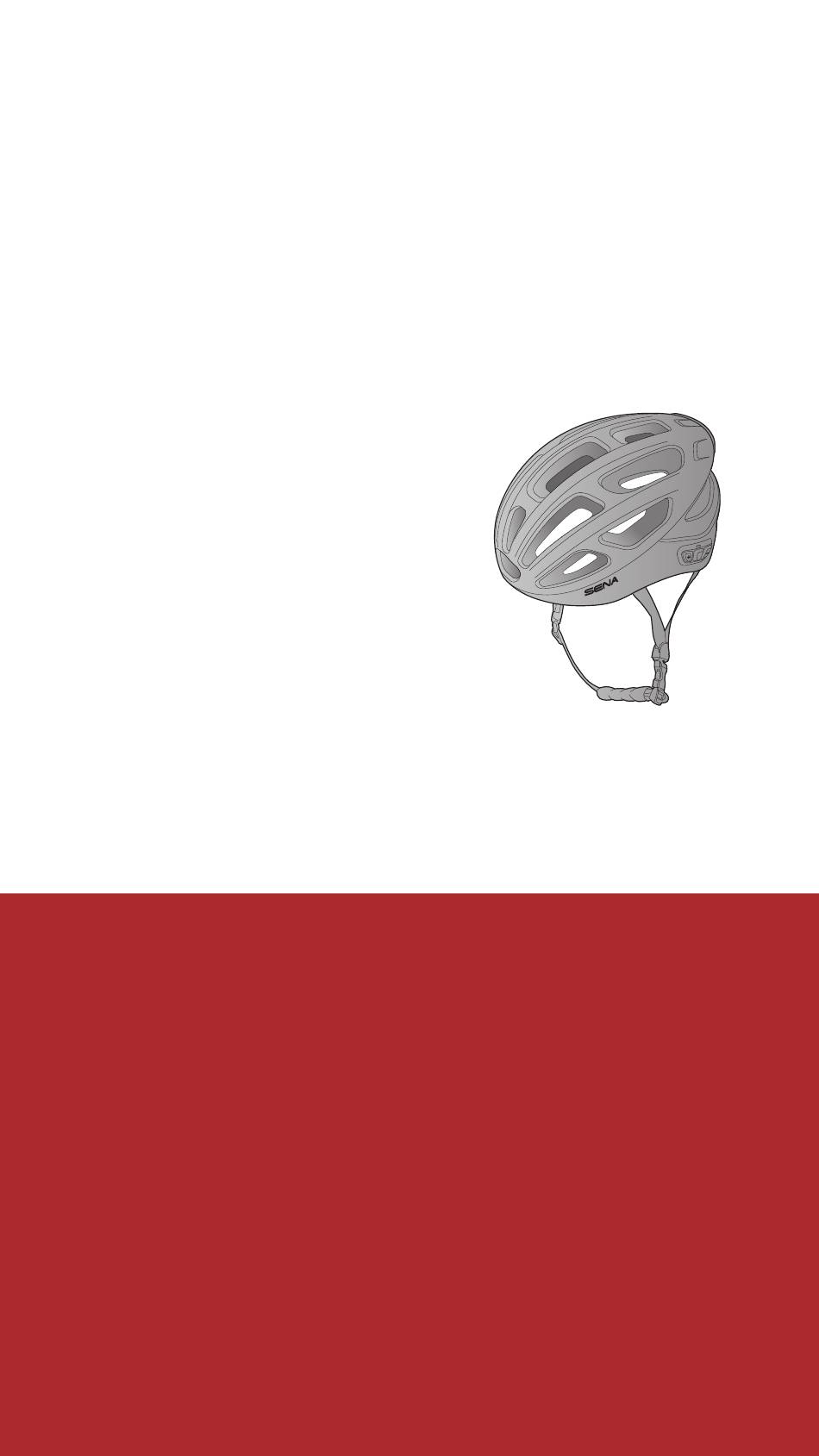

- Page 1 SENA R 1 EVO SMART CYCLING HELMET USER’S GUIDE Version 1.0.2 ENGLISH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ABOUT THE R1 EVO SMART CYCLING HELMET 5 1.1 General Information 1.2 Product Details 1.3 Package Contents 1.4 Wearing the Helmet 1.4.1 How to Wear The Helmet 1.4.2 Helmet Fitment Check 1.5 Visor Installation GETTING STARTED: BLUETOOTH SYSTEM 2.1 Downloadable Sena Software... - Page 3 7.4 Scan and Save Radio Stations 7.5 Temporary Station Preset 7.6 Region Selection VOICE COMMAND LED TAILLIGHT 9.1 Using the Voice Command 9.2 Using the SENA Button 9.3 Using the Sena Cycling App 10. FUNCTION PRIORITY AND FIRMWARE UPGRADES 10.1 Function Priority 10.2 Firmware Upgrades...
- Page 4 TABLE OF CONTENTS CONTINUED 11. CONFIGURATION SETTING 11.1 Bluetooth Configuration Setting 11.1.1 Phone Pairing 11.2 Software Configuration Setting 11.2.1 Channel Setting (Default: channel 1) 11.2.2 Voice Prompts (Default: Enable) 11.2.3 Voice Command (Default: Enabled) 11.2.4 RDS AF Setting (Default: Disable) 11.2.5 FM Station Guide (Default: Enable) 11.2.6...
-
Page 5: About The R1 Evo Smart Cycling Helmet
It is important for you to understand everything communicated in them before your first ride. If you do not, please contact your authorized Sena Retailer with any questions you may have. Failure to follow any of the provided instructions or warnings could void your warranty, and most importantly, could result in severe personal injury or death. -
Page 6: Product Details
1 ABOUT THE R1 EVO SmART CyCling HElmET 1.2 Product Details Bluetooth System's Buttons (-) Button Blue/Red/green lED lights microphone Center Button (+) Button Speakers SEnA Button Fault Reset Button DC Power Charging & Firmware Upgrade Port 1.3 Package Contents R1 EVO Helmet USB Power &... -
Page 7: Wearing The Helmet
1.4.1 How to Wear The Helmet For proper use, the helmet must sit level on the head and low on the forehead. The Sena helmet uses a simple, quick-release buckle system that, once adjusted, can be buckled and unbuckled without changing the adjustment. - Page 8 If after adjustment the helmet does not fit properly, do not use the helmet. Return it to the retailer or Sena. R1 EVO Smart Cycling Helmet | 8...
-
Page 9: Helmet Fitment Check
1 ABOUT THE R1 EVO SmART CyCling HElmET 1.4.2 Helmet Fitment Check With the retention system knob turned clockwise until comfortably tight and the chinstrap buckled under the chin and back against the throat, grab the helmet with both hands and try to remove it by rolling the helmet forward and backward as far as you can. -
Page 10: Visor Installation
1 ABOUT THE R1 EVO SmART CyCling HElmET 1.5 Visor Installation To protect your eyes from the sun or other bright lights, you can use the visor. Align the double sided adhesive tapes of the visor with the helmet and press hard to attach. -
Page 11: Getting Started: Bluetooth System
2.1 Downloadable Sena Software 2.1.1 Sena Cycling App By simply pairing your phone with your headset, you can use the Sena Cycling App for quicker and easier set up and management. • App Features: Mesh Intercom, Music, FM Radio, LED Taillight, Device settings, Quick Start Guide, and User’s Guide. -
Page 12: Button Function
2 GETTING STARTED: BLUETOOTH SYSTEM 2.2 Button Function Bluetooth System’s Buttons (-) Button Blue/Red/Green LED Lights SENA Button Center Button (+) Button 2.3 Powering On and Off Powering On Powering Off HOLD R1 EVO Smart Cycling Helmet | 12... -
Page 13: Charging
• Please make sure to take off your helmet while charging. The Bluetooth system automatically turns off during charging. • Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts. -
Page 14: Volume Adjustment
2 GETTING STARTED: BLUETOOTH SYSTEM 2.6 Volume Adjustment Volume is set and maintained independently at different levels for each audio source, even when the Bluetooth system is rebooted. Volume up Volume down R1 EVO Smart Cycling Helmet | 14... -
Page 15: Pairing The Bluetooth System With Other Bluetooth Devices
1. Press and hold the (+) Button and Center Button for 10 seconds when the R1 EVO is turned off. HOLD 2. With your mobile phone in Bluetooth-pairing mode, select Sena R1 EVO in the list of devices detected. 3. If your mobile phone asks for a PIN, enter 0000. -
Page 16: Mobile Phone Usage
4. MOBILE PHONE USAGE 4.1 Making and Answering Calls Answer a Call End/Reject a Call HOLD Make a Call with Voice Dialer HOLD R1 EVO Smart Cycling Helmet | 16... -
Page 17: Stereo Music
5. STEREO MUSIC 5.1 Bluetooth Stereo Music Play/Pause Music Volume Up/Down HOLD Next Track Previous Track HOLD HOLD R1 EVO Smart Cycling Helmet | 17... -
Page 18: Mesh Intercom
Mesh Intercom allows riders to connect and communicate with nearby users without the need to pair each headset together. The working distance between each R1 EVO in Mesh Intercom can be up to 900 meters (0.5 miles) in open terrain. In open terrain, the Mesh can be extended up to 3.6 km (2.0 miles) between a minimum of 6 users. -
Page 19: Starting Mesh Intercom
6 MESH INTERCOM 6.2 Starting Mesh Intercom When Mesh Intercom is enabled, the R1 EVO will automatically connect to nearby R1 EVO users and allow them to talk to each other by pressing the Center Button. Mesh Intercom On Mesh Intercom Off “Mesh intercom on”... - Page 20 • If you do not press any button within for approximately 10 seconds in a specific channel, the channel will be automatically saved. • The channel will be remembered even if you turn off the R1 EVO. R1 EVO Smart Cycling Helmet | 20...
-
Page 21: Using The Fm Radio
Navigate through Preset Stations HOLD 7.3 Seek and Save Radio Stations Seek Stations Forward Seek Stations Backward Save Stations You can save current station from the Sena Device Manager or the Sena Cycling App. R1 EVO Smart Cycling Helmet | 21... -
Page 22: Scan And Save Radio Stations
Stop Scanning HOLD HOLD Save Stations You can save current station from the Sena Device Manager or the Sena Cycling App. 7.5 Temporary Station Preset The Temporary Preset feature automatically finds and saves the nearest 10 radio stations without changing your existing preset stations. The temporary preset stations will be cleared when the Bluetooth system reboots. -
Page 23: Voice Command
“Taillight” Next track (music) / next “Next” preset (FM radio) Previous track (music) / “Previous” Music / previous preset (FM radio) FM Radio Stop music / FM radio “Stop” Turn on/off LED “Taillight” R1 EVO Smart Cycling Helmet | 23... - Page 24 Note: Voice command performance may vary based on the environmental conditions including riding speed, helmet type and ambient noise. To improve the performance, minimize wind noise on the microphone by using a large microphone sponge and closing the visor. R1 EVO Smart Cycling Helmet | 24...
-
Page 25: Led Taillight
LED On and Solid Night Flash Day Flash LED Off Note: Do not tap the button continuously. 9.3 Using the Sena Cycling App You can control the LED Taillight through the Sena Cycling App. R1 EVO Smart Cycling Helmet | 25... -
Page 26: Function Priority And Firmware Upgrades
10.2 Firmware Upgrades The Bluetooth system supports firmware upgrades. You can upgrade the firmware using the Sena Device Manager. Please visit sena.com to check for the latest software downloads. Click Here to Visit sena.com R1 EVO Smart Cycling Helmet | 26... -
Page 27: Configuration Setting
Bluetooth Configuration Setting Accessing the Configuration Navigating Between Menu Menu Options HOLD Execute Menu Options Bluetooth System Configuration Menu Voice Configuration Menu Tap the Center Button Phone Pairing Execute Factory Reset Execute Exit Configuration Execute R1 EVO Smart Cycling Helmet | 27... -
Page 28: Phone Pairing
3. If your mobile phone asks for a PIN, enter 0000. 11.2 Software Configuration Setting You can change the settings of the headset through the Sena Device Manager or the Sena Cycling App. 11.2.1 Channel Setting (Default: channel 1) If the Mesh Intercom communication experiences interference because other groups are also using the channel 1, change the channel. - Page 29 If this feature is enabled, you can hear what you are speaking during an intercom conversation or a phone call. 11.2.7 Advanced Noise Control™ (Always on) The background noise is reduced during an intercom conversation. R1 EVO Smart Cycling Helmet | 29...
-
Page 30: Troubleshooting
When the Bluetooth system is not working properly, you can easily reset the unit: 1. Locate the pinhole reset button below Sena logo at the back side of the helmet. 2. Gently insert a paper clip into the hole and press and Fault Reset Button for 1 second with light pressure. -
Page 31: Maintenance And Care
The protective capability of your helmet will diminish over time, dependent upon many factors such as dents, dings, and exposure to pollution, harmful chemicals and long term exposure to the sun. Sena recommends that helmets be replaced after five years. - Page 32 ® Hero3 and Hero4 allowing for Bluetooth capabilities. The Bluetooth word mark and logos are owned by the ® Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone and iPod touch are registered ®...
Need help?
Do you have a question about the R1 EVO and is the answer not in the manual?
Questions and answers
When charging my helmet how do I know when fully charged. Light goes from red to blue
To check if the Sena R1 EVO helmet is fully charged, turn it on and press the volume up button and the power button simultaneously for one second. The indicator light will blink in a sequence: a long blue blink, a short blue blink, followed by red blinks, and then another blue blink. If the red light blinks four times between the blue blinks, the helmet is fully charged.
This answer is automatically generated
My battery isnt charging. How do I recharge the battery.
The Sena R1 EVO helmet takes 2 hours to fully charge. However, the specific charging method is not mentioned in the provided context.
This answer is automatically generated
My R1 battery will not charge. I have two of these helmets, with the same problem. Maybe it's because we live in Colorado and they sat idle for several months. On a charger the light starts out red, then turns to blue. When I unplug from the charger the light goes off and the helmet is electrically dead. Online descriptions of how to replace a battery do not describe where the compartment is, and I've pulled back the entire liner. I cannot find any compartment with screws. One online writer said it is glued in. Another said pry open the control module. This appears to be a common problem. Is there no way to simply replace a battery on a $150 helmet?
