- Page 1 POLE INSTALLATION MANUAL USER MANUAL View this manual online www.v2charge.com/man...
- Page 2 V2C bears the CE mark. The corresponding Declarations of Conformity are located at V2C. This product meets the requirements of the ROHS Directive (2011/65/CE). The corresponding Declarations of Conformity are located at V2C. Disposal Information The above symbol, the crossed-out trash container, indicates that electric...
- Page 3 INSTALLATION OF THE CHARGING POINT ..............10 ELECTRICAL CONNECTION …………………………………………………………………………………….. 11 Dear customer, V2C team wants to thank you for buying one of our electric vehicle charging box. Our passion in design and innovation makes our charging points leaders in technology and design.
- Page 4 ¡¡WARNING!! Not observing the safety instructions can result in risk of death, injuries and damage to the device! V2C assumes no liability for claims resulting from this! • Electrical hazard / fire hazard! Never use damaged, worn or dirty charging plugs. The first time tuning on the electrical charging station must be carried out exclusively by competent and qualified technical personnel, fully responsible for compliance with the installation regulations and existing standards.
-
Page 5: About This Manual

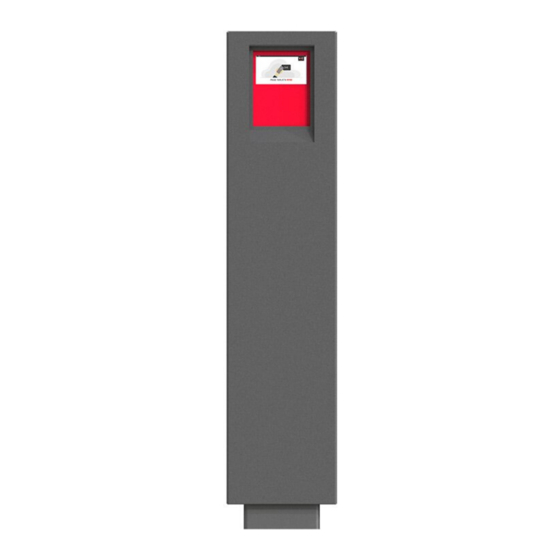

INTENDED USE POLE is a "charging station" for the indoor and outdoor area at which electrically operated vehicles can be charged (e.g. electric automobiles). The electric charging station has been designed for being built in a wall. The respective national regulations must be observed with regard to the installation and connection of the charging station. - Page 6 VERSIONS 1350 mm 250 mm 230 mm MODEL INTENSITY ELECTRIC POWER MAXIMUM POWER SUPPLY POWER 1 X SOCKET 6-32 Amp 1x Up to 22 kW 3F+N+TT 22 kW 2 X SOCKET 6-32 Amp 2x Up to 22 kW 3F+N+TT 44 kW...
-
Page 7: Using The Charging Station
USING THE CHARGING STATION 4.1 ELECTRIC CHARGING BOX WITH CABLE 1. Switch on the charging box (Normal operation of the charging point: always activated) 2. The charging box will start a self-test mode for a few seconds. Immediately, the backlight will turn green. -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE - SOLUTION • No voltage supply. LED does not light up • Check the residual current circuit-breaker and the thermal breaker and, if necessary, connect them. • Faulty: contact your service representative. The plug is not plugged in properly: •Pull out the plug and insert it again. -
Page 9: Instructions For Electrical Connection
to prevent reduction of the charging current or interruption of the charging due to excessive temperatures of the charging station components. • Do not install the charging station in places where objects could fall and damage the equipment. If you think that a vehicle may hit the charging station, install protective barriers. •... - Page 10 CHARGE AMPS SELECTION The vehicle will charge at that recharging speed or at a lower speed depending on the maximum recharging capacity of the vehicle and the percentage of load it is in. The maximum speed selected must be in accordance with the installation performed. An electrical specialist technician must select the circuit breaker you need to install and the supply...
-
Page 11: Single-Phase Connection
ELECTRICAL CONNECTION It is recommended if the installed pipe enter 15 cm inside the post to prevent water from entering the canalization. The electrical connection is made from only one point through Grey colored terminal blocks. These terminal blocks are unique and supply power to all the sockets at the recharging point. SINGLE-PHASE CONNECTION. - Page 12 www.v2charge.com...
