Summary of Contents for Microlene W10PR

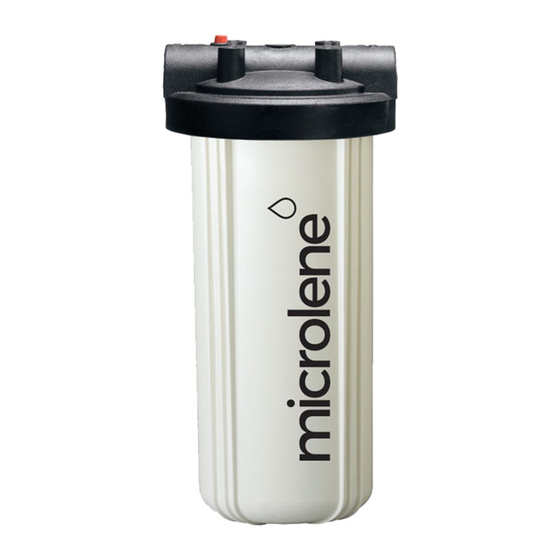

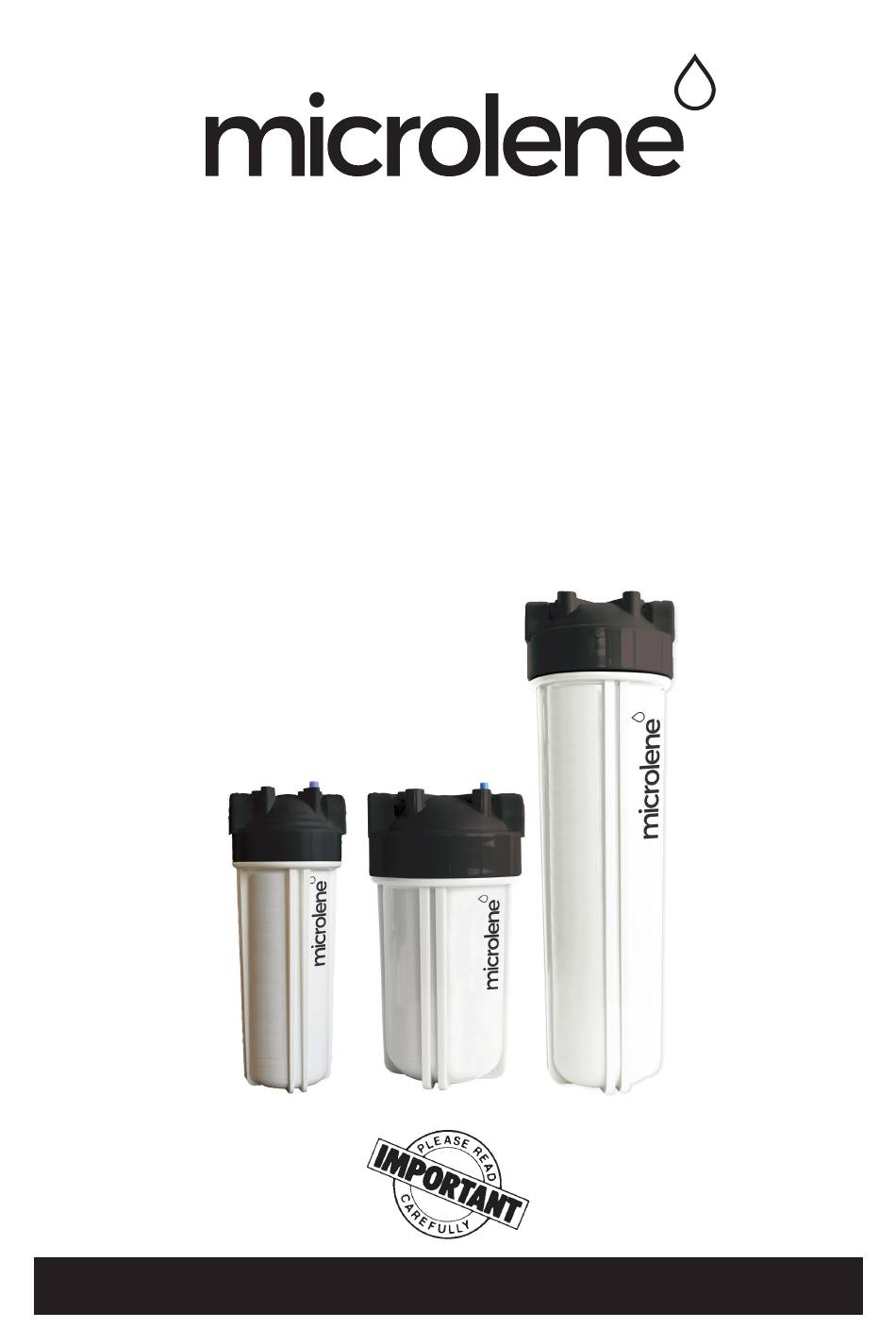

- Page 1 Filter Housings Installation and Operating Instructions Models: W10PR, W10J25MM, W20J25MM Please pass these instructions on to the operator of this equipment.
- Page 2 Nominated Max. Model No. Description Temperature Rating BSP (Female parallel) Working Pressure 10" Standard Filter Housing (includes 3/4" W10PR spanner, mounting bracket and fixings) (20mm) Working: 0 - 40ºC 10" Jumbo Filter Housing (includes W10J25MM 860kPa spanner, mounting bracket and fixings) Ambient: 1"...
-
Page 3: Special Notes
Special Notes: • For cold water use only. • Do not install where system will be exposed to direct sunlight. • Make certain that installation complies with all state and local laws and regulations. • The contaminants or other substances removed or reduced by the selected cartridge are not necessarily in your water. -
Page 4: Typical Installation
Typical Installation Mounting Bracket (included in W10PR, W10J25MM, W20J25MM & W20J40MM) Shut Off Valve Pressure Nipple Nipple Connecting (WaterMark Limiting Pipework Approved) Valve WHERE WATER PRESSURE EXCEEDS 500kPa. a WATERMARK approved PLV* SHOULD BE FITTED TO INLET * Pressure Limiting Valve NOTE: Installation of a backflow valve should be in compliance with all local water authority regulations and in accordance with AS/NZS 3500.1.2 and complying with AS/NZS 2845.1. - Page 5 For installation on galvanised, copper or plastic pipe. Style of fittings may vary from those shown, depending on type and size of pipe. • Use only plumber tape for fitting housing connections. • Install filter cartridge in filter housing according to the filter cartridge replacement instructions (below) before proceeding with installation.
-
Page 6: Filter Cartridge Replacement
Flush cartridge for 5 minutes before use. Flush again for 10 minutes before using water. Check for leaks before leaving installation. To maintain performance, Australian Standards and warranty, cartridges and replacement cartridges must be WaterMark certified. Contact Microlene for further advice. -
Page 7: Troubleshooting
Turn on water supply. If leaks persist, or if there are other leaks on the system, turn off water supply. Contact your nearest Microlene Dealer for advice. Maintenance Filter housings must be maintained according to manufacturer’s instructions, including ongoing replacement of the filter cartridge. - Page 8 Microlene Warranty Davey Water Products come with guarantees that cannot be excluded under the local country Law. Davey Water Products Pty Ltd (Davey) of 6 Lakeview Drive Scoresby VIC 3179 provides the following warranty in relation this product. Davey warrants that, subject to the exclusions and limitations below, the product will be free from defects in material and workmanship.
- Page 10 Filter Housings Installation and Warranty Instructions Models: W10PR, W10J25MM, W20J25MM P/N 402426-2...
