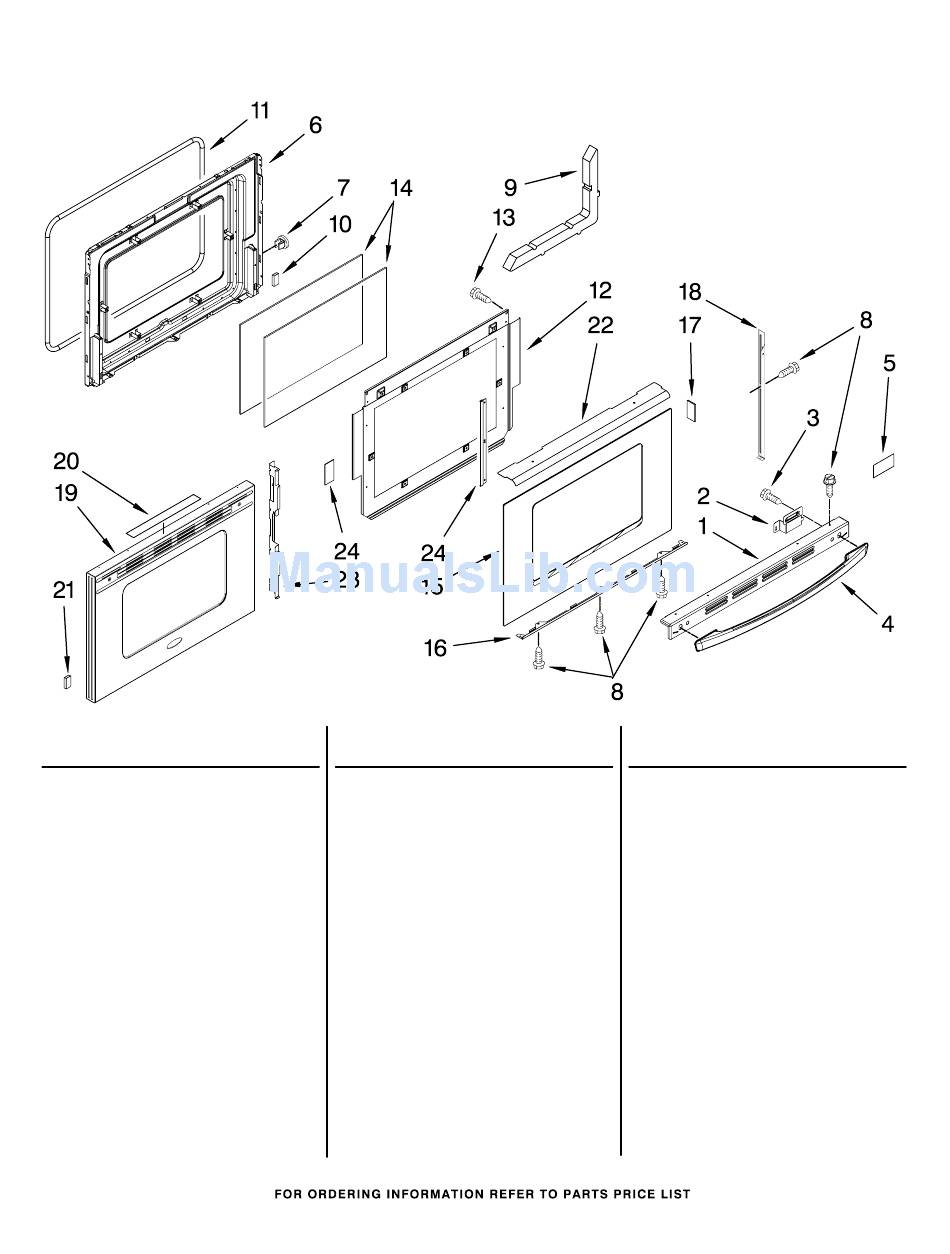

Door Parts - Whirlpool GW397LXUB0 Parts List

For Models: GW397LXUB0, GW397LXUQ0, GW397LXUT0, GW397LXUS0
Illus. Part
No. No. DESCRIPTION
1 Trim, Door Top
W10165729 Black
W10165726 White
W10177497 Biscuit
2 Bracket, Handle
74009698 Right
74009699 Left
3 74002979 Screw
74006635 (S.Steel Mdl Only)
4 Handle, Door
W10118431 Black
W10118430 White
W10118432 Biscuit
W10144883 S.Steel
5 8303810 Nameplate
6 74011456 Liner, Door
7 74001574 Nut, Snap (4)
8 Screw, Trim
74009539 Black
74009540 White
74009541 Biscuit
74009268 S.Steel

DOOR PARTS

(Black) (White)
Illus. Part
No. No. DESCRIPTION
9 Insulation, Door
74003647
74010043 (S.Steel Mdl Only)
10 74005546 Spacer
11 7201P046−60 Seal, Door
74009029 (S.Steel Mdl Only)
12 74011457 Baffle, Retainer
13 74001530 Screw
14 Glass, Inner (2)
74003645 Clear
74010231 Coated
15 Glass, Includes
Glass, Tape & Logo
W10170229 Black
W10170228 White
W10170230 Biscuit
16 Trim, Door Bottom
74009686 Black
74009687 White
74009688 Biscuit
2
(Biscuit) (S.Steel)
Illus. Part
No. No.
17
74003664 Foil
74004224 White
W10168886 Protective
18
74009693 Black, Left
74009695 White, Left
74009697 Biscuit, Left
74009692 Black, Right
74009694 White, Right
74009696 Biscuit, Right
19 W10179679 Panel,Oven Dr(SST)
20 74011048 Insulation, Foil
21 7112P034−60 Clip, Glass
22 74011049 Shield, Door
23 74011050 Retainer, Glass
24 74011458 Bracket, Glass
DESCRIPTION
Tape
Trim, Door Side
(S.Steel Mdl)
(S.Steel Mdl)
(S.Steel Mdl)
W10177387
