Manual for Professional
Installers

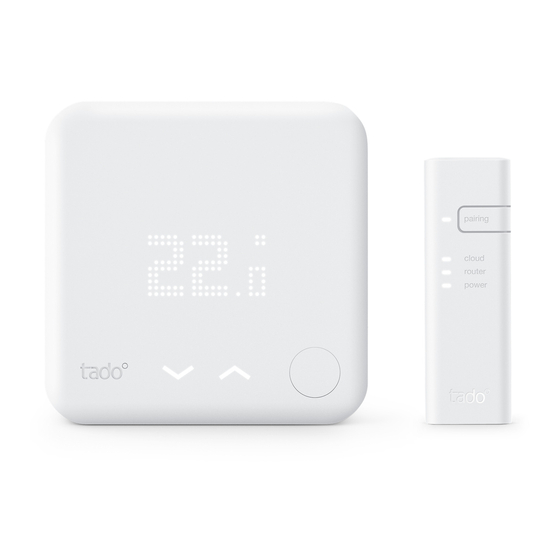

For the Starter Kit - Wireless Smart Thermostat V3+
English International
This manual is meant exclusively for professional installers. It includes generic instructions to install the Wireless
Receiver and the Wireless Temperature Sensor.
Manual version 3.2
DIY Installation
If you are not a professional installer, please download the tado˚ app. There you will find specific installation instructions.
EN
DE
IT
ES
FR
NL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for tado° Wireless Smart Thermostat V3+
Summary of Contents for tado° Wireless Smart Thermostat V3+
- Page 1 Manual for Professional Installers For the Starter Kit - Wireless Smart Thermostat V3+ English International This manual is meant exclusively for professional installers. It includes generic instructions to install the Wireless Receiver and the Wireless Temperature Sensor. Manual version 3.2 DIY Installation If you are not a professional installer, please download the tado˚...
- Page 2 1. Install the Internet Bridge A. Connect the Internet Bridge to the router. B. Press and hold the pairing button until the pairing LED If no free USB port is available on the router, use the starts blinking. included 5V power adapter. Blinking Solid on 2.
- Page 3 3. Mount tado˚ devices A. Mount the Wireless Temperature Sensor to the wall B. Mount the Wireless Receiver to the wall using the using the included screws or the adhesive pads. included screws. Don‘t plug in to power until the cover is on. Click Extra information: Wireless Receiver Symbols Power supply...
- Page 4 4. Wire the Wireless Receiver Check the boiler manual before Caution! Always use the included strain wiring. Identify the control interface and Turn OFF the power reliefs and position them on the before wiring! outer insulation layer of the cable. check if it is supported by tado ̊...
- Page 5 Digital Manufacturer Control interface Config. Hot Water tado˚ terminals Menu ID control Various Opentherm OT(-) OT(+) Vaillant, Glowworm, Vaillant-e-Bus * eBUS(-) eBUS(+) Heatline, Saunier Duval, Vaillant-e-Bus* eBUS(-) eBUS(+) AWB, Bulex, Hermann (with VRC 430/470) Junkers, Worcester, e.l.m. HT-Bus** leblanc, Bosch Buderus, Nefit, Sieger, EMS-Bus** EMS (1)
- Page 6 Analog Manufacturer Control interface Config. Hot Water tado˚ terminals Menu ID control Junkers Junkers 1-2-4 24V Vaillant Vaillant 7-8-9 24 V Wolf Wolf 1-2-3 24V Common terminal labels on the boiler.
- Page 7 5. Pair the Wireless Receiver A. Put the cover on the B. Plug in the power C. Wait 30 sec, then press D. Solid on indicates device. Tight the housing supply cable and turn the the button for 3 sec to successful pairing.
-
Page 8: Test The System
Boiler Configuration ONLY for Viessmann KM-Bus Controller Heating system parameter Heating system setting 90: Time constant for calculating the adjusted outside temperature A0: Remote Control 1 (or 2) Vitotronic 200 /300 b0: Room Temperature Hook-up (GW..., HO..., KW..., b2: Room Influence Factor 64 (or 31) KO...) b5: Heating Circuit Pump Logic...
