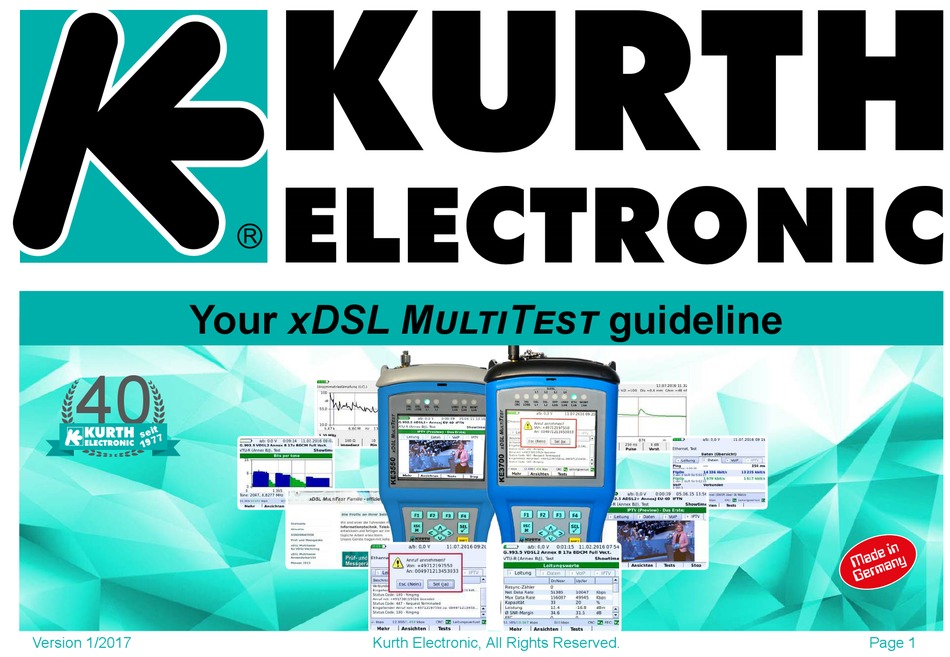

Your xDSL MultiTest guideline

Version 1/2017

Page 1

Need help?

Do you have a question about the xDSL MultiTest KE3700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kurth Electronic xDSL MultiTest KE3700

Page 2 WXYZ Help button: Open the help function HELP ON / OFF button PQRS PQRS WXYZ ON-OFF WXYZ HELP HELP ON-OFF ON-OFF Microphone (Telephony) Alphanumeric keypad xDSL test port, power supply connection Version 1/2017 Kurth Electronic, All Rights Reserved. Page 2...
Page 3 (device bottom) Device bottom xDSL test connections: RJ11 / RJ45 External power cable connection 12-18V/DC 12-18V/DC xDSL Test Port xDSL Test Po r t xDSL Test Port USB 3 Version 1/2017 Kurth Electronic, All Rights Reserved. Page 3...
Page 4 Alternate device upper side Alternate device upper side ETH 1 ETH 2 USB 2 USB 2 1000 Mb 100 Mb 1000 Mb 1000 Mb/MGMT Management POTS ISDN-U connection ISDN-S SHDSL SHDSL connection Version 1/2017 Kurth Electronic, All Rights Reserved. Page 4...
Page 5 USB 2 ETH 1 ETH 2 1000 Mb 1000 Mb/MGMT update with a slotted SFP module! RJ45 – S connection POTS ISDN-U ISDN-S – Analogue telephone connection (POTS) RJ11 – U connection Version 1/2017 Kurth Electronic, All Rights Reserved. Page 5...
Page 6 Warning: Insert/remoce SD card only when the device is powered off! KECT connection for copper tests line 1 and line 2 for 2x screened measuring lines with 3-pin TF connector on the device side Version 1/2017 Kurth Electronic, All Rights Reserved. Page 6...
Page 7 → Correct input → Test not possible tests and furthermore indicate missing settings. Attention: Red background = input / verification absolutely The tests are activated through necessary! the left/right keys on the device. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 7...
Page 8 Multitasking and 1-click-operation Multitasking and 1-click-operation Quick transition between views and tests with function keys F1 – F4 Version 1/2017 Kurth Electronic, All Rights Reserved. Page 8...
Page 10 KE3700 also in fiber menu. for VoIP or an IPTV set- holder. optic environments. top box including Setting VLAN as well as TV picture. VPI and VCI. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 10...
Page 11 Recommendation: Ping press „1“ or „Start“ to VPI: 1 / VCI: 32 Design Interface „Ja“ → test as well as FTP up- start measurement. IPoE → DHCP... and download-test. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 11...
Page 13 DSLAM Information exchange connection/synchroni- recieved at the far end. and training phase. zation. The connection between the DSLAM and the test device has been successfully esta- blished. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 13...
Page 14 ADSL, VDSL and VDSL vectoring) Turn on device → Broadband → Terminal Mode → Press START Important info at a glance: DSL type and Annex/variant Bandplan/Profile External voltage Net data rate SNR margin Version 1/2017 Kurth Electronic, All Rights Reserved. Page 14...
Page 15 Individual views are also succeeded with IPv4 / 1. line, 2. data, 3. VoIP available. IPv6 info as well as new and 4. IPTV status bar for the current connection. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 15...
Page 16 In the example: 3.4 to 4.4 Mbps upload loss and transmission (destination host). 5 parallel downloads speed. times In the example: with an average rate www.t-online.de of 47 Mbps. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 16...
Page 18 External voltage Connection to SIP server Voice connection (acoustic) MOS value Functional testing and qualification of the VoIP service Package loss Quality assessment based on the most important parameters Delay time Version 1/2017 Kurth Electronic, All Rights Reserved. Page 18...
Page 19 KE3700 broadband menu SFP KE3700 broadband menu SFP Broadband menu for tests at the optical port SFP level measurement, terminal and modem mode (conv.) Version 1/2017 Kurth Electronic, All Rights Reserved. Page 19...
Page 20 KE3700 broadband menu ethernet KE3700 broadband menu ethernet Broadband menu for tests at the ethernet port Terminal mode for IP test data, VoIP and IPTV Version 1/2017 Kurth Electronic, All Rights Reserved. Page 20...
Page 21 SIP telephone whether to use DHCP or mode is selected for the for VoIP or an IPTV set- fixed IP address range. IP tests. top box including VLAN setting possible. TV picture. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 21...
Page 22 (Router). tests. Recommendation: press „1“ or „Start“ to LAN port of the KE3x00! Ping test as well as FTP start measurement. IP via DHCP up- and download tests Version 1/2017 Kurth Electronic, All Rights Reserved. Page 22...
Page 24 TX = sent bytes than allowed) and In the example IPv4 Data rate, packets and are displayed Jabber (interrupt with 192.168.2.103. data volume are procedure for stations that displayed. are too long). Version 1/2017 Kurth Electronic, All Rights Reserved. Page 24...
Page 25 VoIP of approx. 47 Mbps. and an upload of about 0%, otherwise repeat test and one IPTV test. 20% with an average of the test! approx. 3 Mbps. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 25...
Page 26 KE3x00 ISDN menu KE3x00 ISDN menu Telephony menu for tests at telephone connections ISDN UK (before NTBA), S (after NTBA) and analogue Version 1/2017 Kurth Electronic, All Rights Reserved. Page 26...
Page 28 Coppertest menu cable parameters Coppertest menu cable parameters Coppertest menu for cable measurement for suitability and errors Select cable parameters or edit them manually Version 1/2017 Kurth Electronic, All Rights Reserved. Page 28...
Page 29 Coppertest menu autotest Coppertest menu autotest Coppertest menu for cable measurement for suitability and errors Select defined autotest or edit a new test Version 1/2017 Kurth Electronic, All Rights Reserved. Page 29...
Page 30 Coppertest menu DMM Coppertest menu DMM Coppertest menu for cable measurement for suitability and errors Line multimeter for testing external voltage etc. Version 1/2017 Kurth Electronic, All Rights Reserved. Page 30...
Page 31 Coppertest menu HF measurement Coppertest menu HF measurement Coppertest menu for cable measurement for suitability and errors RF measurement for evaluation of the transmission quality and detection of interferences Version 1/2017 Kurth Electronic, All Rights Reserved. Page 31...
Page 32 Coppertest menu TDR measurement Coppertest menu TDR measurement Coppertest menu for cable measurement for suitability and errors TDR measurement for meter-accurate localization of cable errors and damage Version 1/2017 Kurth Electronic, All Rights Reserved. Page 32...
Page 34 Kurth Electronic GmbH Phone + 49(0)7121 97550 Muehleweg 11 + 49(0)7121 975556 72800 Eningen u.A. E-Mail info@kurthelectronic.de Germany www.kurthelectronic.de Version 1/2017 Kurth Electronic, All Rights Reserved. Page 34...
